Chapter 1: Product Introduction
1-8

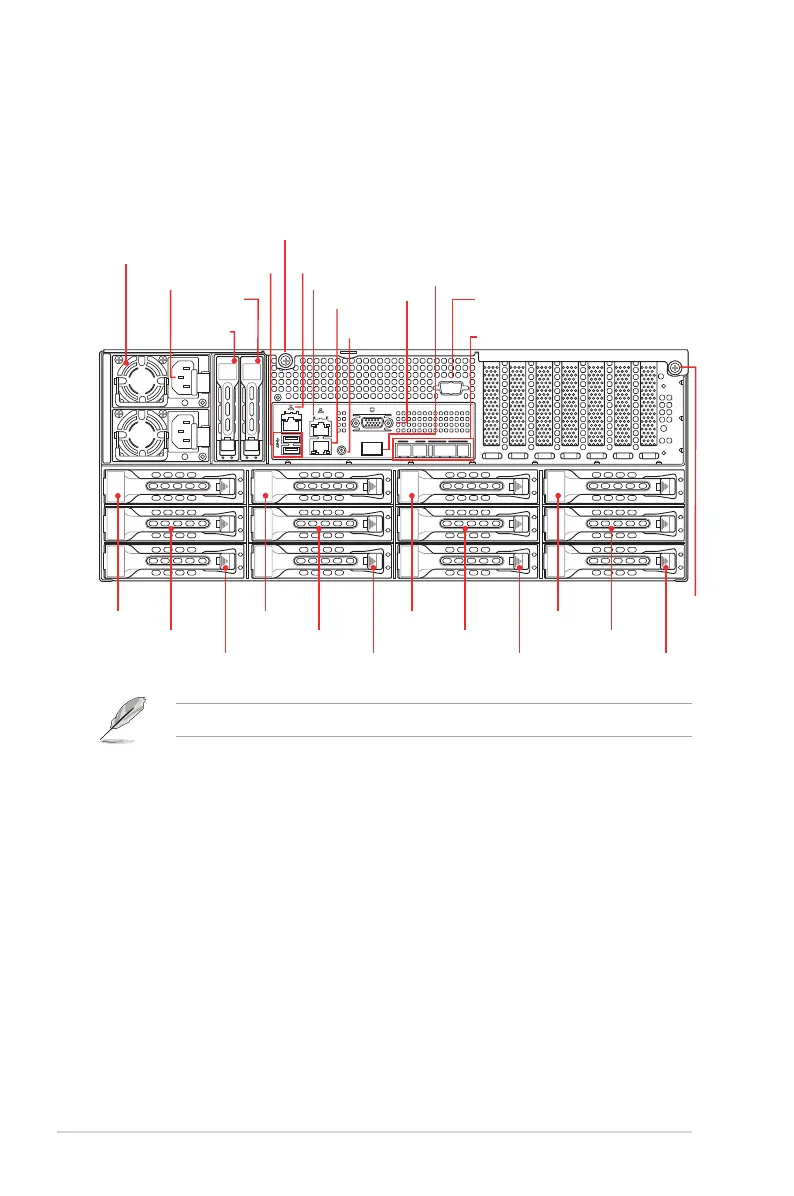

1.5 Rear panel features
The rear panel includes the expansion slots, system power sockets, and rear fans. The I/O
shields with openings for the rear panel connectors on the motherboard are also placed in the
rear panel.
* This port is for ASUS ASMB9-iKVM controller and for technicians only.
Power connector
Redundant Power
Supply
Rear
Thumb
Screw
Mezzanine 10G dual/quad-port LAN card
(optional)
VGA port
Serial port (optional)
2.5-inch
Bay 1
USB 3.1
Gen 1 ports
2.5-inch
Bay 2
Bay 1 Bay 2 Bay 3 Bay 4
Bay 5 Bay 6 Bay 7 Bay 8
Bay 9 Bay 10 Bay 11 Bay 12
DM management
LAN port*
Rear Thumb Screw
LAN port 1
Power On
button
LAN port 2
Q Code/
Port 80
