Chapter 1: Product Introduction
1-10

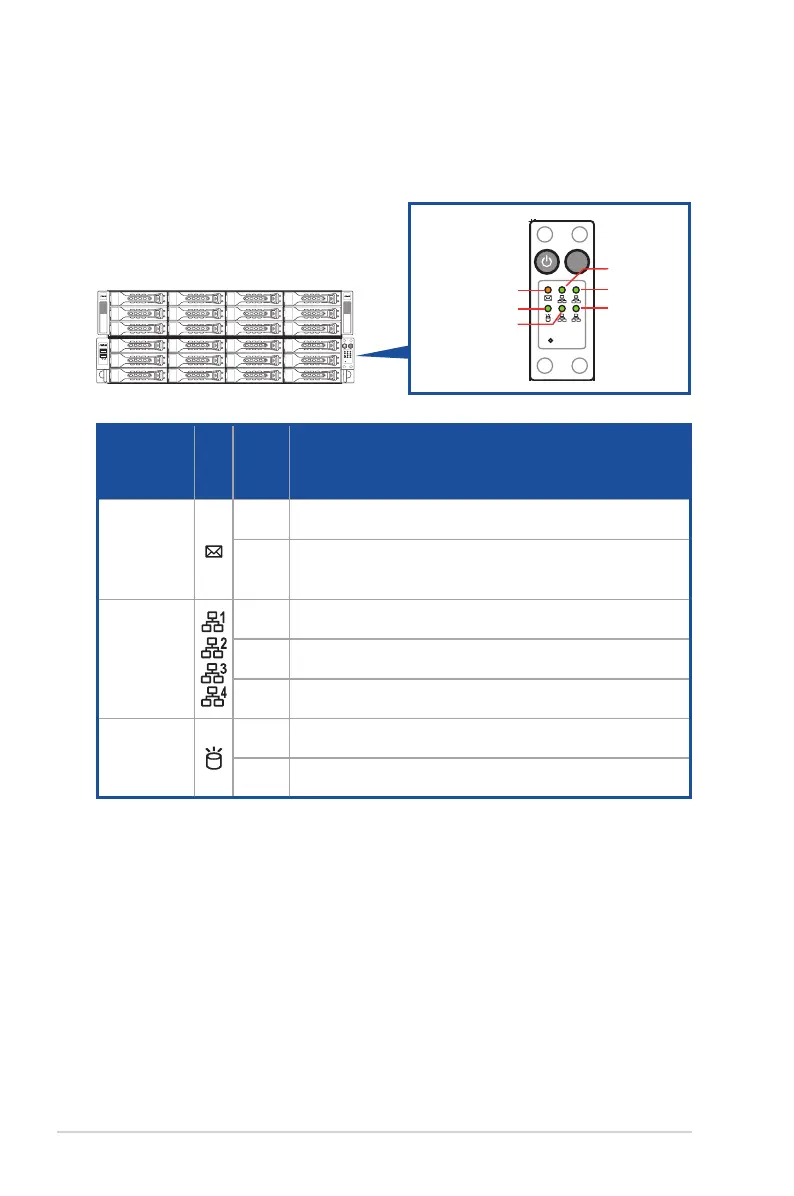

1.7 LED information
1.7.1 Front panel LEDs
LED Icon
Display
status
Description
Message LED
OFF System is normal; no incoming event
ON
1. Without ASMB9-iKVM installed: CPU over-heated
2. With ASMB9-iKVM installed: a hardware monitor event is
indicated
LAN LEDs
OFF No LAN connection
Blinking LAN is transmitting or receiving data.
ON LAN connection is present
Storage
Device
Access LED
Green Data is being read/written into the storage device.
OFF Storage device failure or no storage device is installed
1
3 4
2
RESET
ID
1
3 4
2
RESET
ID
Message LED
LAN2 LED
LAN4 LED
LAN3 LED
LAN1 LED
HDD Access LED
