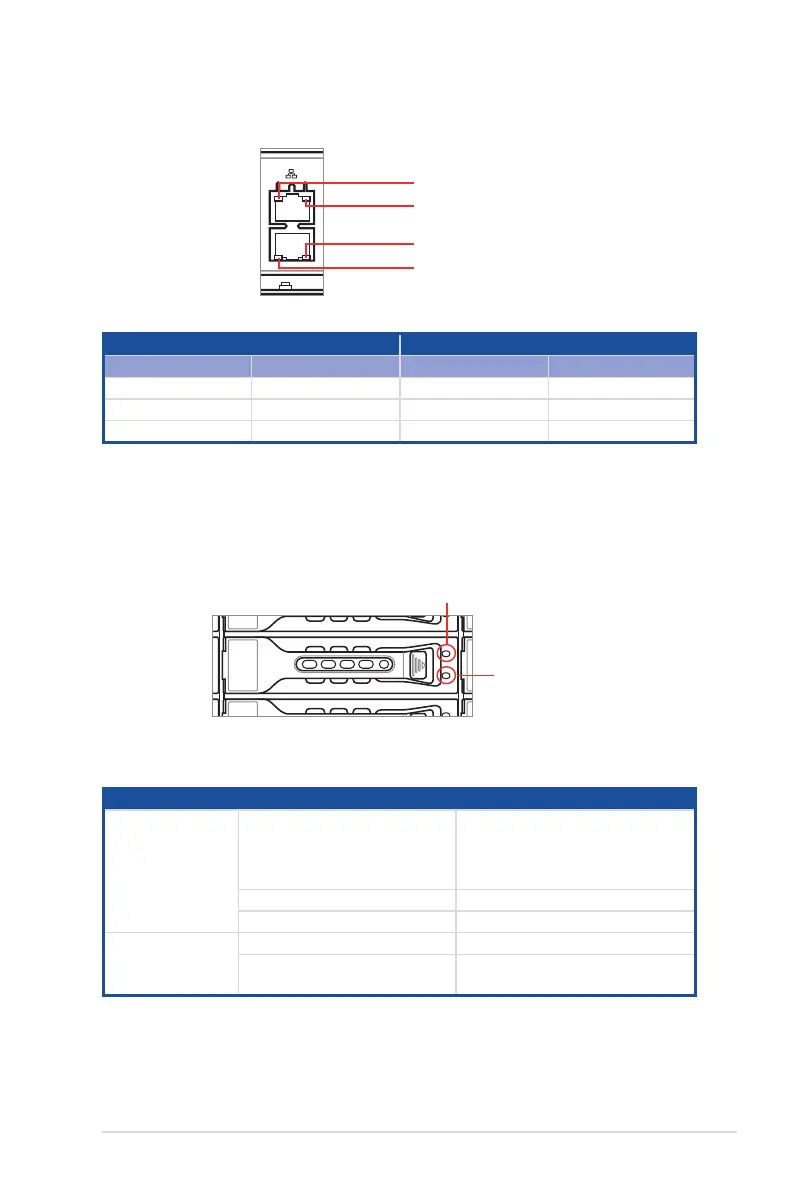

1.7.2 LAN (RJ-45) LEDs
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
GREEN Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
1.7.3 Bay status LED
Storage device activity LED
Storage device status LED
HDD LED Description
Storage Device
Status LED
RED
RAID disk has failed and should
be swapped immediately (Error
detected in the installed storage
device)
Blinking RED RAID rebuilding
OFF No storage device installed
Storage Device
Activity LED
GREEN Power ON (storage device detected)
Blinking GREEN
Read/write data from/to storage
device
SPEED LED
ACT/LINK LED
SPEED LED
ACT/LINK LED
1234
Front panel
