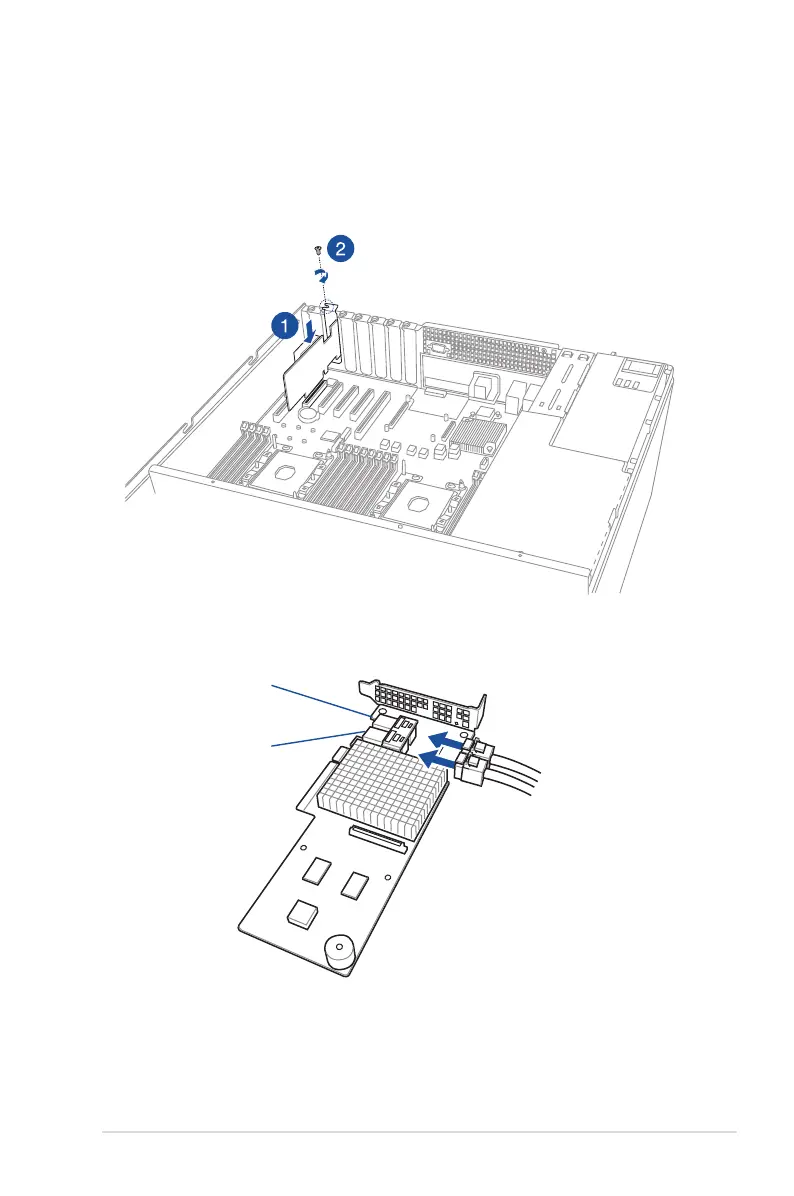

3. Connect the two mini-SAS HD cables to the ASUS PIKE II card.
connector 1
connector 2
To install an ASUS PIKE II card when 2 (two) CPUs are installed:
1. Insert the expansion card into the PCIE1 slot. Ensure that the golden ngers are totally
inserted into the slot.
2. Secure the ASUS PIKE II card with a screw and reinstall the bracket.
