Asus RS540-E9-RS36-E - Page 50

Chapter 2: Hardware Information
2-28
BP12EX12G-35-R2DF
®

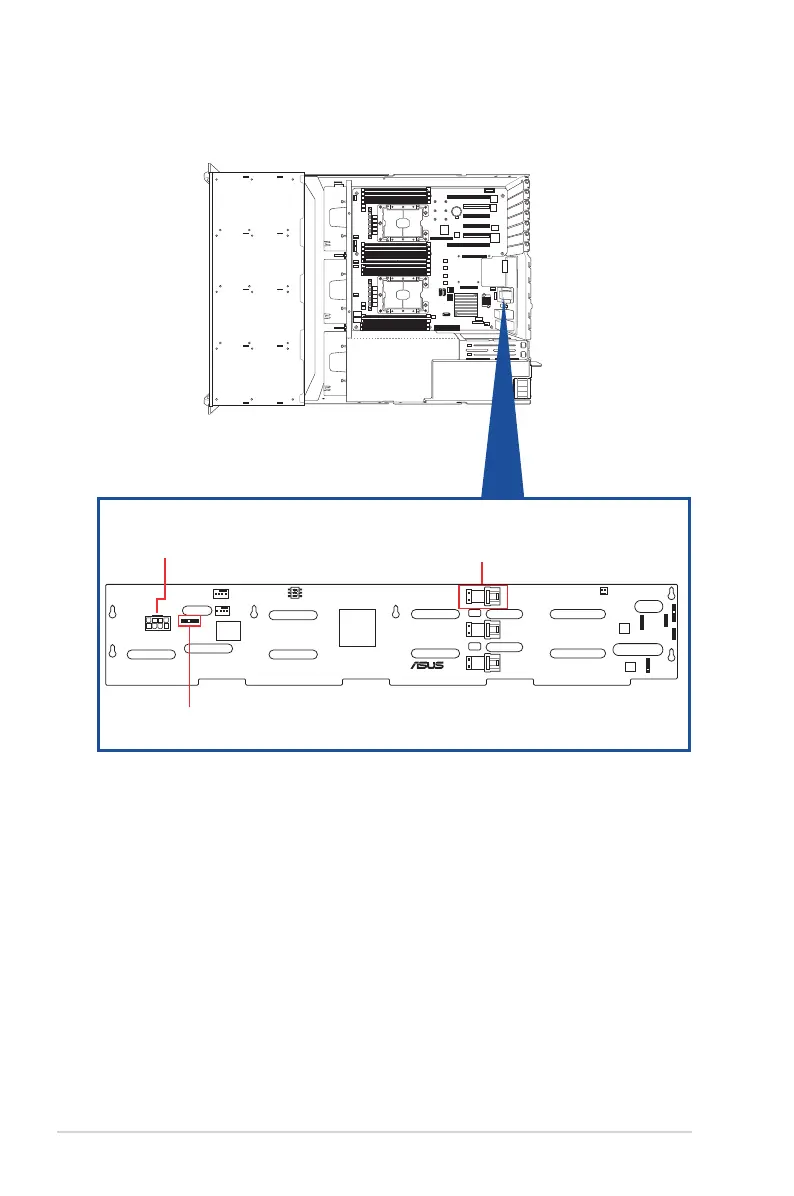

Back backplane
connect to the 8-pin
power connector
connect to MSAS_HD3 connector on the front backplane. When
connected, a total number of 36 SAS/SATA HDDs can be supported
(SAS/SATA expander on the rear panel).
MSAS_HD1
MSAS_HD2
MSAS_HD3
BPSMB2: connect to the BPSMB1(6-1 pin BPSMB1) connector on the front backplane
