Preamble
UM-23100B-U User manual ATEQ F CLASS Page 5/90
PREAMBLE

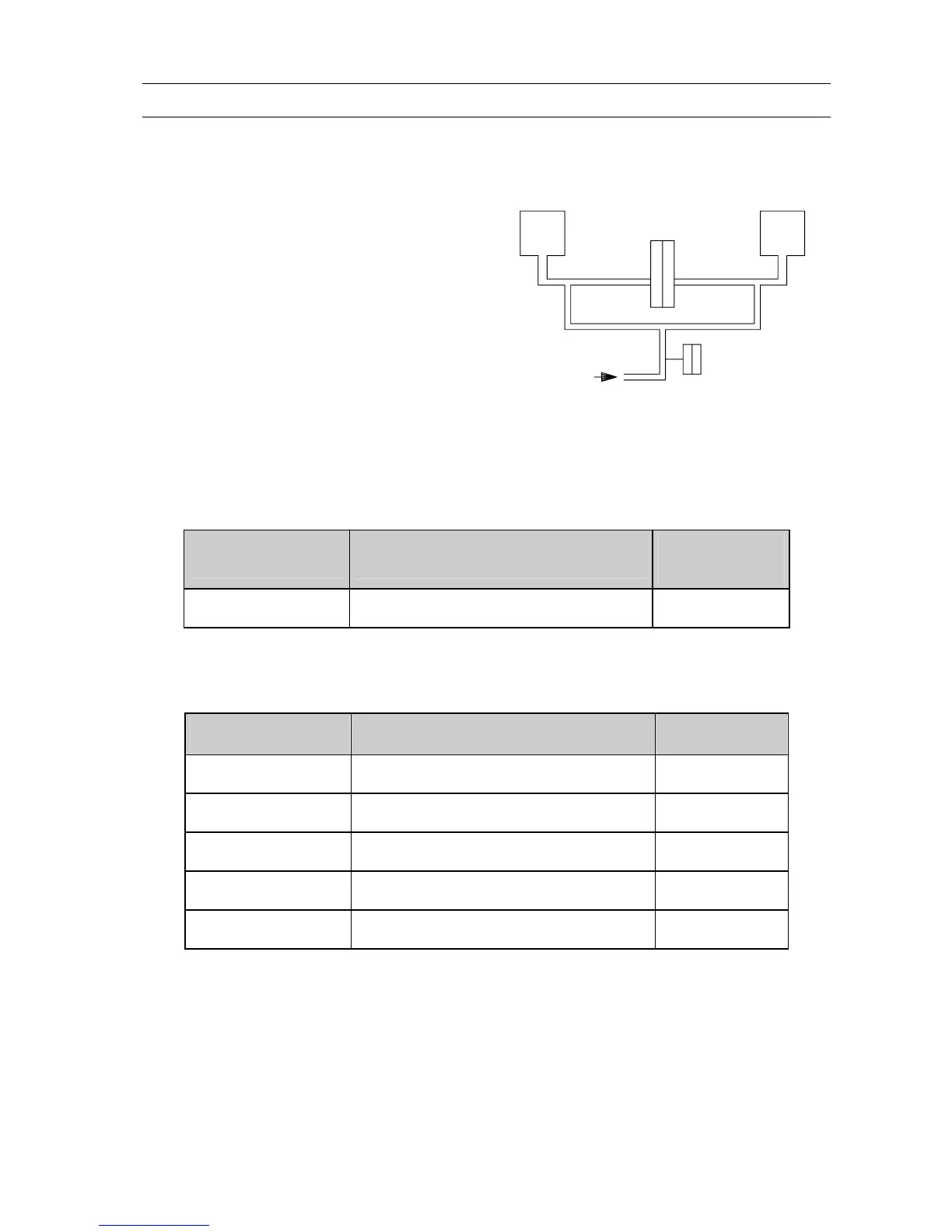

1. DEFINITION OF THE ATEQ F CLASS
The ATEQ F CLASS are compact air/air
leak detectors used to test the air-
tightness of parts on production lines.
They are specially adapted for automatic
and semi-automatic workbenches. The
method used is based on the
measurement of a small variation or drop
in differential pressure between the test
and reference parts, when both are filled
to an identical pressure.
PIEZO SENSOR
TEST AIR PRESSURE
REFERENCE PART
DIFFERENTIAL SENSOR
TEST PART
2. MEASUREMENT CHARACTERISTICS
2.1. PRESSURE DROP MEASUREMENT
RANGE ACCURACY
maximum
RESOLUTION
0 – 500 Pa +/- (2,5% of the pressure + 1 Pa) 0,1 Pa
2.2. TEST PRESSURE MEASUREMENT
RANGE
ACCURACY
RESOLUTION
Maximum
F. S. = 75 mbar* +/- (1,5% of the pressure+ 0,2 hPa)
0,1 % F. S.
F. S. < 0,3 bar +/- (1,5% of the pressure + 1 hPa)
0,1 % F. S.
0,3 ≤ F. S. ≤ 1 bar
+/- (1,5% of the pressure + 3 hPa)
0,1 % F. S.
1 < F. S. ≤ 5 bar
+/- (1,5% of the pressure + 7.5 hPa)
0,1 % F. S.
5 < F. S. ≤ 10 bar
+/- (1,5% of the pressure + 15 hPa)
0,1 % F. S.
* Spécifique (relatif)
2.3. MECHANICAL PRESSURE REGULATION
5 kPa to 50 kPa / 20 kPa to 400 kPa / 50 kPa to 900 kPa
