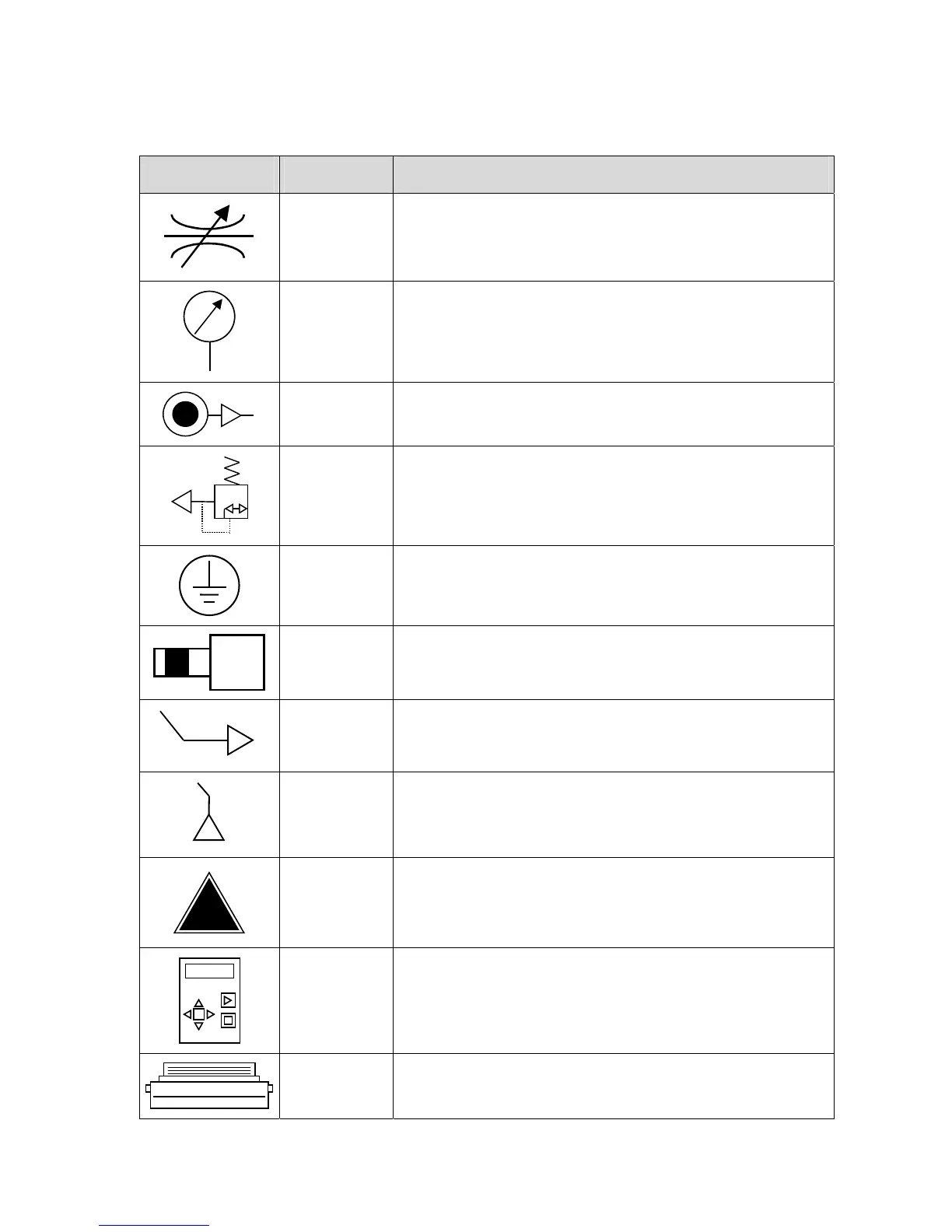

6. SYMBOLS PRESENTATION
Symbol Name Function
Adjust leak
connector
Pneumatic connector for the plugging of a calibrated leak
(ruby kind) or an adjustable leak.
Pressure
connector
Pneumatic connector for the plugging of a manometer for an
external checking of the pressure.
Pressure
supply
of the air supply from the 6 bar network.
Test circuit
supply
Pneumatic connector (according to option) for the plugging
of a supplementary pneumatic supply, used in case of test
pressure greater than 8 bar.
Ground
connector
Connector for the electric plugging to the ground.
Automatic
connector
Pneumatic connector for the driving of an external logic or
pneumatic components (pneumatic sealing connector).
Connector Connector for pneumatic output.
Connector Connector for pneumatic input.
!
Warning!
Read and respect the instructions of the user manual,
before plugging and using the instrument.
Remote
control
Connector for the remote control.
Printer Connector for printer plugging.
