ATEQ F SERIES User Manual

Chapter 3 – Start-up and settings
UM-23100B-U User manual ATEQ F CLASS Page 21/90
Chapter 3
START-UP AND SETTINGS

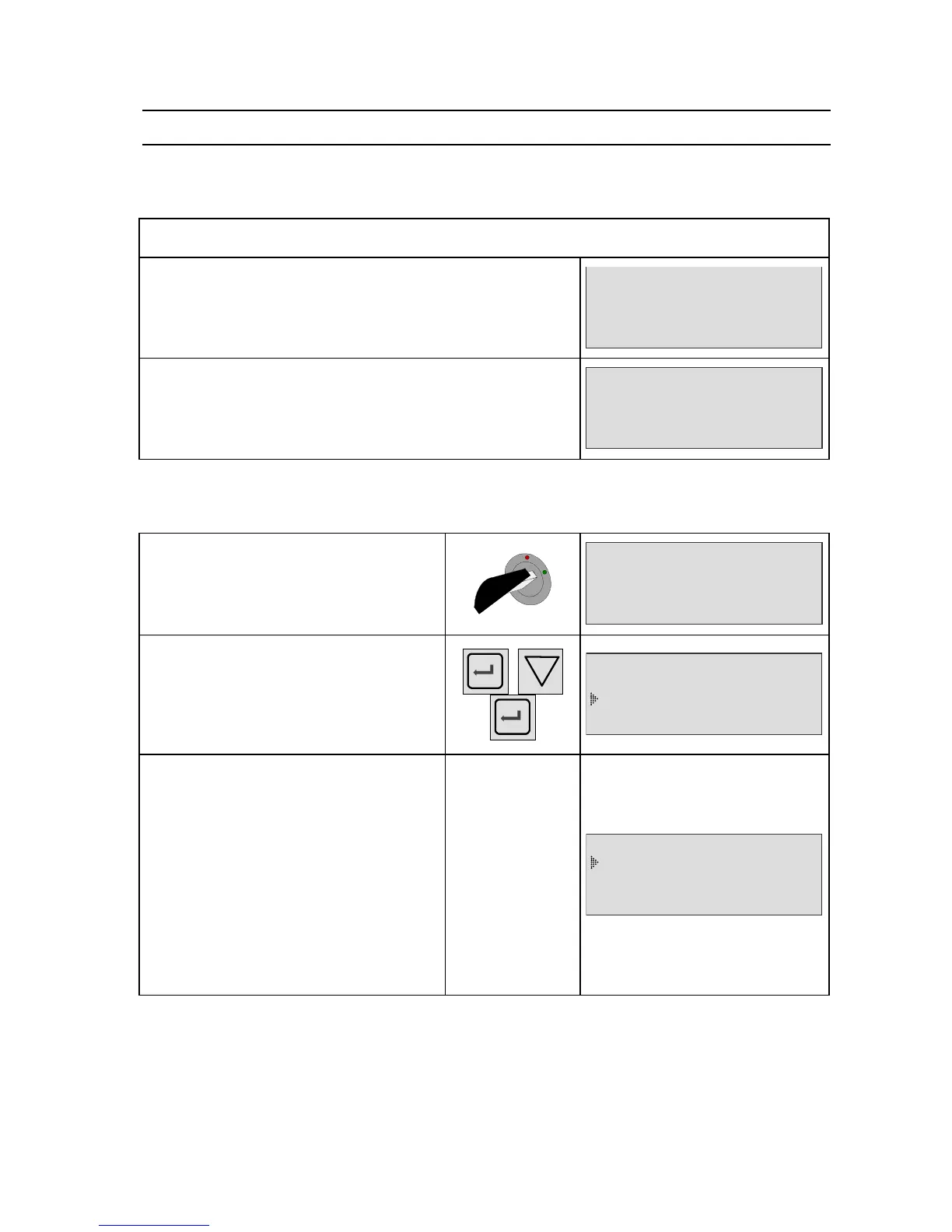

1. POWERING-UP THE ATEQ F CLASS
Supply the apparatus with 24 V DC. When powered up the instrument:
displays version and the full scale of the sensors…
ATEQ F5
Version XX.XXi
0-> 4000 mbar
Diff. F. Sc. 500 Pa
…then displays the main menu.
RUN/P
r:
001
PRESS = 0.000 bar
READY
2. CREATION OF A TEST PROGRAM
To modify the parameters, turn the
key to the ACCESS position.
RUN/P
r:
001
PRESS = 0.000 bar
READY
To access the main menu, press
ENTER.
In the main menu, place the cursor in
front of the PARAMETERS menu.
Confirm with the ENTER key.
MAIN
MENU
RUN PROG. : ---
PARAMETERS
SPE CYCLE :Disabled
The PARAMETERS menu is used to
manage test programs.
)If the various programs to be
created have different parameters,
they must be created one by one.
)If the programs have identical
parameters, a base program can be
created and then the Copy-Paste
function can be used to duplicate the
program as many times as is
necessary.
PARAMETERS
Copy-Paste
Pr :001 ----------
Pr :002 ----------
