Chapter 3 – Start-up and settings
UM-23100B-U User manual ATEQ F CLASS Page 24/90
2.3. PARAMETER SETTINGS
Once the test type is chosen, the test cycle parameters must be set.
The procedure to follow for setting the test parameters is identical in each case.
Example: Coupling time A.

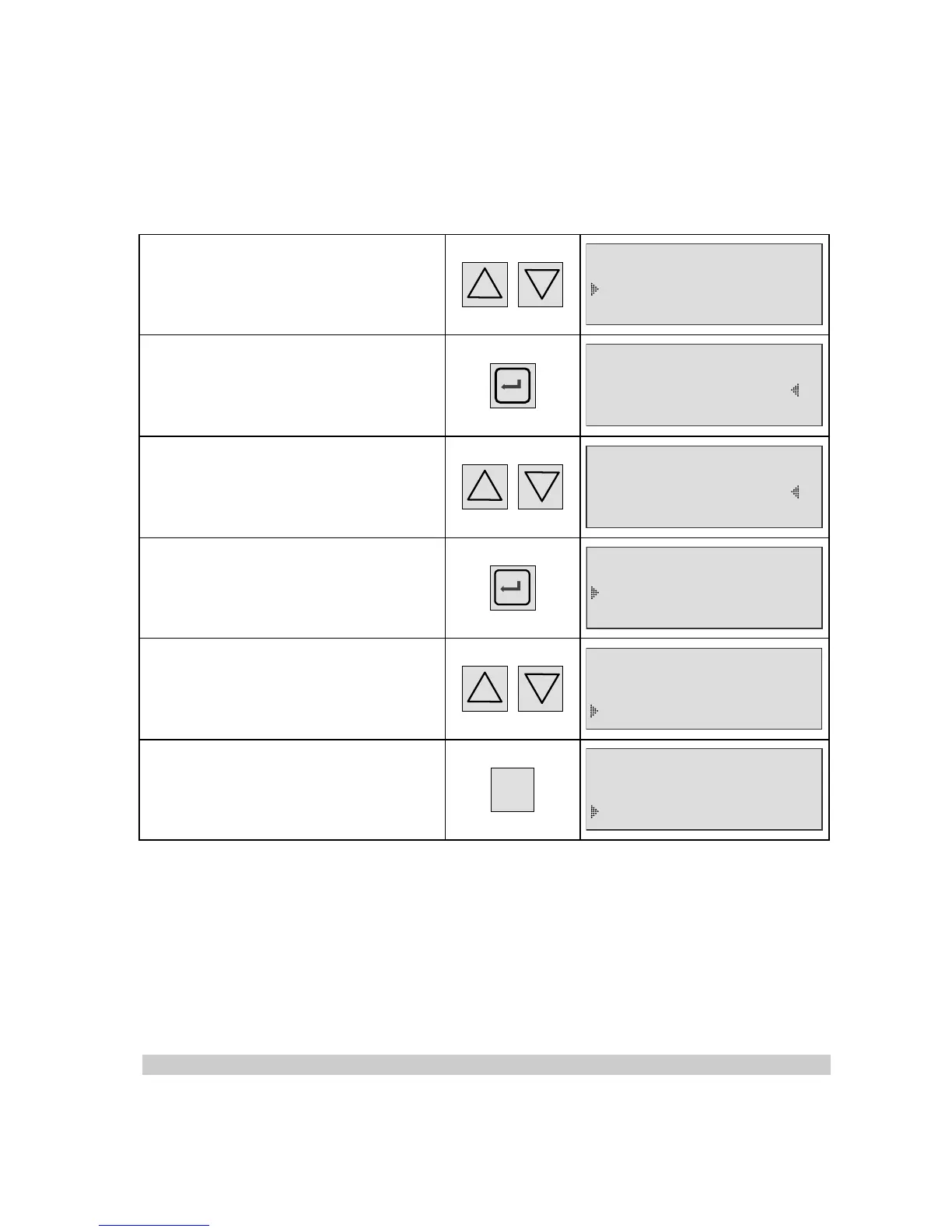

First, position the cursor in front of the
chosen parameter using the
navigation keys
(here, Coupl. A).
PARAM/
pr
001
TYPE : LEAK TEST
COUPL. A: 00.00 s
FILL : 00.00 s
Then, confirm with the ENTER key.
The cursor will move to the right of
the display.
PARAM/pr001
TYPE : LEAK TEST
COUPL. A : 00.00 s
FILL : 00.00 s
Modify the value using the navigation
keys.
PARAM/
pr
001
TYPE : LEAK TEST
COUPL.A : 00.03 s
FILL : 00.00 s
Once the value is modified, confirm
with the ENTER key.
PARAM/
pr
001
TYPE : LEAK TEST
COUPL.A : 03.00 s
FILL : 00.00 s
To move on to the next parameter,
use the navigation keys.
PARAM/
pr
001
TYPE : LEAK TEST
COUPL. A : 03.00 s
FILL : 00.00 s
To exit from the menu, use the
CANCEL key.
C
PARAMETERS
Cut-Paste
Pr:001 LEAK
Pr:002 LEAK
2.3.1. Coupling time
Coupling times A and B are start of cycle parameters. If there is no automatic
connector, Coupling time A is part of the cycle.
If an instrument is fitted with an automatic connector, Coupling time A delays the
pressurisation of the test part by allowing the activation of a first cycle connector at the
test start. Coupling time B allows the activation of a second automatic connector. These
Coupling times ensure better stabilisation of the seals placed on the test part.
)Set this parameter using the method described in paragraph 2.3.
