2.6. INSTALLATION OF THE INTERFACE BOARD F5 TO F3
2.6.1. Presentation

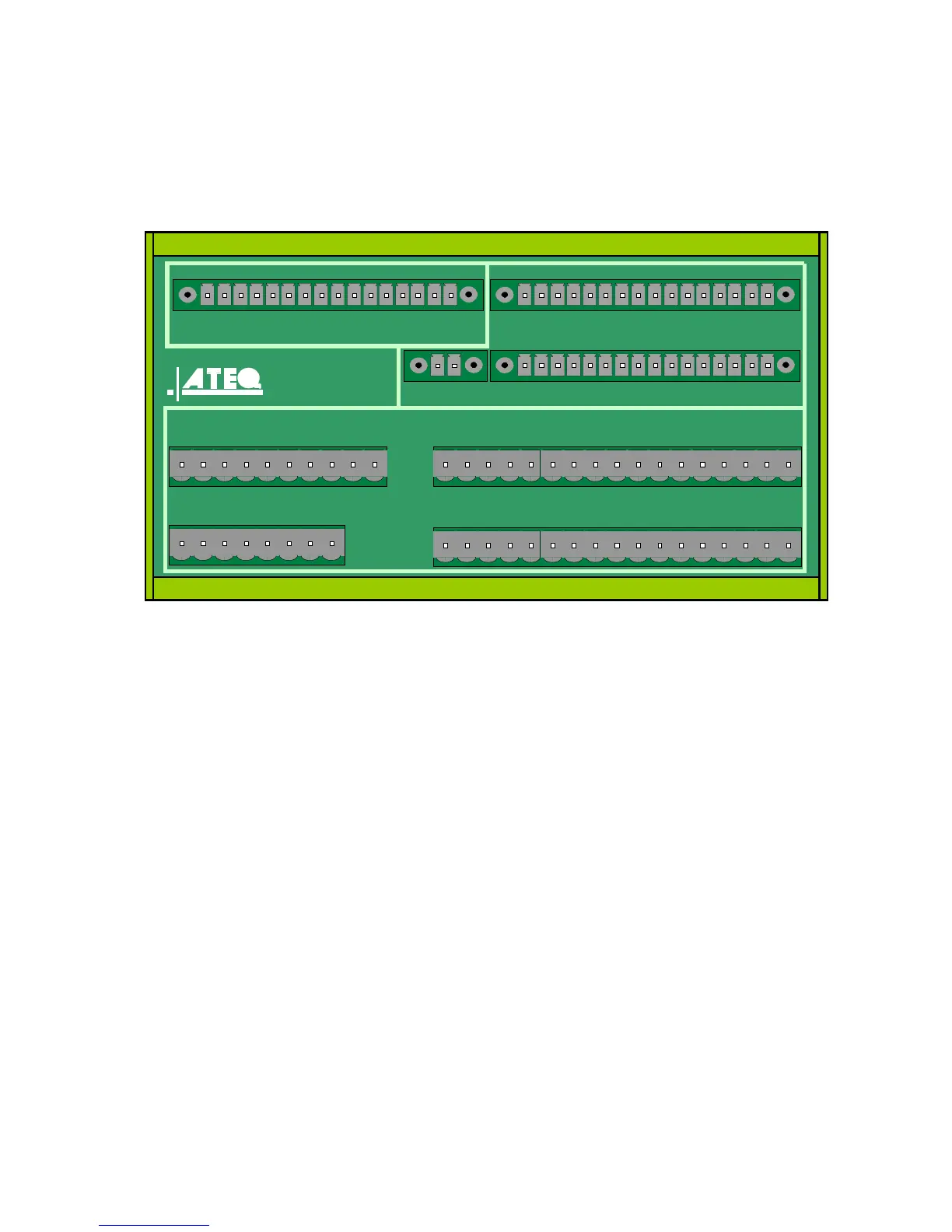

The interface relay board F5 to F3 is presented as follows:
J3
J7
J8J1
J11
J12
J8
J7
F3
F520 F580
530.34.
+-
116 161
161
1
17
11781
1
10
The interface relay board allows the replacement of a 3 series instrument by a 5 series
one without modify all the existing wiring. The compatibility only concerns some basic
functions, which are described in the following pages.
As the board is an external component, it has to be bought separately from the ATEQ
instruments. The board has to be fixed on a DIN support and its measurements are:
L = 160 mm x H = 90 mm x D = 50 mm.
2.6.2. Installation of the interface
For information on the installation and compatible functions, please refer the interface’s
manual or brochure.
