ATEQ F SERIES User Manual

Chapter 6 – Error Messages
UM-23100B-U User manual ATEQ F CLASS Page 81/90
Chapter 6
ERROR MESSAGES

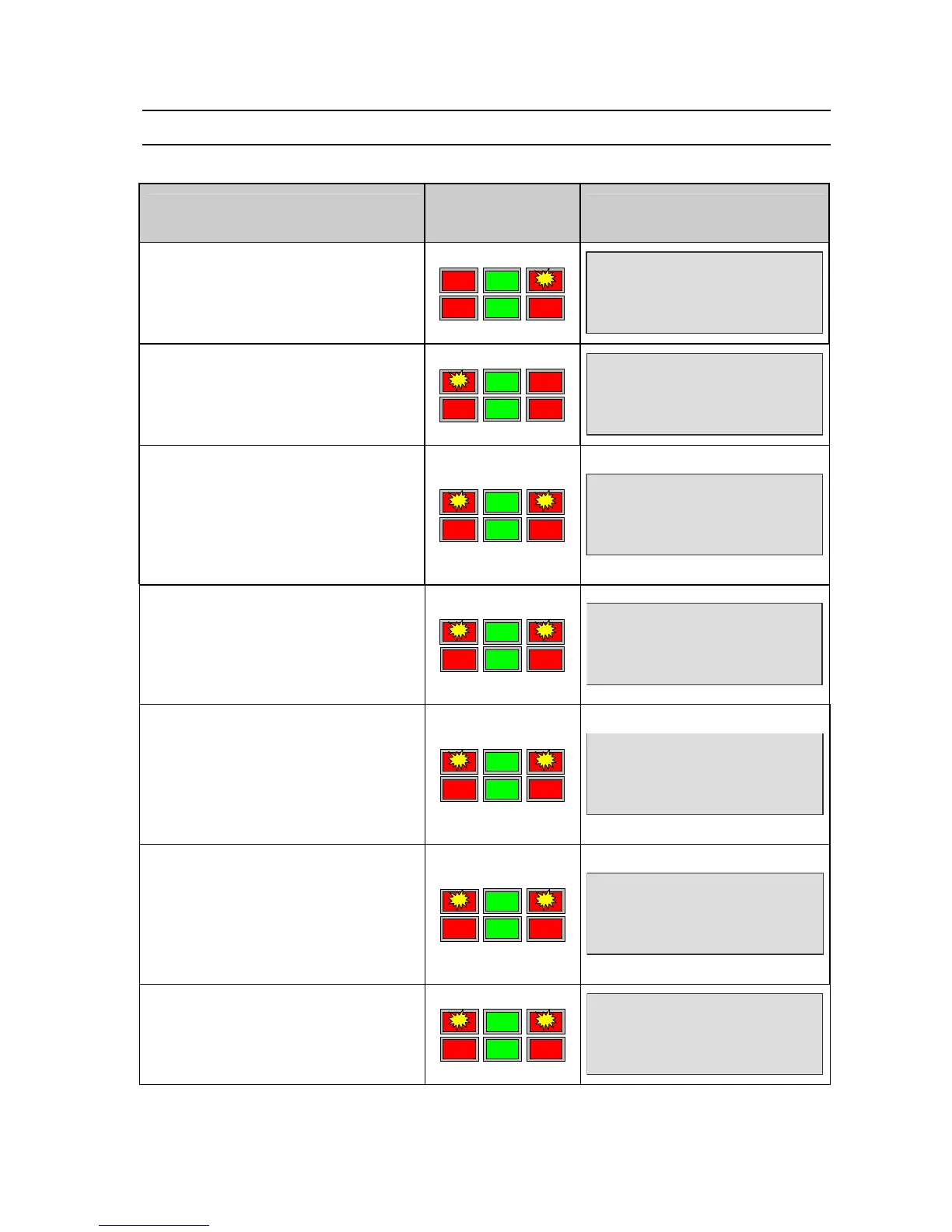

The ATEQ F CLASS can display error messages if there are operational problems.
PROBLEM
LIT
INDICATORS
MESSAGE DISPLAYED
Reference error. Leak in excess of
the full scale.
Action: check the reference circuit.
T
R
CYCLE/P
r
001
PRESS=0.942 bar
LEAK=>>F.S REF.
READY (NO OK)
Test error. Leak in excess of the
full scale.
Action: check the test circuit.
T
R
CYCLE/Pr001
PRESS=0.942 bar
LEAK=>>F.S TEST
READY (NO OK)
Pressure in excess of the full
scale.
Action: decrease the pressure
using the mechanical regulator
knob or the target if an electronic
regulator is used.
T
R
CYCLE/P
r
001
PRESS=> FULL SCALE
READY (NO OK)
Differential transducer fault.
Action: contact ATEQ after sales
service for repair (probably water
or oil in the instrument's test
circuit).
T
R
CYCLE/P
r
001
PRESS=0.942 bar
LEAK= SENSOR DEF.
READY (NO OK)
Pressure in excess of the max.
threshold.
Action: check regulator settings,
pressure limits, check whether the
right regulator has been selected if
there are two.
T
R
CYCLE/Pr001
PRESS=1.02 bar P>
READY (NO OK)
Pressure below the min. threshold.
Action: check the network
pressure and regulator settings,
the pressure limits, and whether
the right regulator has been
selected if there are two.
T
R
CYCLE/Pr001
PRESS=0.000 bar P<
READY (NO OK)
ATR error.
Action: run another ATR learning
cycle or check the ATR
parameters. ATR fault.
T
R
CYCLE/P
r
001
PRESS=0.942 bar
LEAK=ATR DEFAULT
READY (NO OK)
