Atlas Copco C9C Compact - BASE Model - Internal Components

Page 11
Unity Bulk Feeder C9C Compact, Issue 1

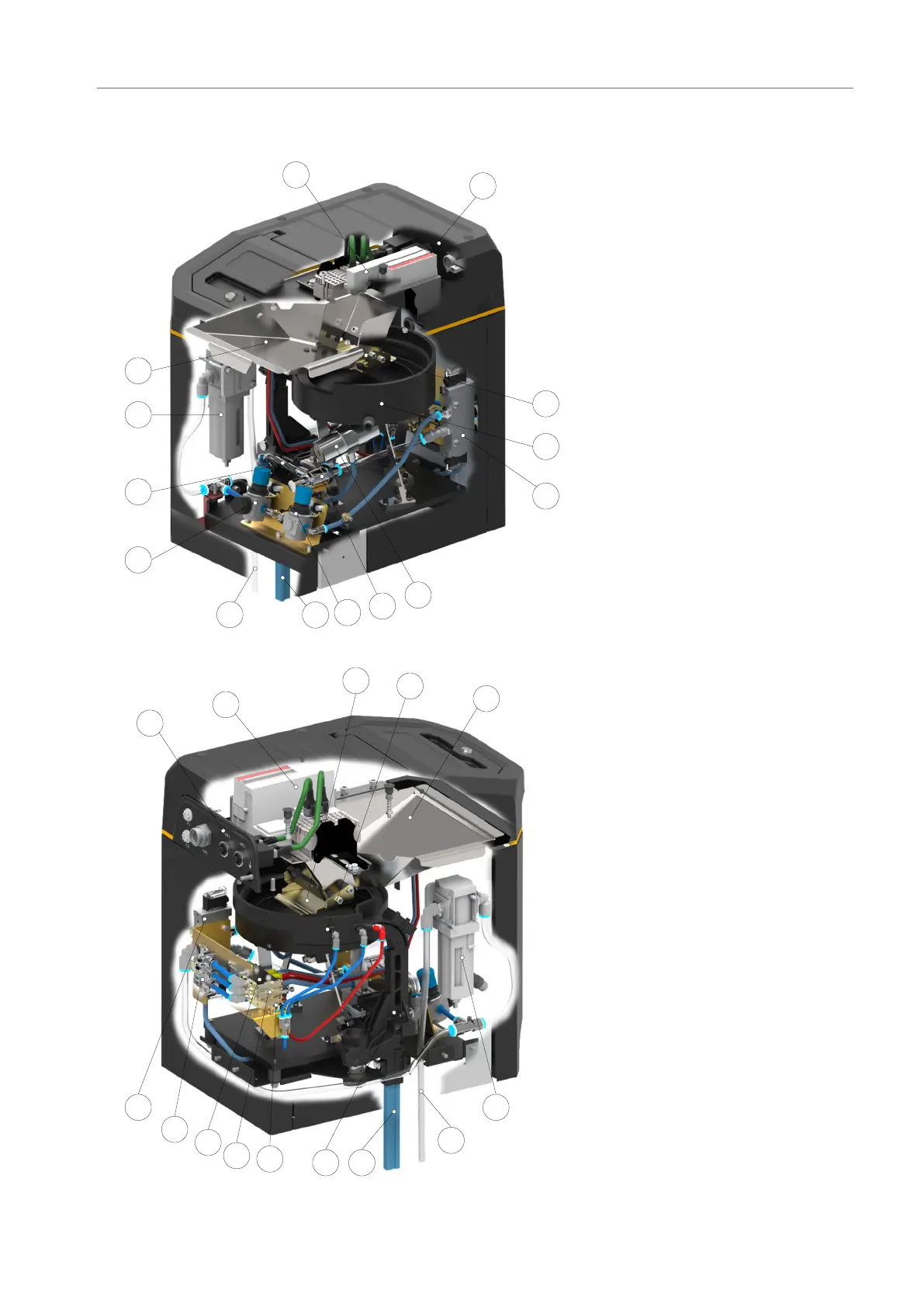

3. 1 BASE Model - Internal Components
2
1
3
4
5
9
10
11
12
13
15
7
8
14
1 - Control module
2 - Hopper assembly
3 - Dispenser unit
4 - Bowl assembly
5 - Vibration unit
6 - Escapement assembly
7 - Main blow
8 - Bulk head plate
9 - T-Tube
10 - Main Air inlet Hose
11 - Main lter unit
12 - Main regulator unit
13 - Vibration unit regulator
14 - Main solenoid valve
15 - Main blow regulator
16 - Manifold
17 - Radial blow & blow
back solenoid valve
18 - Escapement advance
solenoid valve
19 - Dispensing cylinder
solenoid valve
8
1
2
3
4
6 9
10
11
16
14
19
18
17
