Atlas Copco C9C Compact - Manifold and Solenoid Valves

Page 20
Unity Bulk Feeder C9C Compact, Issue 1
4. 11 Manifold and Solenoid Valves
3
2
1
4
4
4
5 6 7
5
6
7

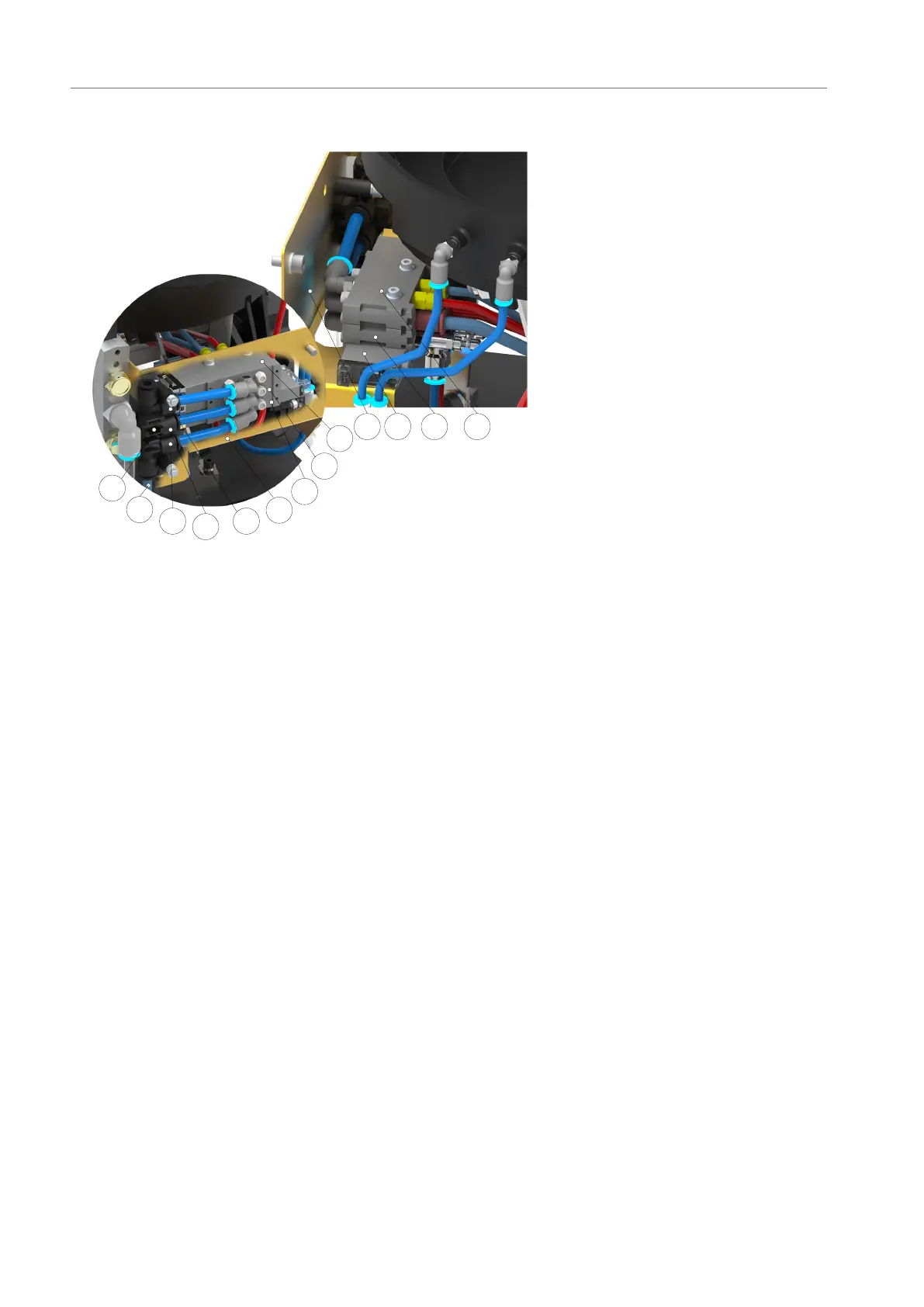

1
1 - Mounting plate
2 - Main ltered air inlet hose
to manifold
3 - Manifold
4 - Output ports (3 o)
5 - Bottom solenoid valve
6 - Middle solenoid valve
7 - Top solenoid valve
The manifold is located on a mounting plate at the rear of the unit. The manifold has three outlet
ports which connect to three solenoid valves.
 The bottom solenoid valve actuates the bowl radial blow and blow back
 The middle solenoid valve actuates the escapement cylinder
 The top solenoid valve actuates the hopper dispensing cylinder
