Page 32
Unity Bulk Feeder C9C Compact, Issue 1

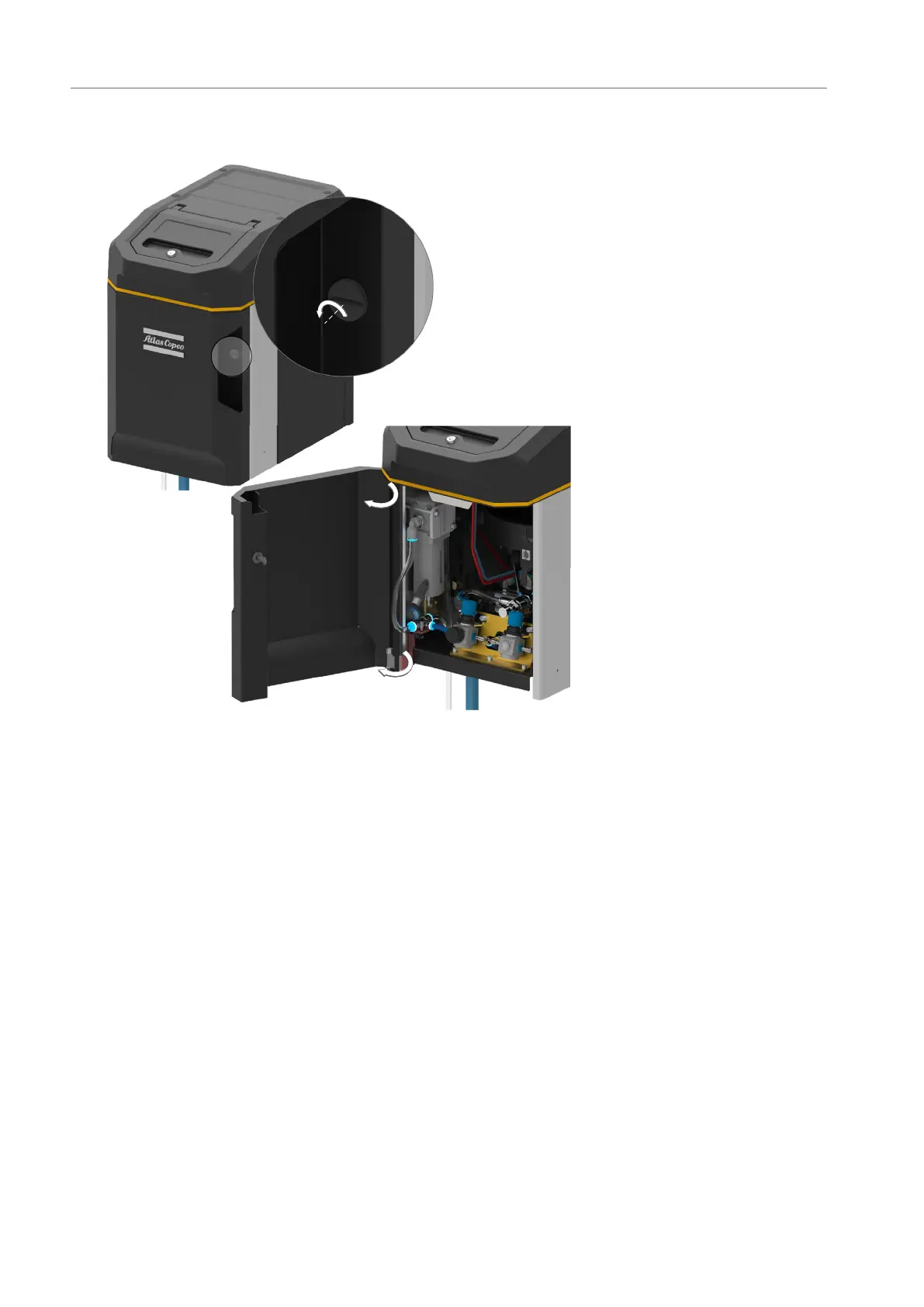

7. 1 Opening the Door
The door is secured by
a stud
Step 1 - Turn the stud in
the door handle
a quarter of a
turn to open the
hinged door
