Atlas Copco C9C Compact - Removing a Rivet that Fails Rivet Length Check

Page 35
Unity Bulk Feeder C9C Compact, Issue 1

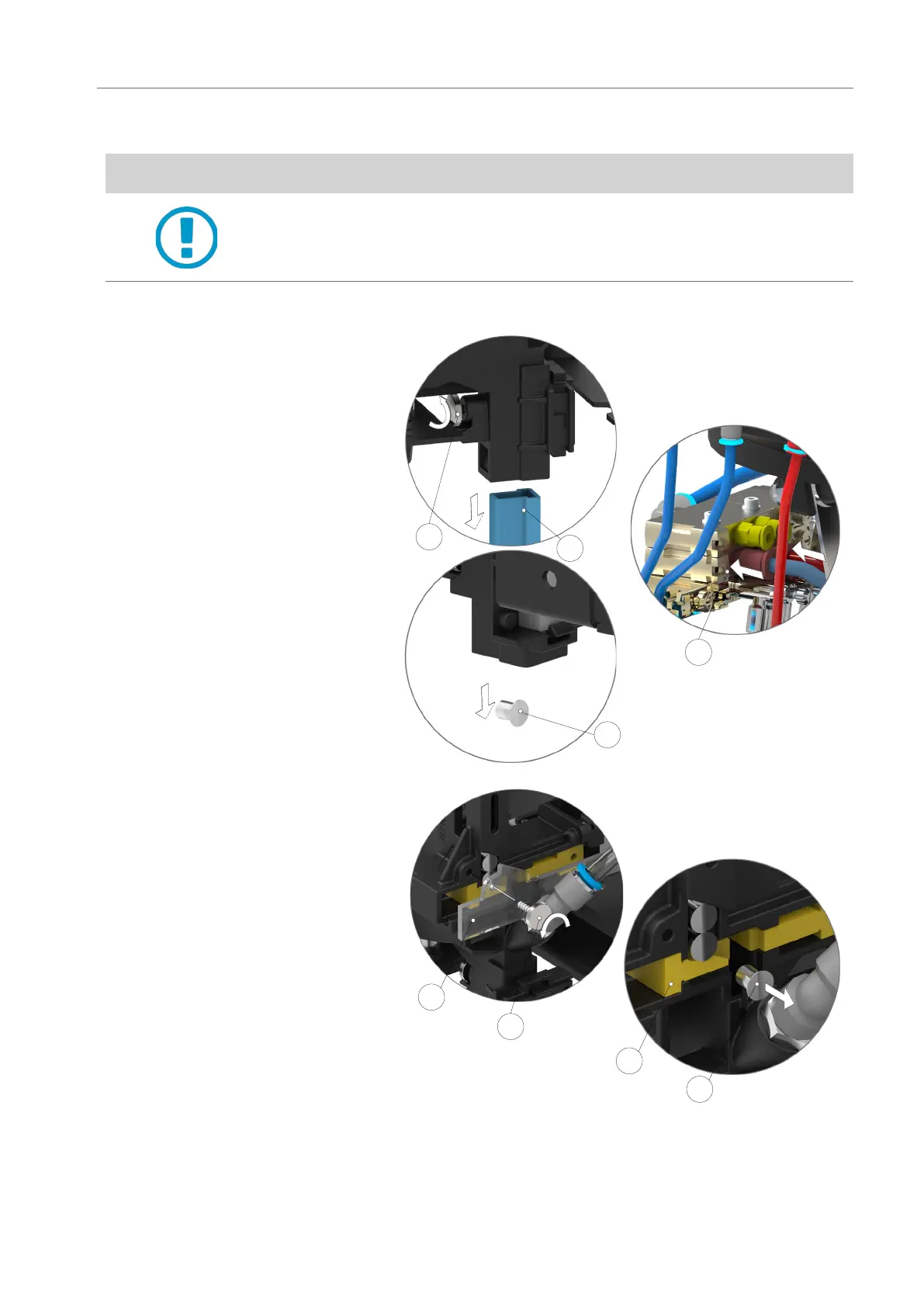

7. 6 Removing a Rivet That Fails Rivet Length Check
CAUTION
Do NOT use a magnetic device to purge the escapement of rivets.
METHOD 1
Easiest option to
remove a singular
fault rivet is to remove
the T-Tube from the
escapement by undoing
the thumb screw and
manually cycle the
gate using the solenoid
override.
The rivet will fall out of
the escapement.
1 - T-Tube
2 - Thumb screw
3 - Solenoid valve override
4 - Rivet
1
2
3
4
METHOD 2
Another method is to
remove the clear gate
cover and remove the
erroneous rivet.
1 - Gate cover
2 - Thumb screw
3 - Gate
4 - Rivet
1
2
3
4
