Page 34
Unity Bulk Feeder C9C Compact, Issue 1
7. 4 Rear Panel
The rear panel is xed and is not removable.

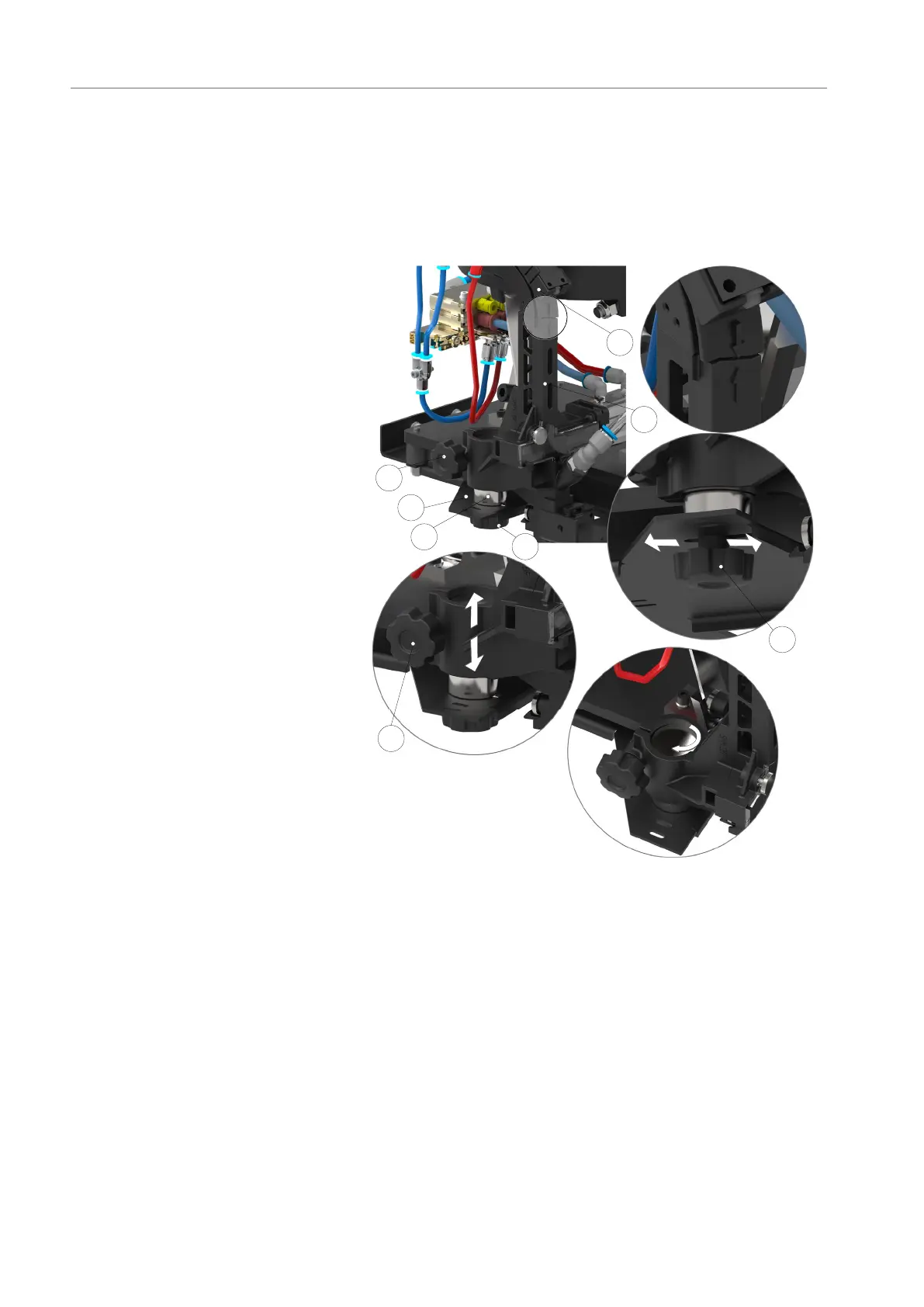

7. 5 Linear Track/Escapement Alignment
1 - Bowl exit track
2 - Escapement track
3 - Clamp post
4 - Baseplate
5 - Tightening knob1
6 - Tightening knob2
Following any activity
resulting in the
removal of the track/
escapement from
the Compact Bulk
Rivet Feeder, it will
be necessary to set
up the linear track/
escapement alignment
again. This will ensure
an unimpeded passage
of rivets from the track
to the Escapement.
The escapement is in
alignment when the
arrows on the track
and escapement are in
alignment. There will
be a small gap (approx.
0.5mm) between the
assemblies.
1
2
3
4
5
6
5
6
Escapement Forward and Back Movement
The escapement can move forwards and backwards on the slot in the base plate, tighten to
the clamp post with the knob under the base plate.
Escapement Height Adjustment
Adjust the escapement height on the clamp post and tighten with the knob on the
escapement body.
Eccentric movement of the escapement
Rotate the clamping post (eccentric movement) to align up the arrows on the escapement.
