Unity Bulk Feeder C9C Compact, Issue 1

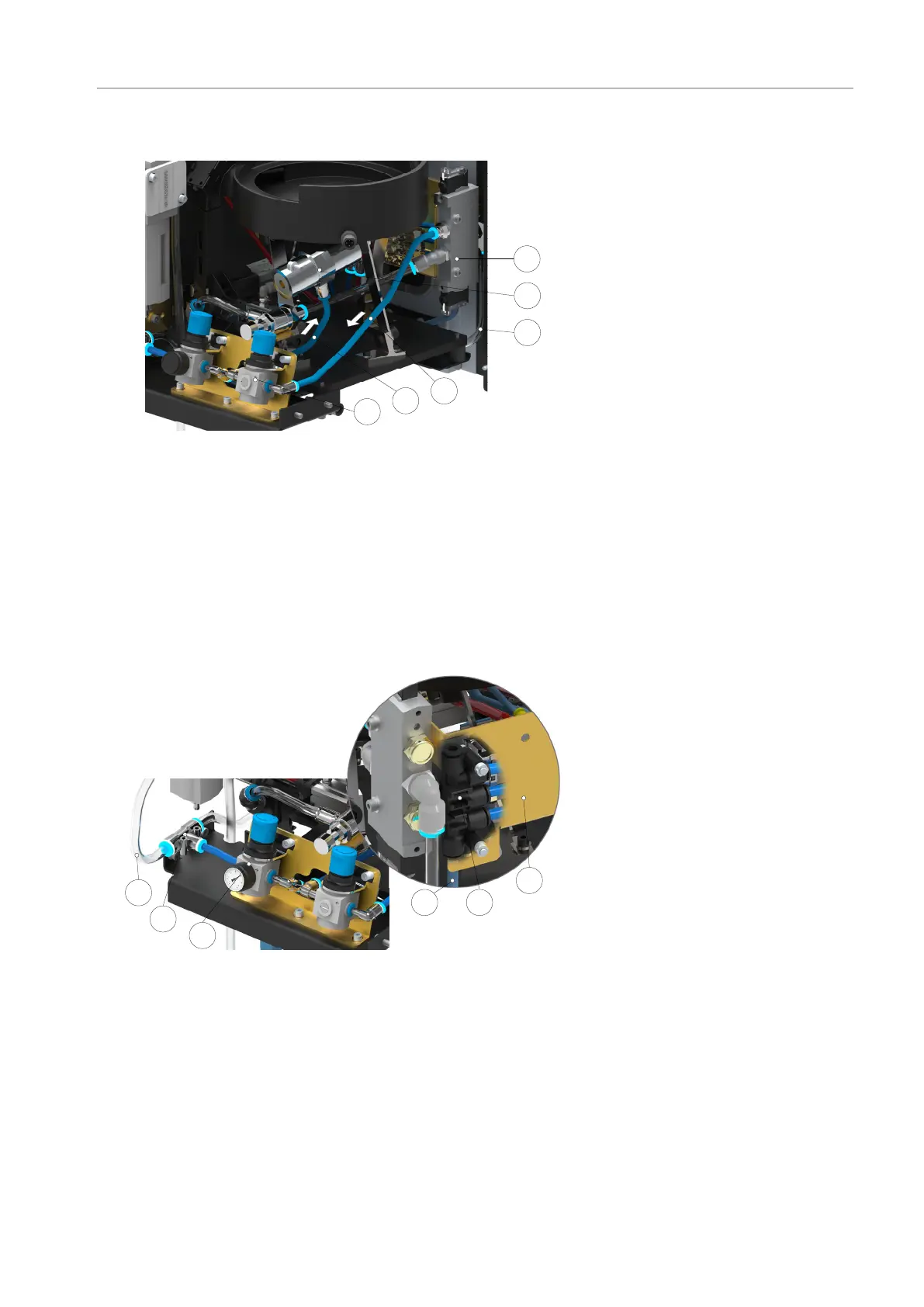

4. 9 The Vibrating Unit Regulator
5
2
1
3
4
6
1 - Solenoid valve
2 - Vibration unit
3 - Main ltered air inlet
hose
4 - Main ltered air to
regulator
5 - Regulator
6 - Regulated air hose to
vibration unit
The main ltered air is fed to solenoid valve at the rear which actuates the vibration unit airline.
The vibrating unit airline from the valve is fed to a regulator tted to a bracket at the front of the
unit. This regulator control the frequency of the vibration unit and also adjustment of the speed at
which rivets move around the bowl.
4. 10 Main Regulator
1
2
3
4
5
6
1 - Main ltered air inlet hose
2 - T-piece connector
3 - Main regulator
4 - Main regulator hose (4 bar)
to manifold
5 - Mounting plate
6 - Manifold
The ltered mains air supply is fed to the main regulator tted to a bracket at the front of the unit.
This regulator needs to be set to 6 bar. The airline from the main regulator connects to a manifold
located on a mounting plate at the rear of the unit.
