Page 12
Unity Bulk Feeder C9C Compact, Issue 1
4 Components
NOTE
The compact bulk feeder is tted to a stand, there are various options
available, refer to the marketing information or brochure for more
details.
This manual will not cover or make reference to the type of stand tted

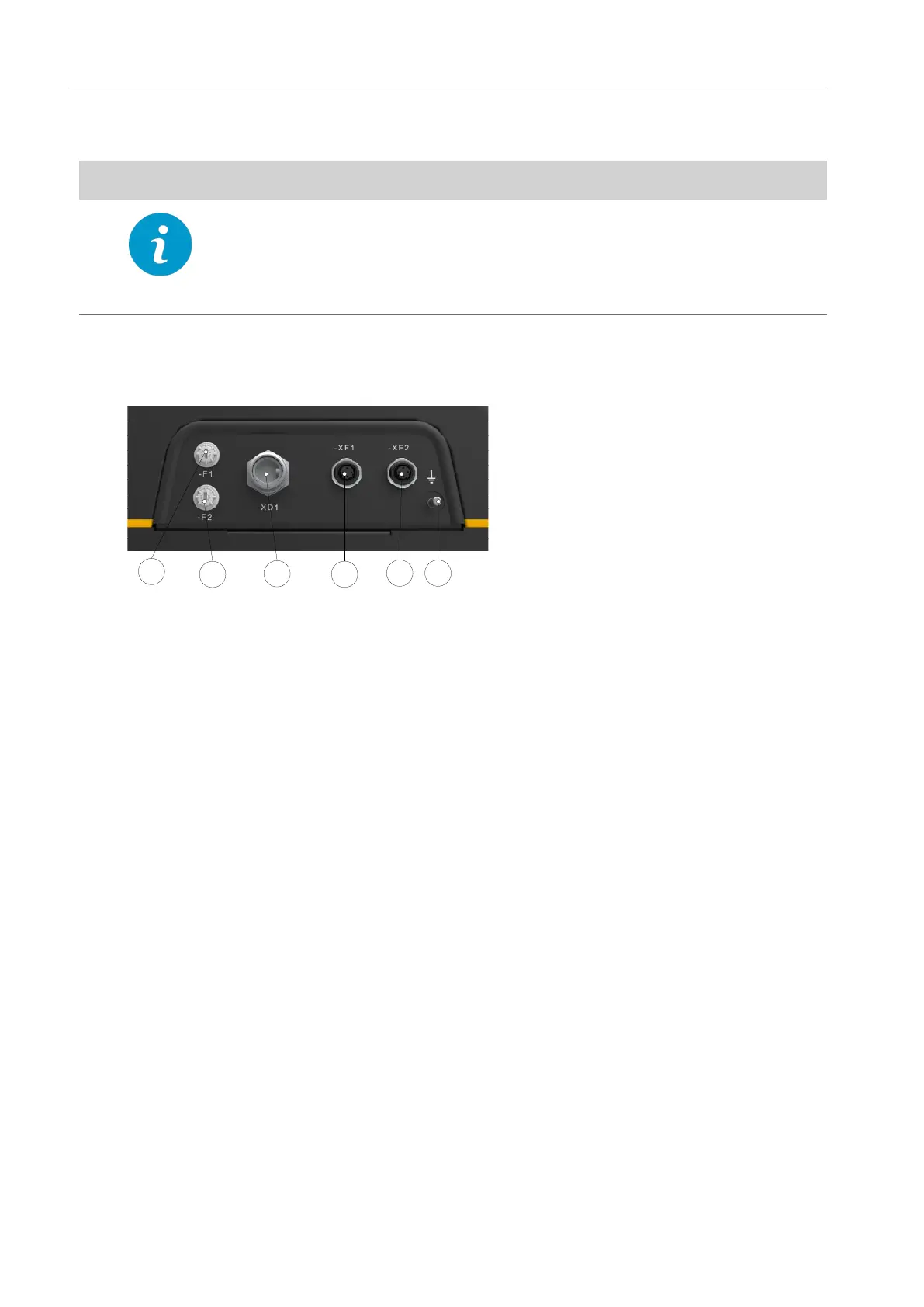

4. 1 Bulkhead Plate
12
3
4
5
6
1 - Earth stud
2 - XF2 Ethernet in
3 - XF1Ethernet out
4 - XD1 24V main electrical
supply
5 - F2 Fuse 24V switched
(0.5A)
6 - F1 Fuse +24V (0.5A)
At the rear of the unit is the bulkhead plate which contains the main 24V DC electrical supply
(⁄” UNC 4 pin connector) and Ethernet in/out connectors (not supplied - cable Ethernet, M12
D-Code).
There are two fuses (0.5A) for the +24V and 24V switched lines.
