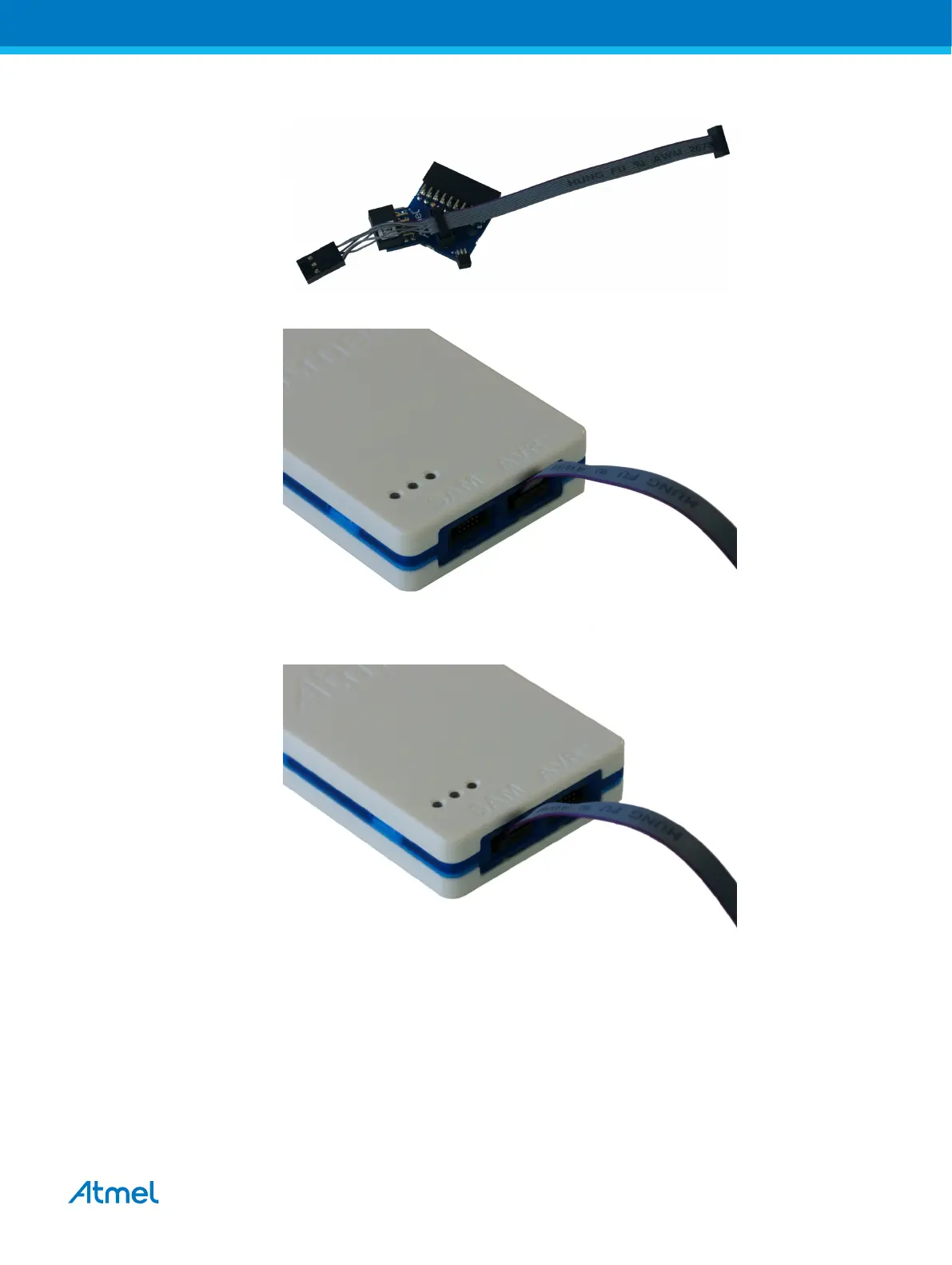

Figure 2-9. Atmel-ICE Cable Connection
Figure 2-10. Atmel-ICE AVR Probe Connection
Figure 2-11. Atmel-ICE SAM Probe Connection
2.7. Opening the Atmel-ICE
Note:
For normal operation, the Atmel-ICE unit must not be opened. Opening the unit is done at your own risk.
Anti-static precautions should be taken.
The Atmel-ICE enclosure consists of three separate plastic components - top cover, bottom cover, and
blue belt - which are snapped together during assembly. To open the unit, simply insert a large flat
Atmel Atmel-ICE [USER GUIDE]
Atmel-42330C-Atmel-ICE_User Guide-10/2016
11
