12
ATtiny26(L)
1477G–AVR–03/05
A 16-bit Data Address is contained in the 16 LSBs of a two-word instruction. Rd/Rr
specify the destination or source register.
Data Indirect with
Displacement

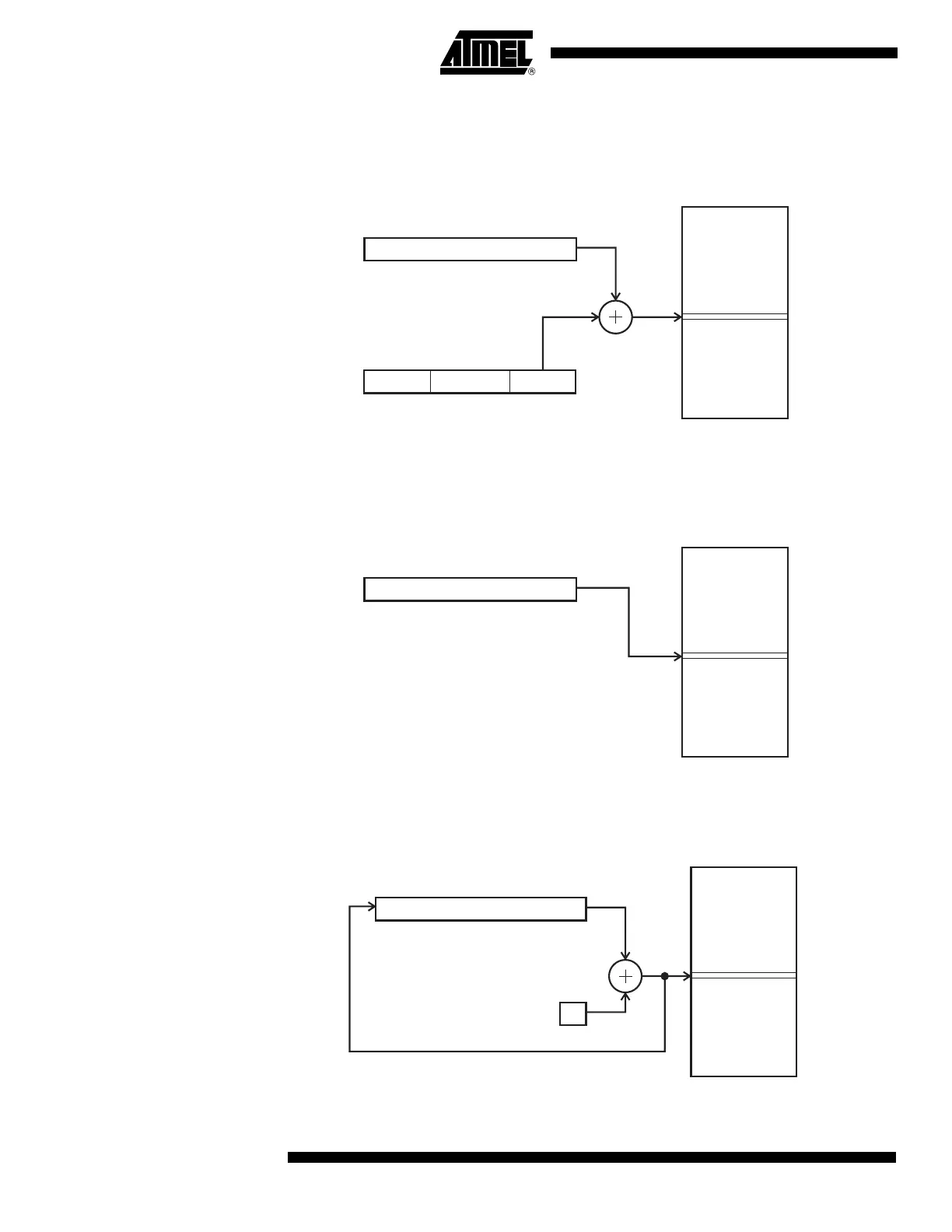

Figure 9. Data Indirect with Displacement
Operand address is the result of the Y- or Z-register contents added to the address con-
tained in 6 bits of the instruction word.
Data Indirect Figure 10. Data Indirect Addressing
Operand address is the contents of the X-, Y-, or the Z-register.
Data Indirect with Pre-
decrement
Figure 11. Data Indirect Addressing with Pre-decrement
Data Space
$000
0
$00D
F
Y OR Z - REGISTER
OP an
0
05610
1
5
1
5
Data Space
$000
0
$00D
F
X-, Y-, OR Z-REGISTER
0
1
5
Data Space
$0000
$00D
F
X-, Y-, OR Z-REGISTER
015
-1
