Atmel ATtiny26 User Manual

154
ATtiny26(L)
1477G–AVR–03/05

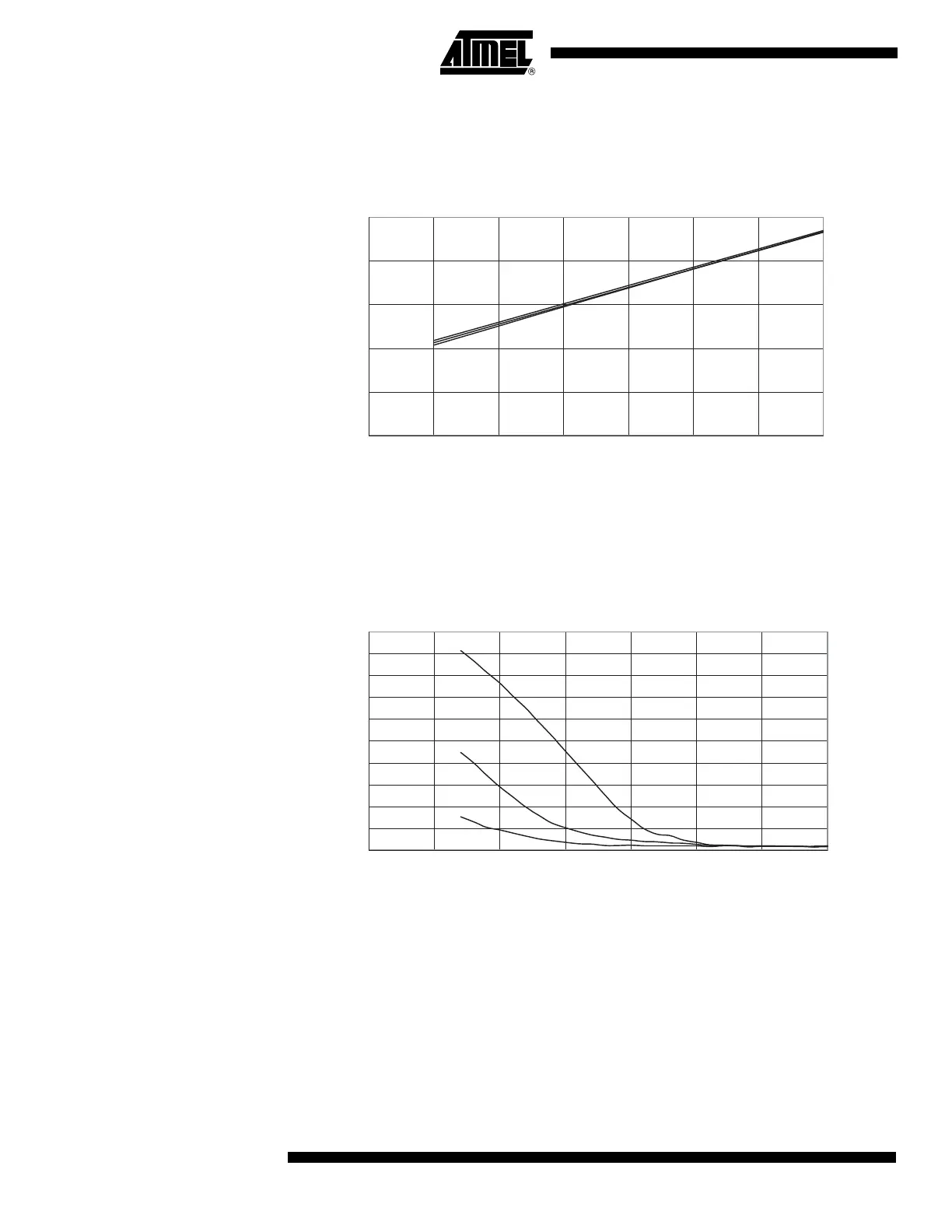

Figure 116. Reset Input Threshold Voltage vs. V
CC
(V
IL
, Reset Pin Read as “0”)
Figure 117. Reset Input Pin Hysteresis vs. V
CC
RESET INPUT THRESHOLD VOLTAGE vs. V
CC
VIL, RESET PIN READ AS '0'
0
0.5
1
1.5
2
2.5
2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
Threshold (V)
85°C
25°C
-40°C
RESET INPUT PIN HYSTERESIS vs. V
CC
0
0.05
0.1
0.15
0.2
0.25
0.3
0.35
0.4
0.45
0.5
2 2.5 3 3.5 4 4.5 5 5.5
V
CC
(V)
Threshold (V)
85°C
25°C
-40°C
