BOD Thresholds and Analog
Comparator Offset

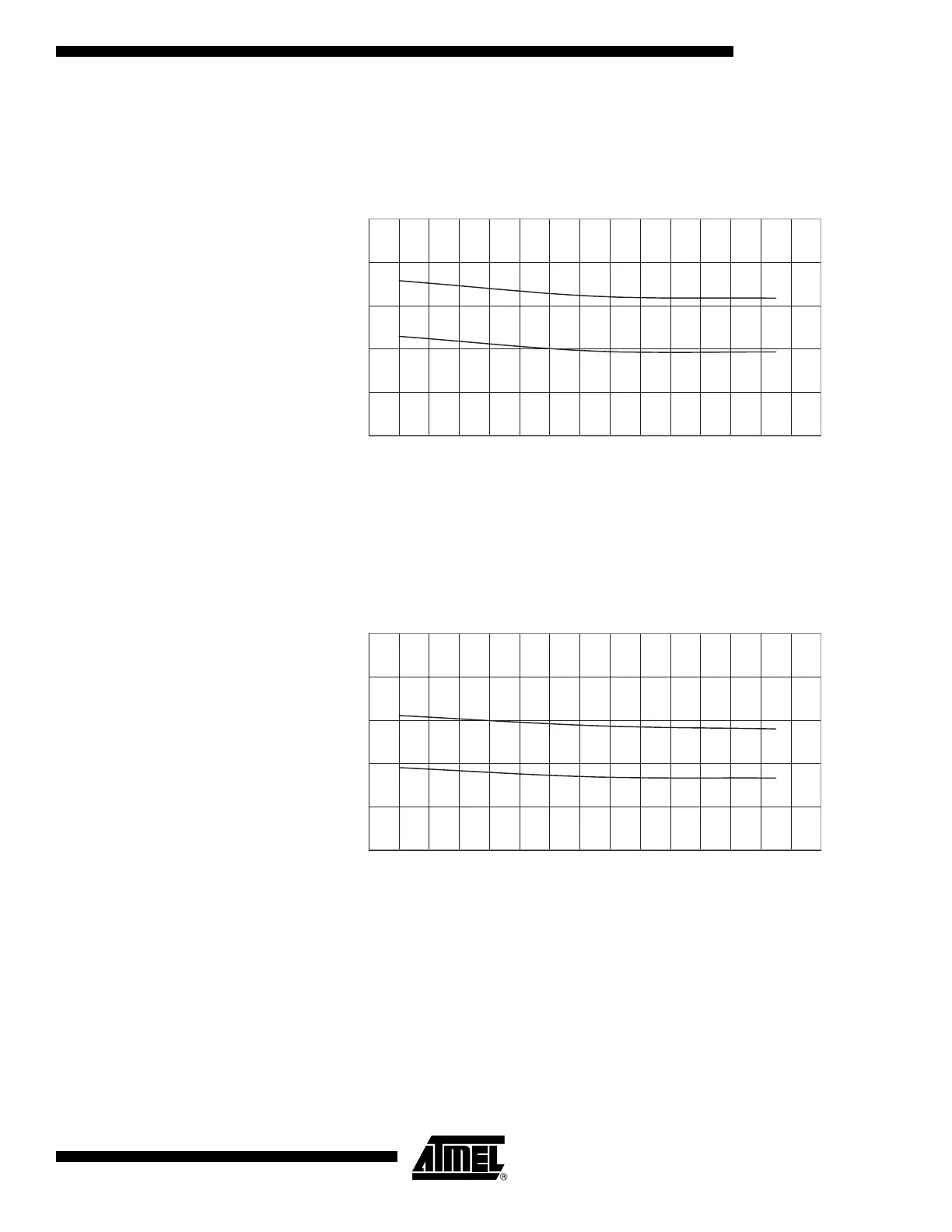

Figure 118. BOD Thresholds vs. Temperature (BOD Level is 4.0V)
Figure 119. BOD Thresholds vs. Temperature (BOD Level is 2.7V)
BOD THRESHOLDS vs. TEMPERATURE
BODLEVEL IS 4.0V
3.8
3.9
4
4.1
4.2
4.3
-50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90 100
Temperature (C)
Threshold (V)
Rising V
CC
Falling V
CC
BOD THRESHOLDS vs. TEMPERATURE
BODLEVEL IS 2.7V
2.6
2.7
2.8
2.9
3
3.1
-50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90 100
Temperature (C)
Threshold (V)
Rising V
CC
Falling V
CC
