AudioCodes C450HD - Figure 3-13: Configure Options 1; Figure 3-14: Configure Options 2

Administrator's Manual 3. Configuring Automatic Provisioning
Version 3.4.3 39 400HD Series IP Phones
-OR-
b. Select the collapsed folder 'Scope Leased' and in the main screen, right-click
'Scope Options' and select Configure Options…

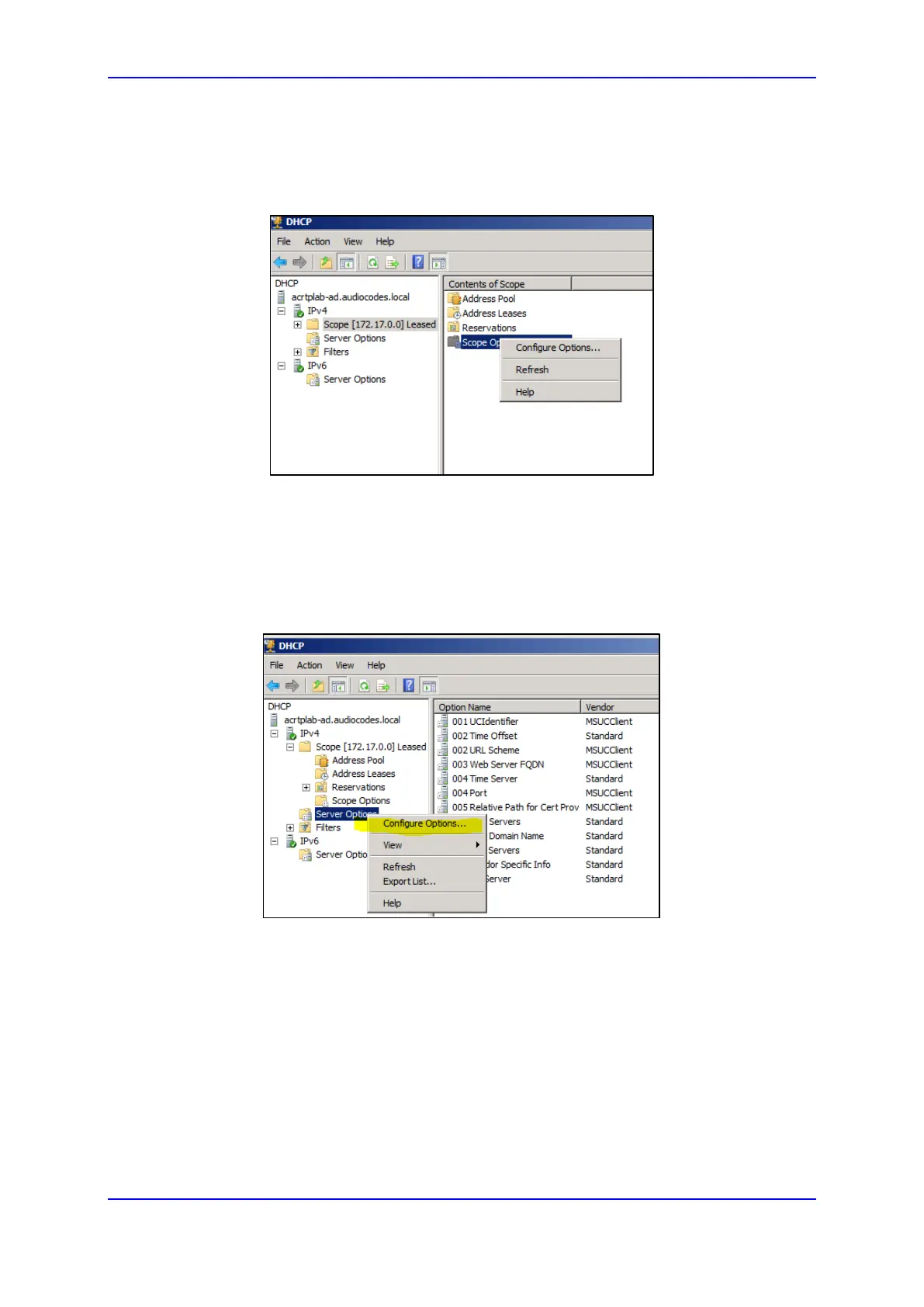

Figure 3-13: Configure Options 1
-OR-
Server Option
12. If assigning to the entire server (acrtplab-ad.audiocodes.local), select the 'Server
Options' folder under server IPv4, right-click 'Server Options' and select Configure
Options...
Figure 3-14: Configure Options 2
13. In the Server Options page (or Scope Options page) that opens, select the Advanced
tab, make sure DHCP Standard Options remains selected, and select the first phone
model to be defined. Scroll through the Available Options (all are cleared) and select
only 160 AudioCodes 160 Option.
The figure below shows the Server Options page. The Scope Options page is identical.
Note that the String value you defined for Scope Option 160 is automatically
populated so it's unnecessary to change it. Note also that if additional DHCP Options
are required (such as DNS or time server) that are different from the Servers Options
for the rest of the Scopes on the server, they can also be selected, but this is typically
not needed.
