AudioCodes Mediant 800 Installation Manual

Installation Manual 54 Document #: LTRT-28087
Mediant CCE Appliances
6. After restarting, the Mediant 800 CCE appliance's OSN server boots from the USB key
(once only) and the WinPE Splash screen appears:

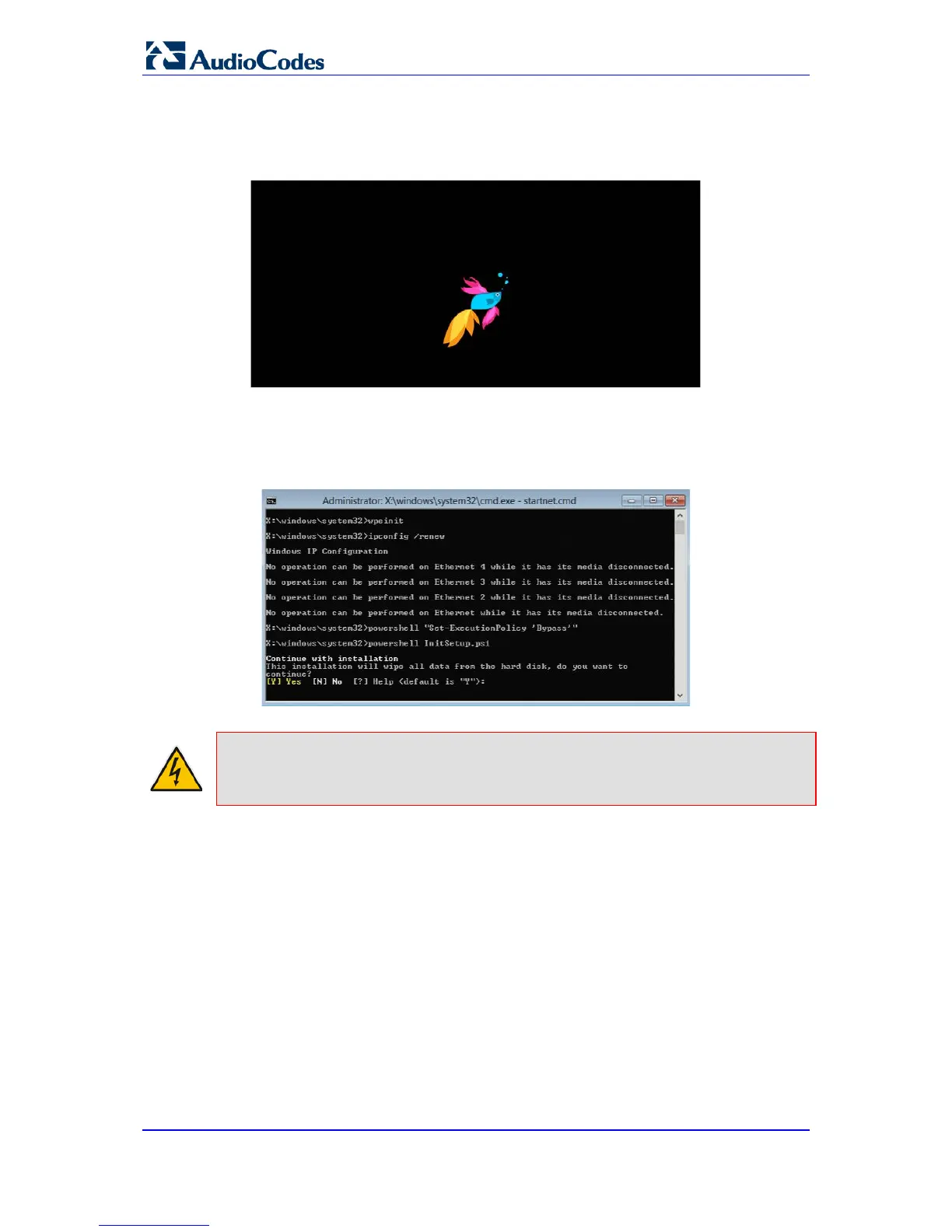

Figure 5-8: WinPE Splash Screen
7. After WinPE starts, a command line window is displayed, prompting you if you wish to
continue with the installation. Click Enter, or Y followed by Enter to continue the
installation process.
Figure 5-9: Continue with Installation
Warning: All data will be wiped from the device during installation.

AudioCodes Mediant 800 Specifications

General

Protocols	SIP, H.323
Digital Interfaces	1/2 E1/T1 PRI
Management	Web, CLI, SNMP
Mounting	19-inch rack
Codecs	G.711, G.729, G.722, G.723.1
Power Supply	100-240V AC
Operating Temperature	0 to 40°C
Storage Temperature	-25 to 70°C
Humidity	10% to 90% non-condensing
