Properties
The entire travel (from 0 – 100 %) is divided into 20 segments for recording the motor
running time.When passing a segment, the counter, shown as bar graph, increments.
The histogram is cyclically saved once a minute, in case a change has occurred.
Application
The motor running time position histogram shows the travel range within which the
actuator is predominantly operated.This allows to draw conclusions for the sizing
of the valve.
Display motor running time-position
Asset Management M1231
Histograms M0712
Motor RunTime-Position M0713

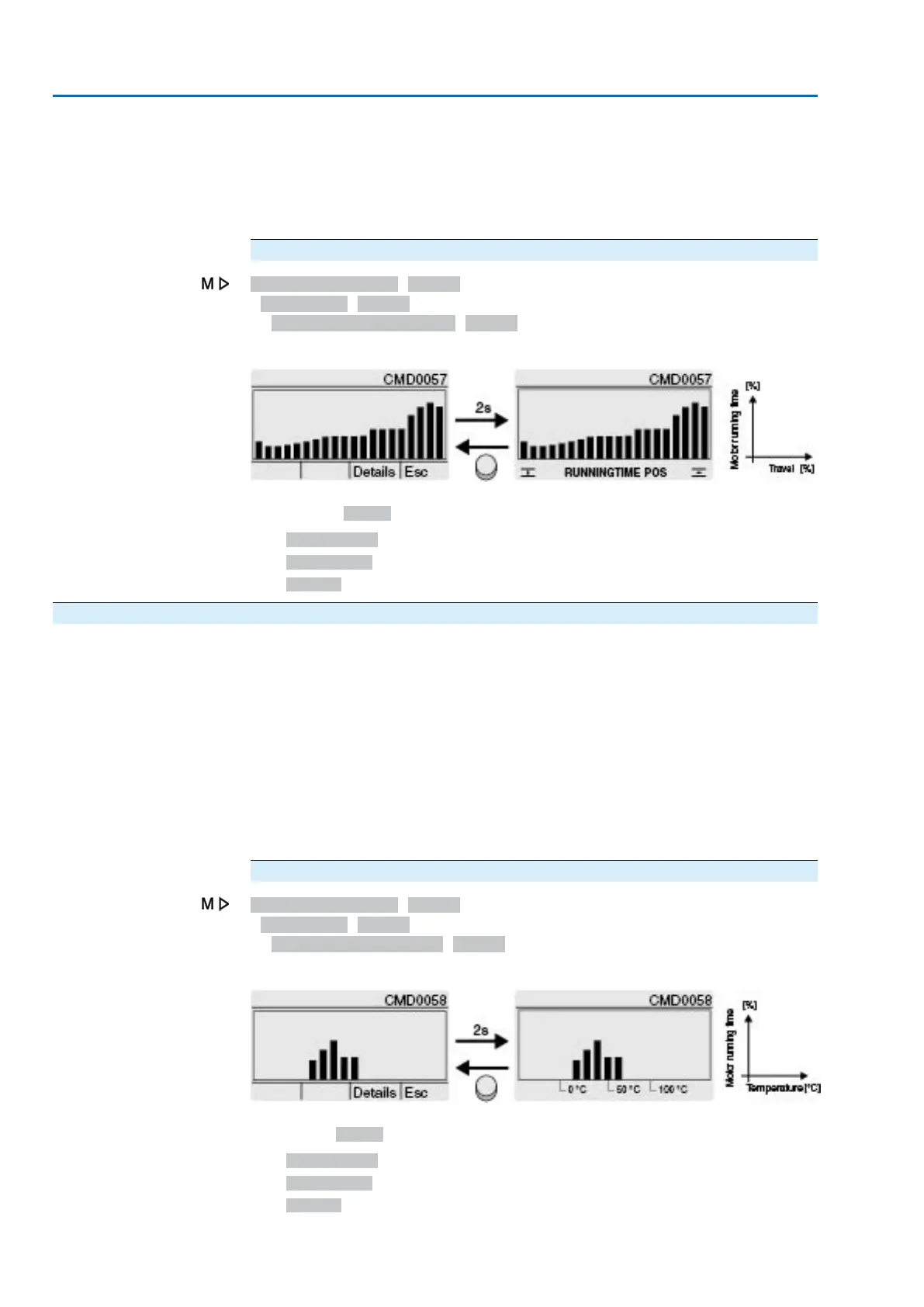

Figure 62: Example of a motor running time position histogram
The following detailed information is saved with the histogram (may be called up via
push buttons Details)
●
Starting date:; date of first running time measurement
●
Saving date:; date of last running time measurement
●
Scaling:Y-axis (motor running time)
15.4.2. Motor running time-temperature (histogram)
Conditions
●
MWG position transmitter in actuator
●
Temperature sensor in the motor (option)
Properties
The motor temperature is divided into the following segments:
< –20°C to –10°C, > –10°C to 0°C, > 0°C to 10°C, ..., 120°C to 130°C, > 130°C to
140°C, > 140°C.
During each operation, the counter of the segment corresponding to the current
motor temperature will be incremented.The result is shown in a bar chart.The
histogram is cyclically saved once a minute in case of change.
Application
The histogram indicates the ambient conditions (temperatures) at which the actuator
motor was predominantly operated.
Display motor running time-temperature
Asset Management M1231
Histograms M0712
Motor RunTime-Temp. M0715
Figure 63: Example of motor running time - motor temperature histogram
The following further information is saved with the histogram (can be requested via
push button Details)
●
Starting date: Date of first running time measurement
●
Saving date: Date of last running time measurement
●
Scaling: Y-axis (motor running time)
140
Actuator controls
Asset Management ACV 01.2/ACVExC 01.2 Profibus DP
