24-31-38 Completion of Alternator (Installation of Brush Holder ASSY)
Place Brush Holder Assembly E4A-91-410-000 carefully onto the alternator.
Make sure that the guide rail of alternator and brush holder E4A-91-410-000 are placed exactly!

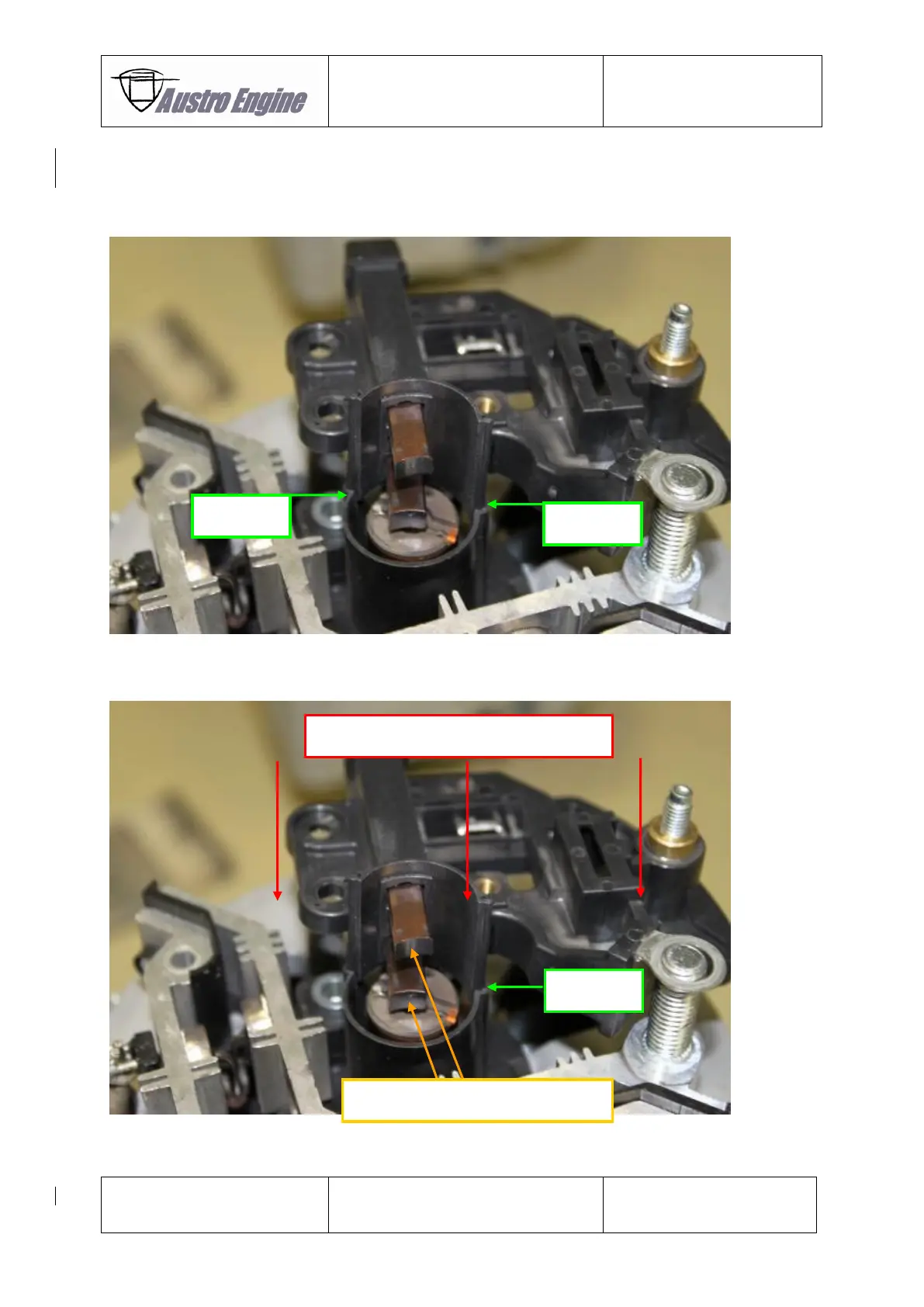

Fig. 24 - 37 Alternator with Brush Holder ASSY
Softly push the carbon brush into Brush Holder Assembly and move Brush Holder Assembly along the guide rail.
Fig. 24 - 38 Alternator with Brush Holder ASSY
Push direction of Brush Holder Assembly
Push direction of carbon brush
