73-00-60 Rail Pressure Sensor
73-00-61 Removal of the Rail Pressure Sensor
1. Remove the connectors (RPS), (PCV).
2. Remove the injector cover - refer to Chapter 85-00-11.
3. Open the coupling nuts [1].
4. Loose the coupling nuts [2] at the injectors to have more space during removal the
common rail.
5. Remove the screws [3].
6. Remove the common rail assy [4].
73-00-62 Installation of the Rail Pressure Sensor
1. Install the new common rail assy [4] and screw it down with 16 Nm.
2. Screw on the fuel lines on the common rail.
3. Torque the coupling nuts at the common rail with 27 Nm.
4. Torque the coupling nuts at the injectors with 22 Nm.
5. Install the injector cover - refer to Chapter 85-00-12.
6. Attach the connectors (RPS), (PCV).
7. Clean the working area.
8. Perform an engine ground run according to Chapter 71-00-03.
9. After the ground run inspect fuel system for leakage.

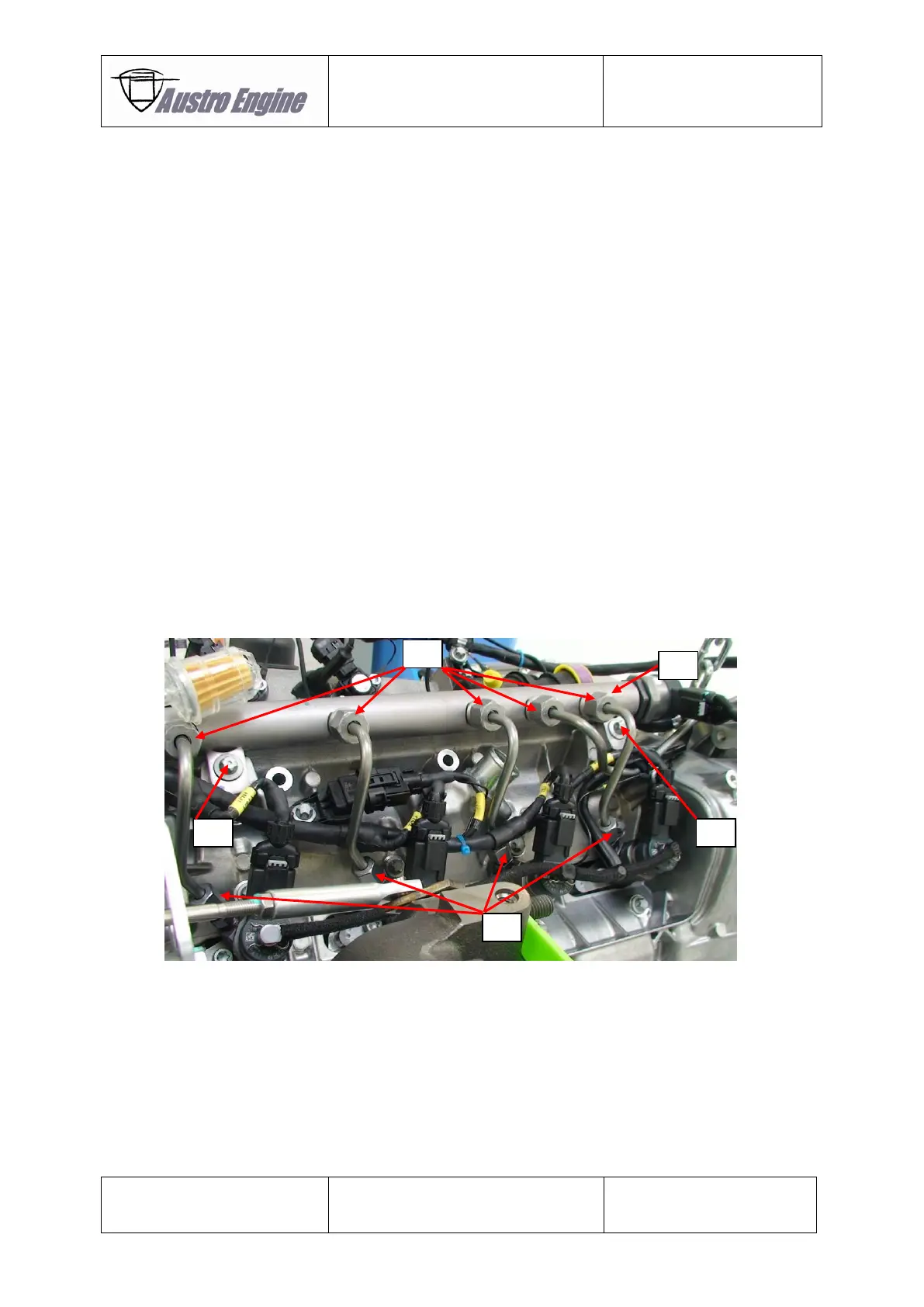

Fig. 73 - 13
73-00-70 Rail Pressure Control valve
Use the same procedure from Chapter 73-00-60.
