85-30-60 Installation of the front cylinder head cover
1. Clean the sealing surface of the front cylinder head cover [01].
2. Apply engine sealant (see consumable list) on the sealing surface.
3. Check the correct installation of the O-ring [03]. Only use a new O-ring.
4. Put the front cover in position at the cylinder head and torque screws [02] with 12 Nm.

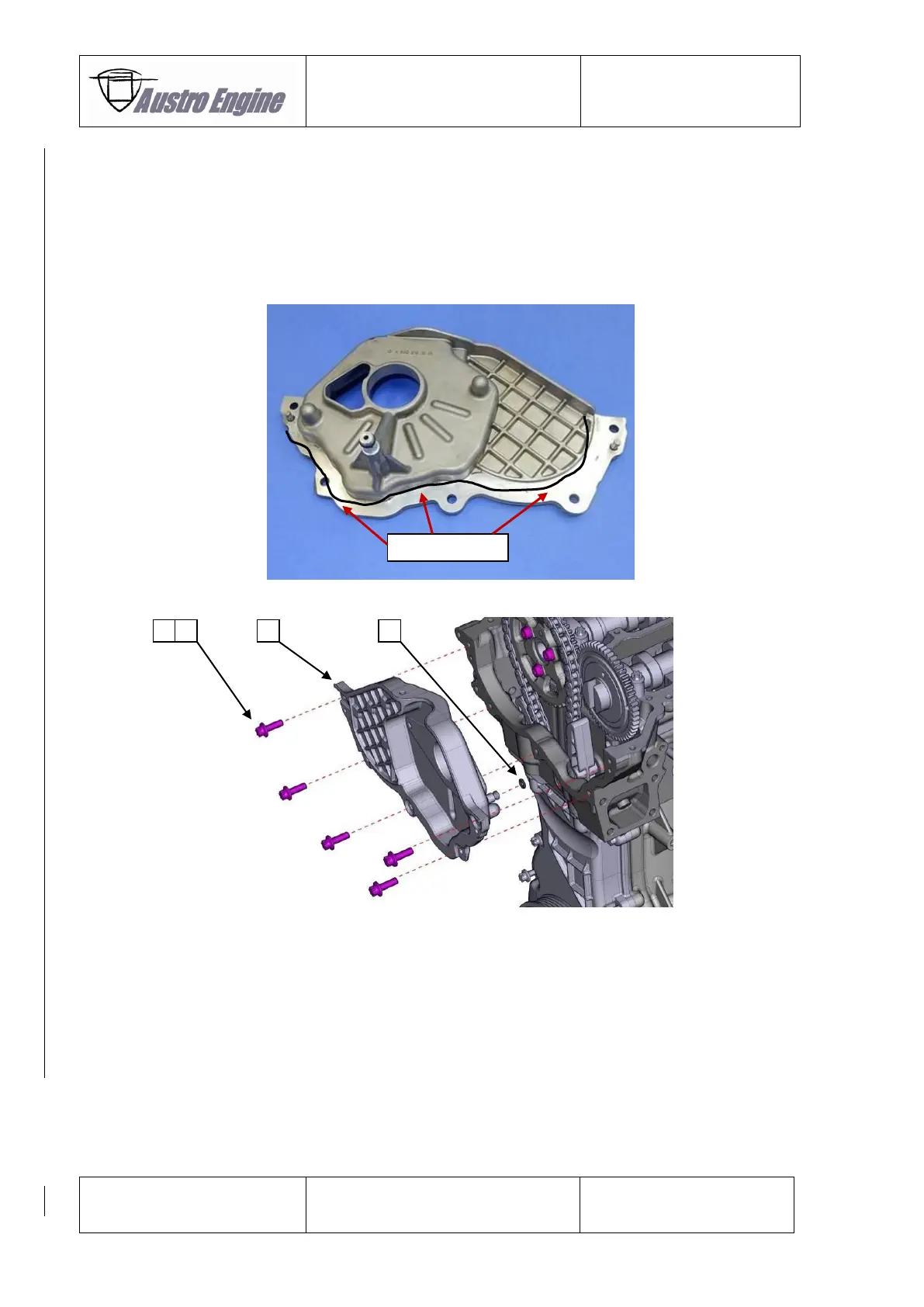

Fig. 85 - 86
Fig. 85 - 87
85-30-61 Installation of the back cylinder head cover
1. Clean the sealing surface of the back cylinder head cover [01].
2. Apply engine sealant (see consumable list) on the sealing surface.
3. Check the correct installation of the O-ring [04]. Only use a new O-ring.
4. Put the back cover in position at the cylinder head and torque screws [02] and [03] with 12 Nm.
