85-70-30 Heat Exchanger
85-70-31 Removal of the Heat Exchanger
1. Remove the oil filter housing drain line - refer to Chapter 79-00-11.
2. Remove the oil filter housing - refer to Chapter 79-00-61.
3. Remove the screws [1] from the heat exchanger [2].
4. Remove the heat exchanger.
5. Clean the sealing face.
85-70-32 Installation of the Heat Exchanger
1. Install new gasket.
2. Put heat exchanger in place
3. Screw heat exchanger down and torque screws [1] with 9 Nm.
4. Install the oil filter housing - refer to Chapter 79-00-62.
5. Install the oil filter housing drain line - refer to Chapter 79-00-12.
6. Clean the working area.
7. Check the oil level – refer to Chapter 12-20-01.
8. Perform an engine ground run according to Chapter 71-00-03.
9. After the ground run inspect oil and coolant system for leakage.

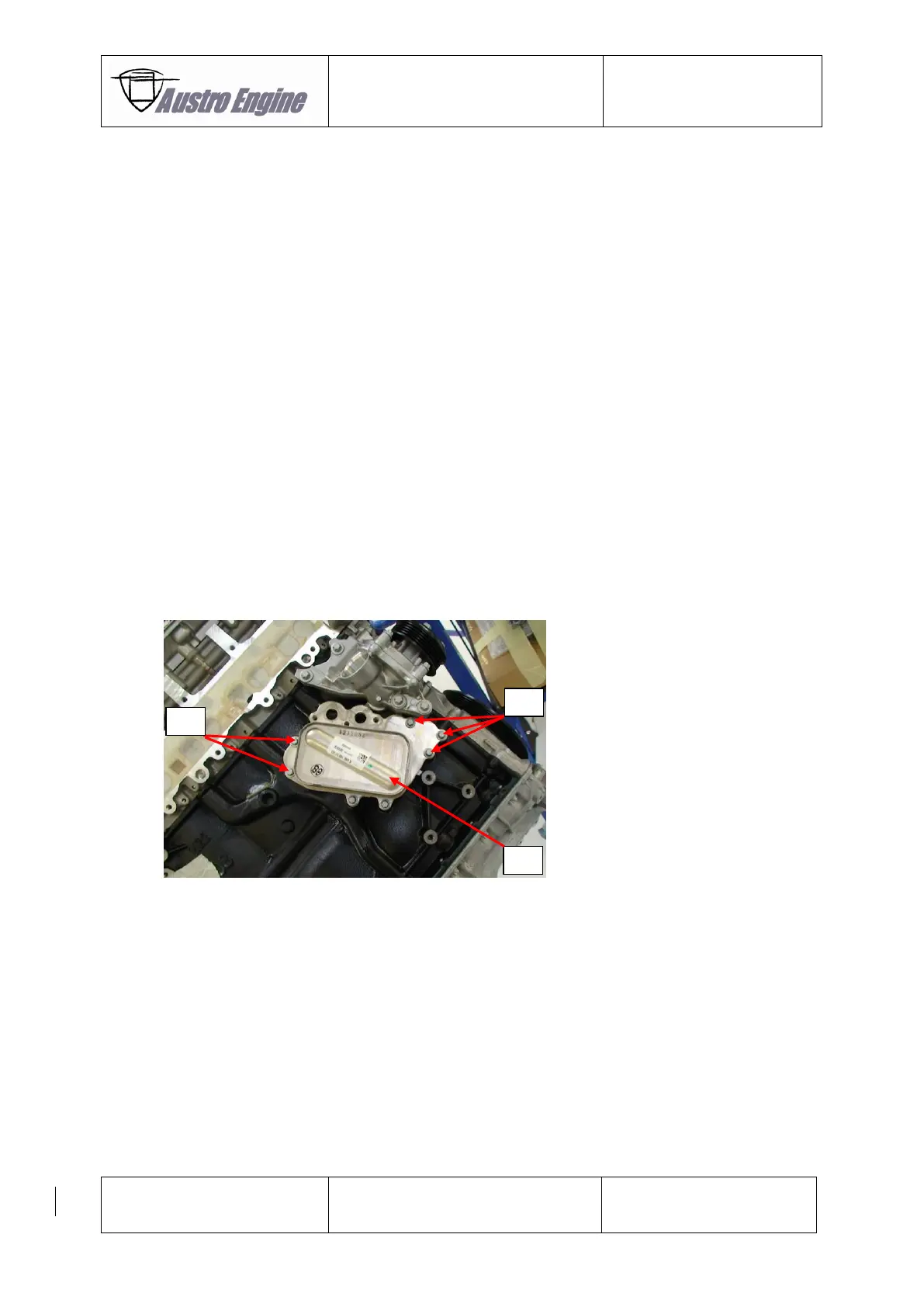

Fig. 85 - 121
