Components of the A/C System:
(For installation and maintenance details refer to the applicable Aircraft Maintenance
Manual)
 Coolant radiator
 Cabin Air Heat Exchanger
 Coolant expansion Tank
 Overpressure Valve
 Low pressure Valve
 Silica Reservoir
 Coolant hoses
Standard Cooling Circuit:
Example for acceptable cooling circuit:
(For particular installation refer to the applicable Aircraft Maintenance Manual)

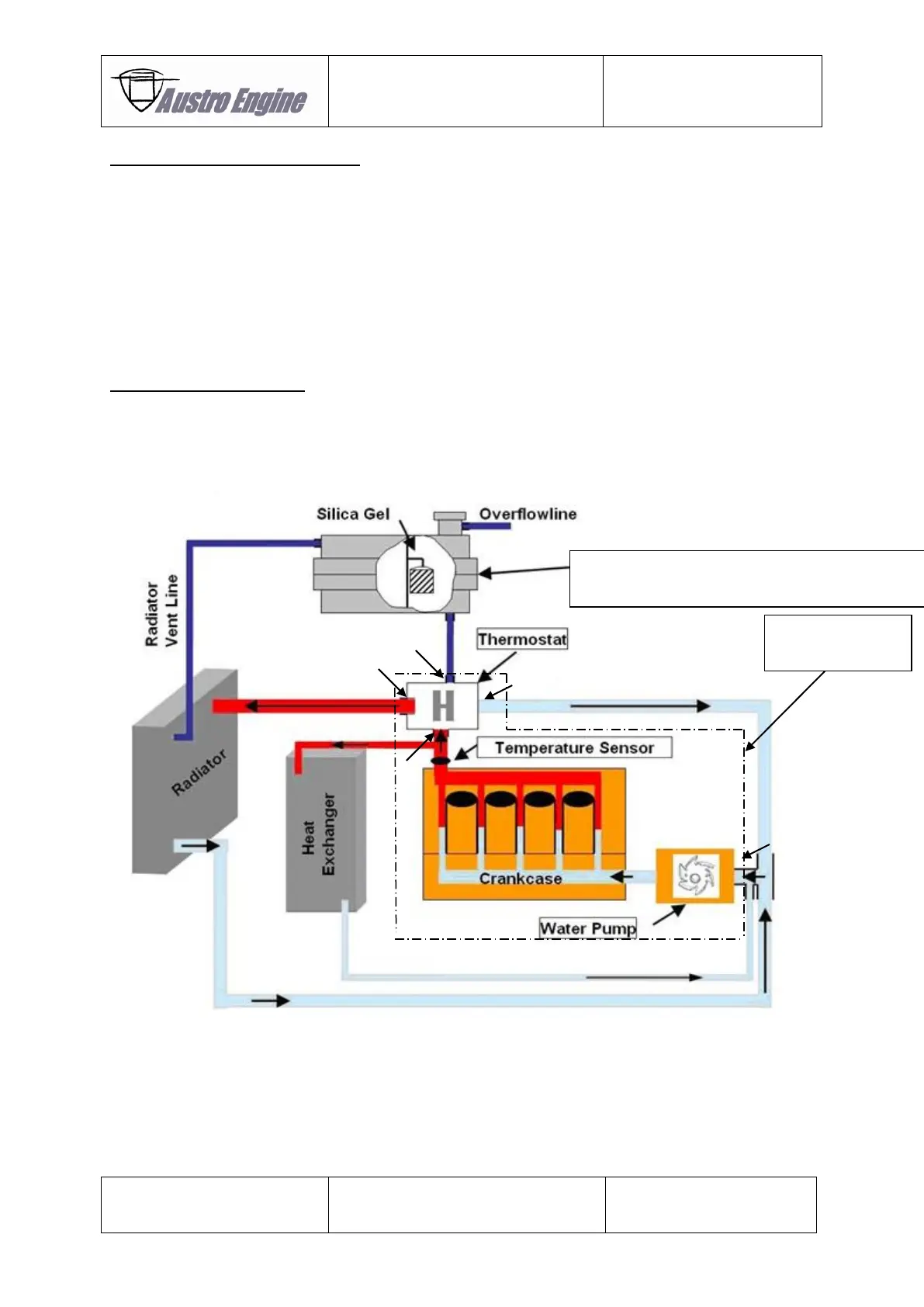

Fig. 01 - 12 Standard Cooling Circuit
D 2
Expansion Tank
(incl. Overpressure and low pressure valve)
D 4
D 3
D 1
D 5
Part of certified
engine
