46 AutoFarm GPS AutoSteer
Wheel Angle Sensor Installation Guidelines

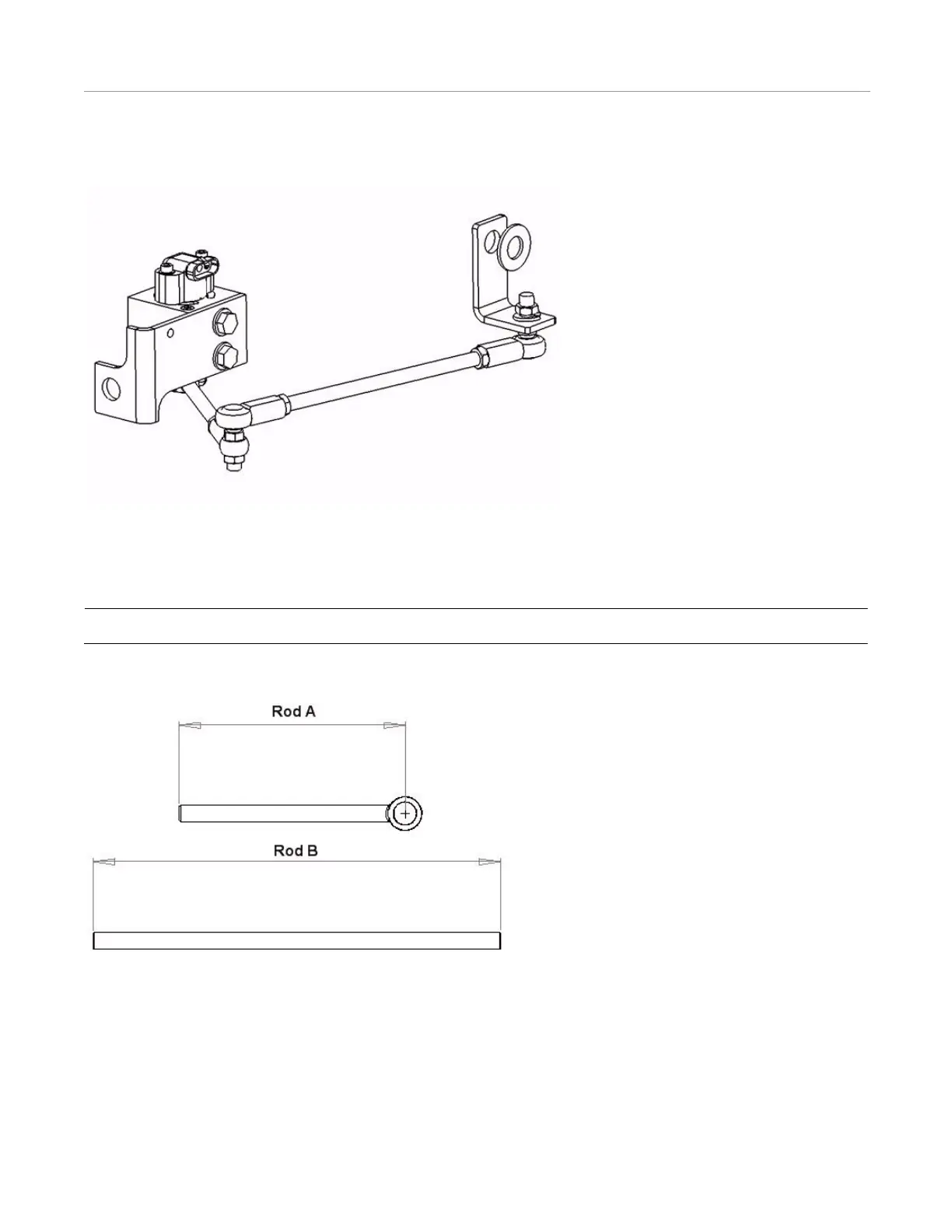

Figure 4-13 Assembled Wheel Angle Sensor Assembly Example
Measure and mark the two rods for cutting, according to the required length.
Note: Figure 4-14 shows the measurement points used to properly cut the linkage rods.
Figure 4-14 Linkage Rod Cut Length Measurement Points
Use a hack saw to cut the linkage rod to length while it is held in a bench vise. See Figure 4-15.
