Hardware Installation Guide 55
SA Module Installation

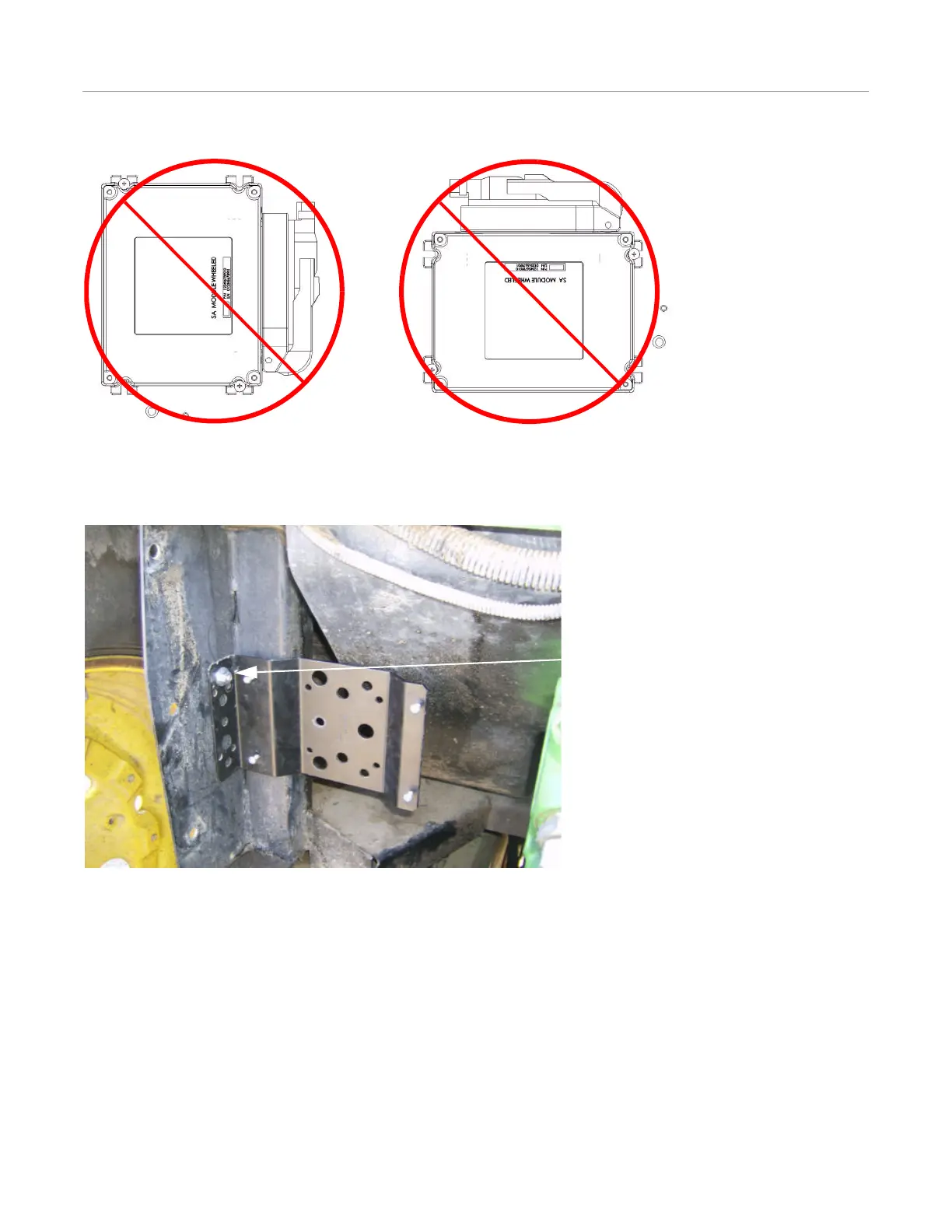

Figure 5-4 Incorrect SA Module Orientation
Mount the SA module bracket in a protected position using existing bolts if available. You can also drill holes on the machine
to secure the SA Module, if necessary. See
Figure 5-5.
Figure 5-5 SA Module Bracket Installed
Mount the SA Module to the bracket and secure using four Phillips screws. See Figure 5-6.
