AutoFarm A5 - Page 68

56 AutoFarm GPS AutoSteer
SA Module Installation

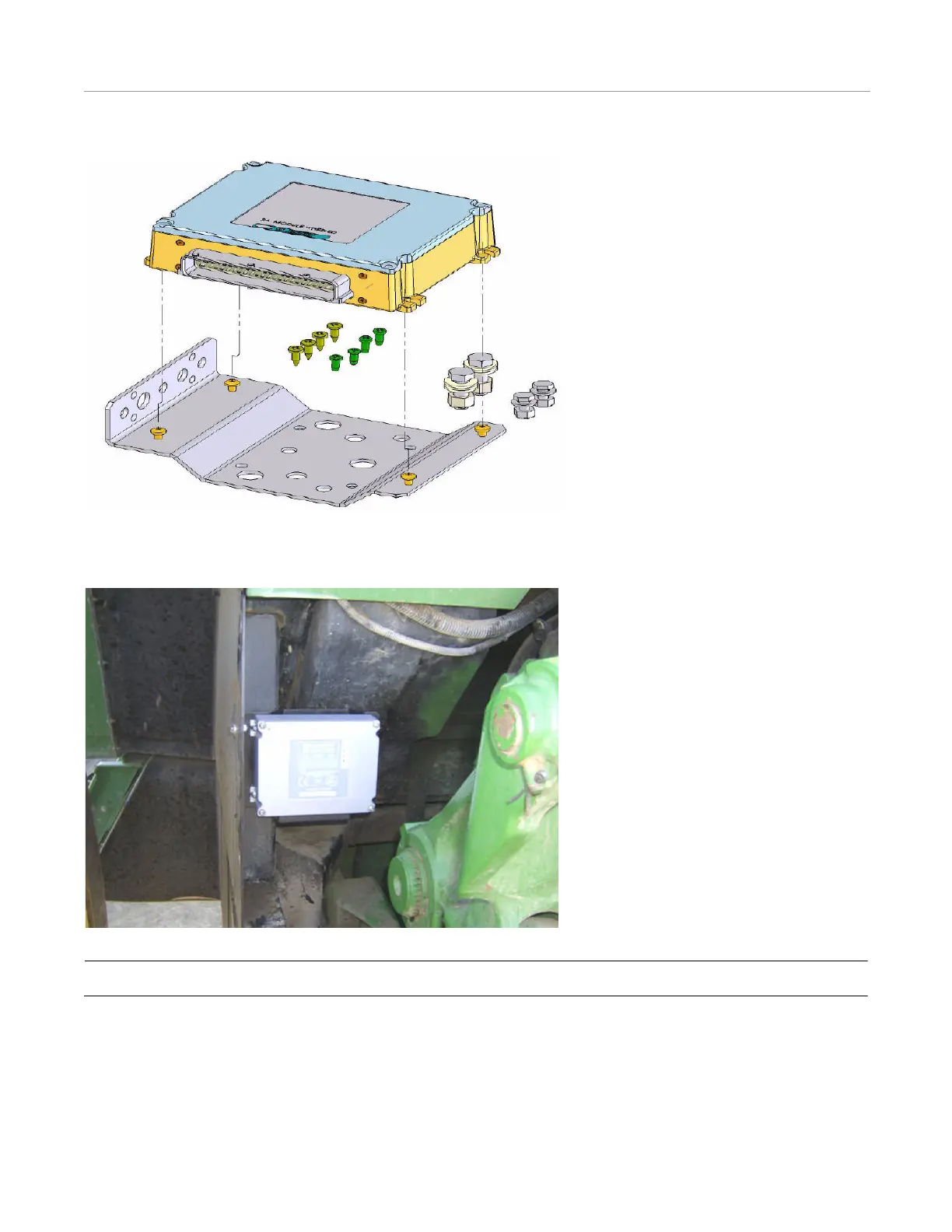

Figure 5-6 Mounting the SA Module to the Bracket
Figure 5-7 shows an SA Module installation example.
Figure 5-7 SA Module Mounted
Note: The harness must be routed in a protected position to avoid damage from the moving parts.
