AutoFarm A5 - Page 81

Hardware Installation Guide 69
Installation Procedure
2. The complete User Terminal installation is shown in Figure 7-5.

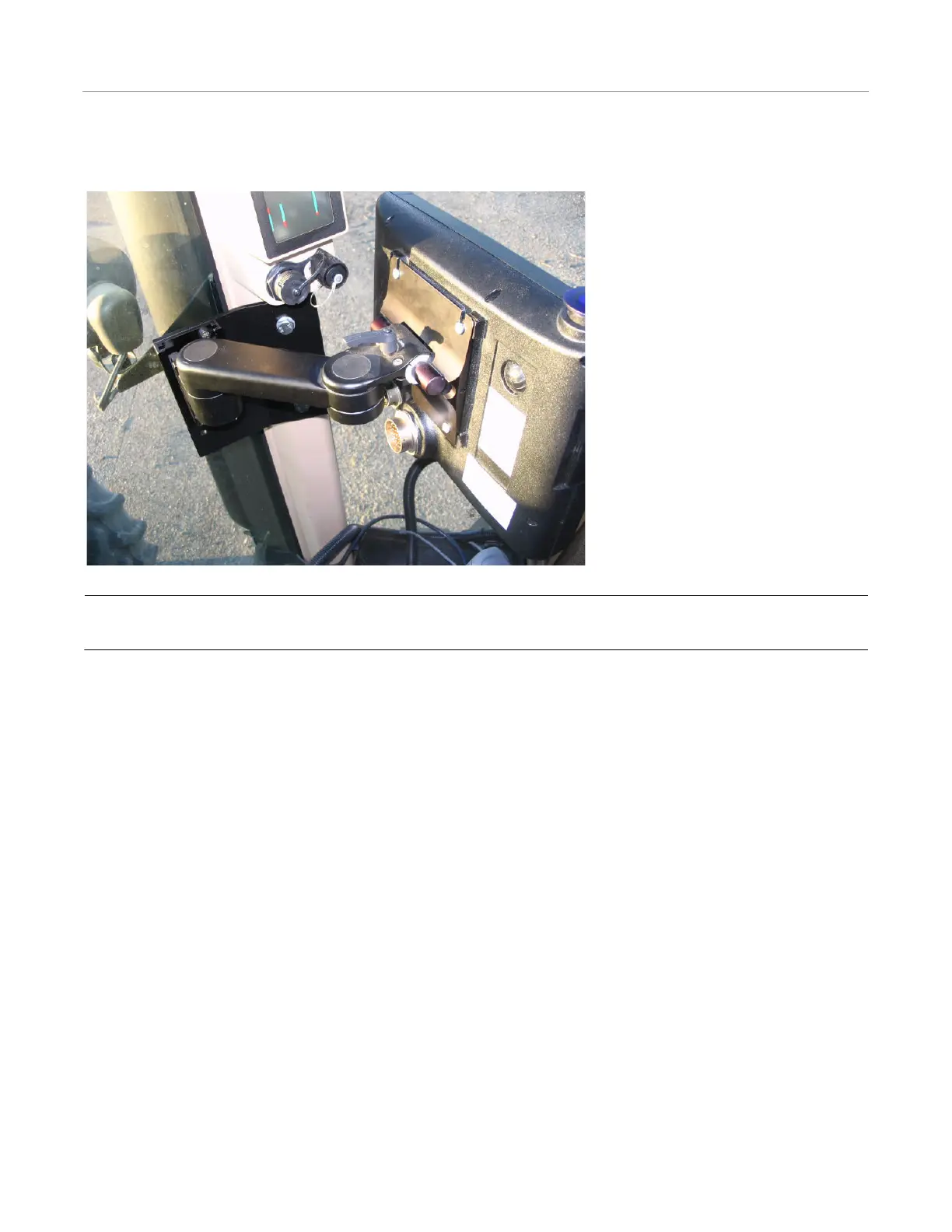

Figure 7-5 User Terminal Installed
Note: The User Terminal bracket is angled and can be mounted facing forward or backwards for mounting options. User
preferences determine the bracket position used.
