Intrusion, period (milliseconds): Time of intrusion alarm pulses in milliseconds
Fraud, signal to send: Type of audible alarm in case of fraud: Continuous, intermittent or impulse
Fraud, period (milliseconds): Time of fraud alarm pulses in milliseconds
Type of LEDs for pictograms: Type of LEDs used for the pictogram option
13.4. inputs

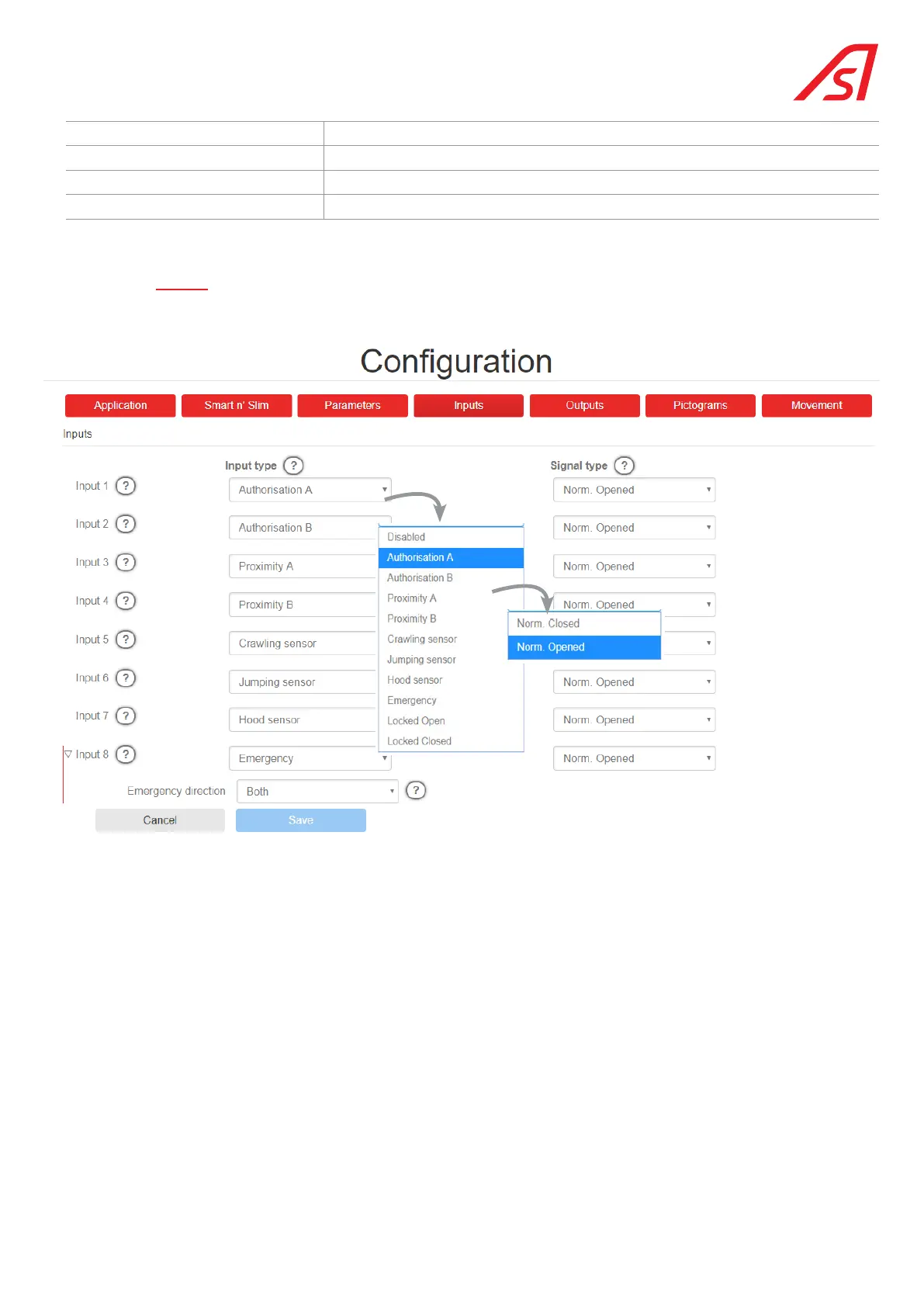

It is possible to assign one of the predefined functions to each of the inputs available on the AS1635 circuit board. These
are selectable in a drop-down menu.
Most of the functions offered are only useful if the corresponding options are installed on the product: pressure detection
on the hood, TOF camera between the TriLane legs, etc. The signal reading logic can be inverted by choosing a Normally Open
or Normally Closed contact.
The inputs are physically connected to the CN2 connector of the AS1635 circuit board.
Each function can be freely assigned to each input. The same function can be used on several inputs (for example, in the
case of several passage authorisation readers). In this case, the parameters of the function apply to all the inputs having
this same function.
The status of the inputs can be viewed on the circuit board by means of LEDs 12 to 20.
