AS1635-MT-EN-03
p. 25/46

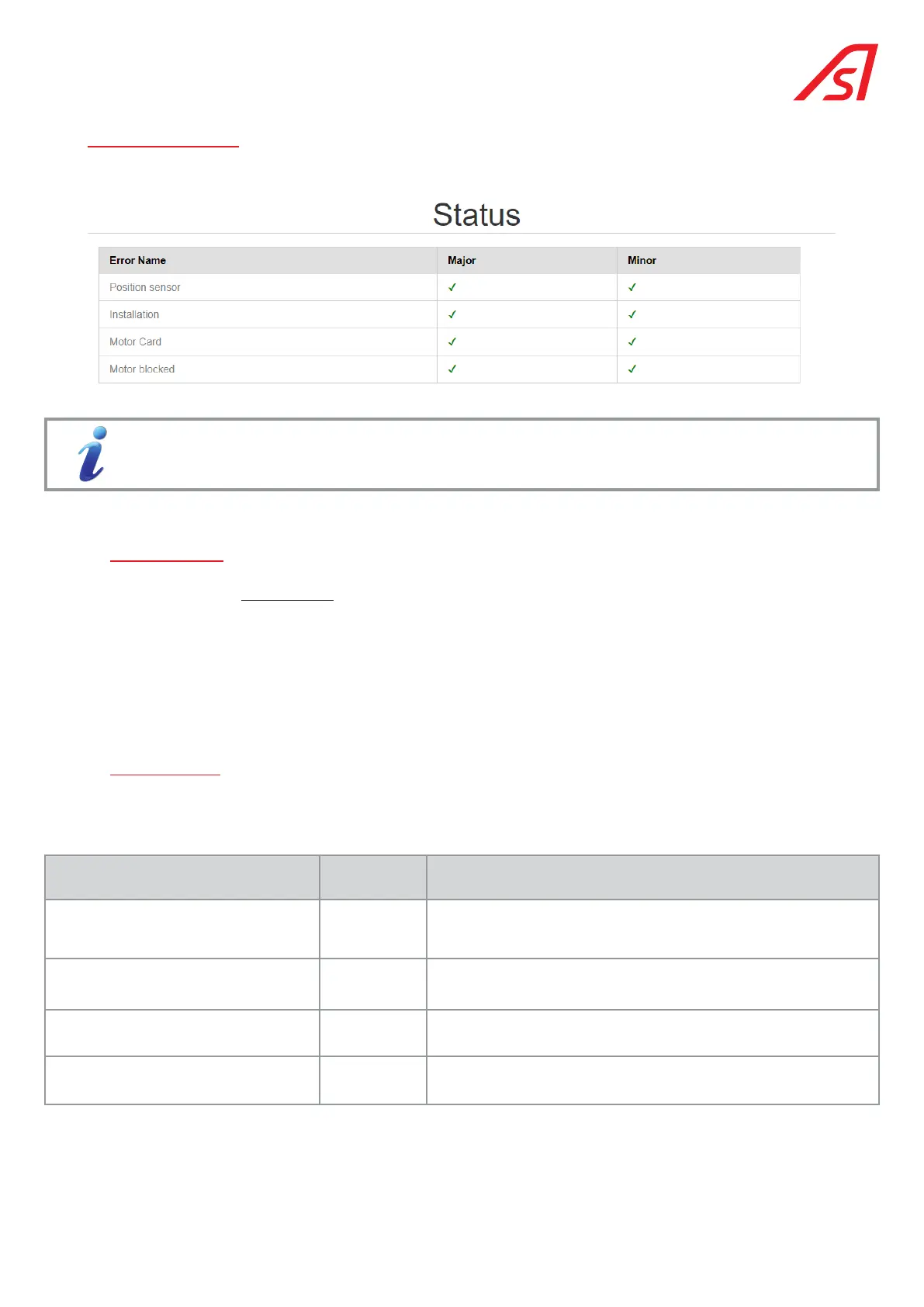

9. STATUS PAGE
The Status page gives an overview of the self-tests carried out continually by the circuit board.
The HMI located on the AS 1635 circuit board also indicates possible error messages via the diagnostic LEDs (
Ch.7. IDENTIFICATION PAGE, page 22).
Two types of faults can be highlighted during these self-tests:
9.1. major defect
The equipment is taken Out of Service:
• The turret of the TriLane locks up, making it impossible to pass through.
• Except in the Emergency mode; in this case, the movement of the turret is free.
• The pictograms (if present) turn red,
• and the fault type is indicated on the HMI as well as on a digital output of the card, if this is the chosen configuration
( 12.3. Outputs, page 30).
9.2. minor defect
The Trilane remains operational, but its behaviour must be monitored.
Depending on the type of defect, it may be necessary to intervene on the equipment as follows.
Type of error Minor defect Major defect
Position sensor disconnected N/A Check the connecting cable between the position sensor and the
AS1635 circuit board (connector CN17)
Rotation out of calibration detected N/A Follow the calibration procedure
Position sensor not calibrated. N/A Follow the calibration procedure
No input assigned N/A Configure the inputs using the Configuration > Inputs menu (13.4.
Inputs, page 34).
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using this information for any purpose other
than the use of the products or the execution of the project to which it refers and from communicating it to third parties without prior written agreement of Automatic Systems. The
document is subject to change without notice.
