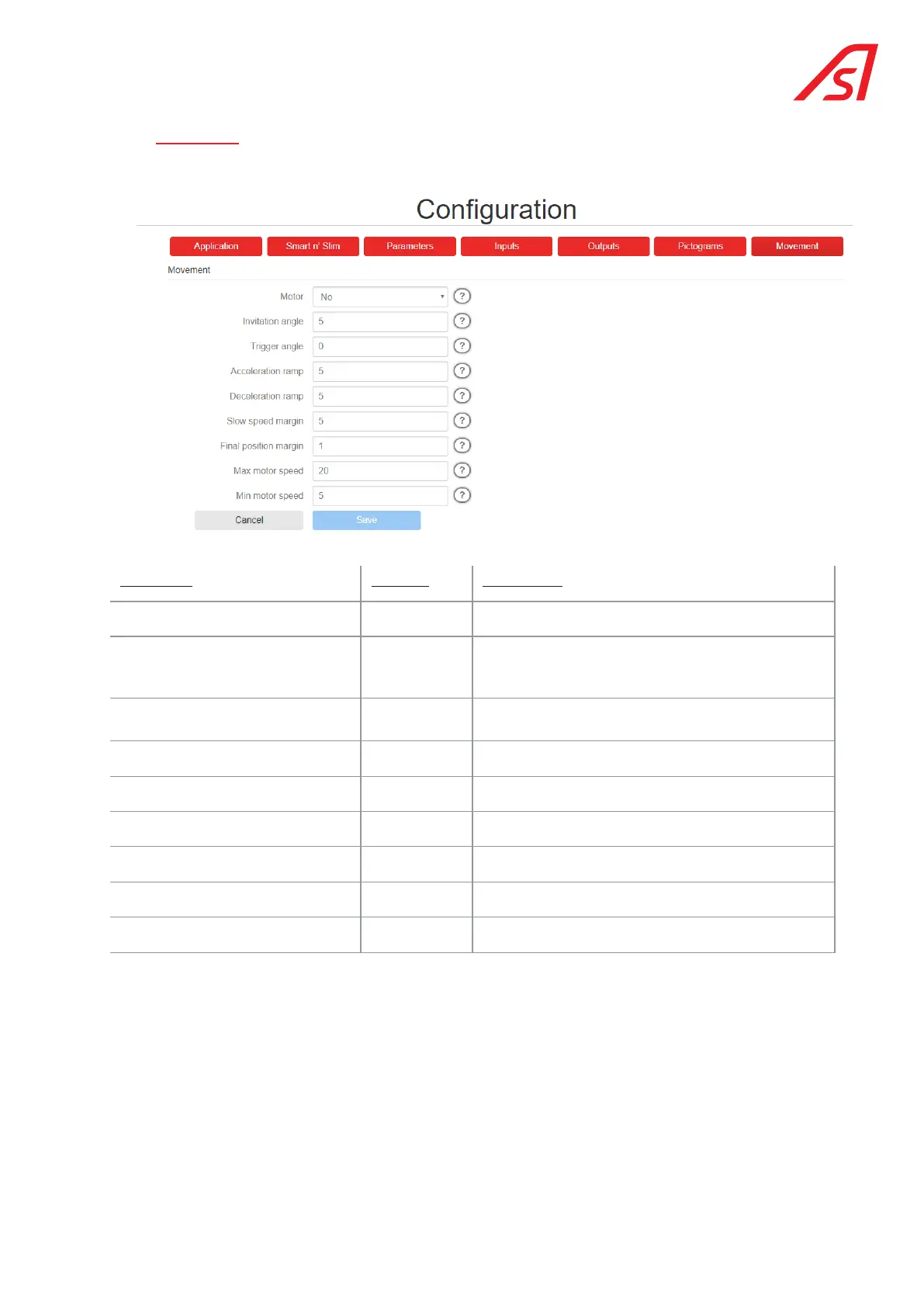

13.6. movement
Allows the management of all the aspects of the movements of the turret (in the motorised version).
Parameter: Value(s): Description:
Motor Yes/No Motorisation option selected or not
Invitation angle 0° to 15° After a passage authorisation, the motor makes a
small rotation of the turret (5°), inviting the user to
push on the horizontal arm.
Trigger angle 0° to 15° Manual rotation that must be performed by the user
to engage the motor system.
Acceleration ramp 0° to 45° Angle of rotation to reach the maximum speed
Deceleration ramp 0° to 80° Angle of rotation to return to the minimum speed
Slow speed margin 0 to 50 Maximum deviation before declaring an error situation
Final position margin 0° to 5° Maximum deviation before declaring an error situation
Maximum motor speed 0 to 240 Final position speed of the acceleration ramp
Minimum motor speed 0 to 240 Final position speed of the deceleration ramp.
