18. ELECTRICAL DIAGRAMS

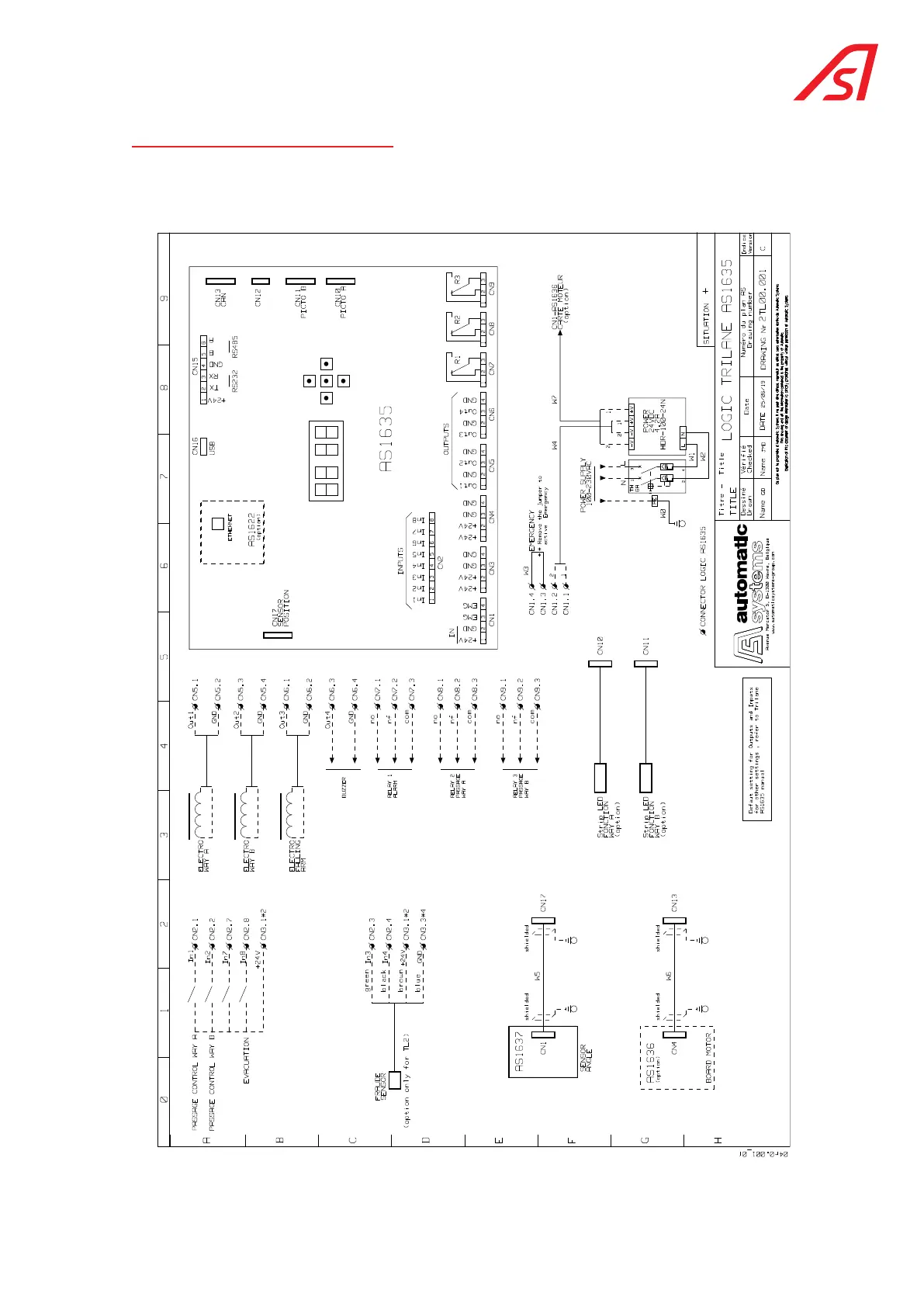

By way of illustration, here is an example of a circuit diagram for a TriLane equipped with a functional pictogram in both
directions, a TOF camera and an AS1636 motorisation card. The only valid reference circuit diagram is, however, the one
that comes with your TriLane and that takes into account the selected options and the factory settings.
