Avaya 9600 Series Configuring

DJH Reviewed:
SPOC 07/08/2011
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
22 of 51
SM6-1_CMES
4.1. Define SIP Domains
Expand Elements  Routing and select Domains from the left navigation menu.
Click New (not shown). Enter the following values and use default values for remaining fields.
 Name Enter the Authoritative Domain Name specified in Section 3.4.
For the sample configuration, “dr.avaya.com” was used.
 Type Select “sip” from drop-down menu.
 Notes Add a brief description. [Optional].

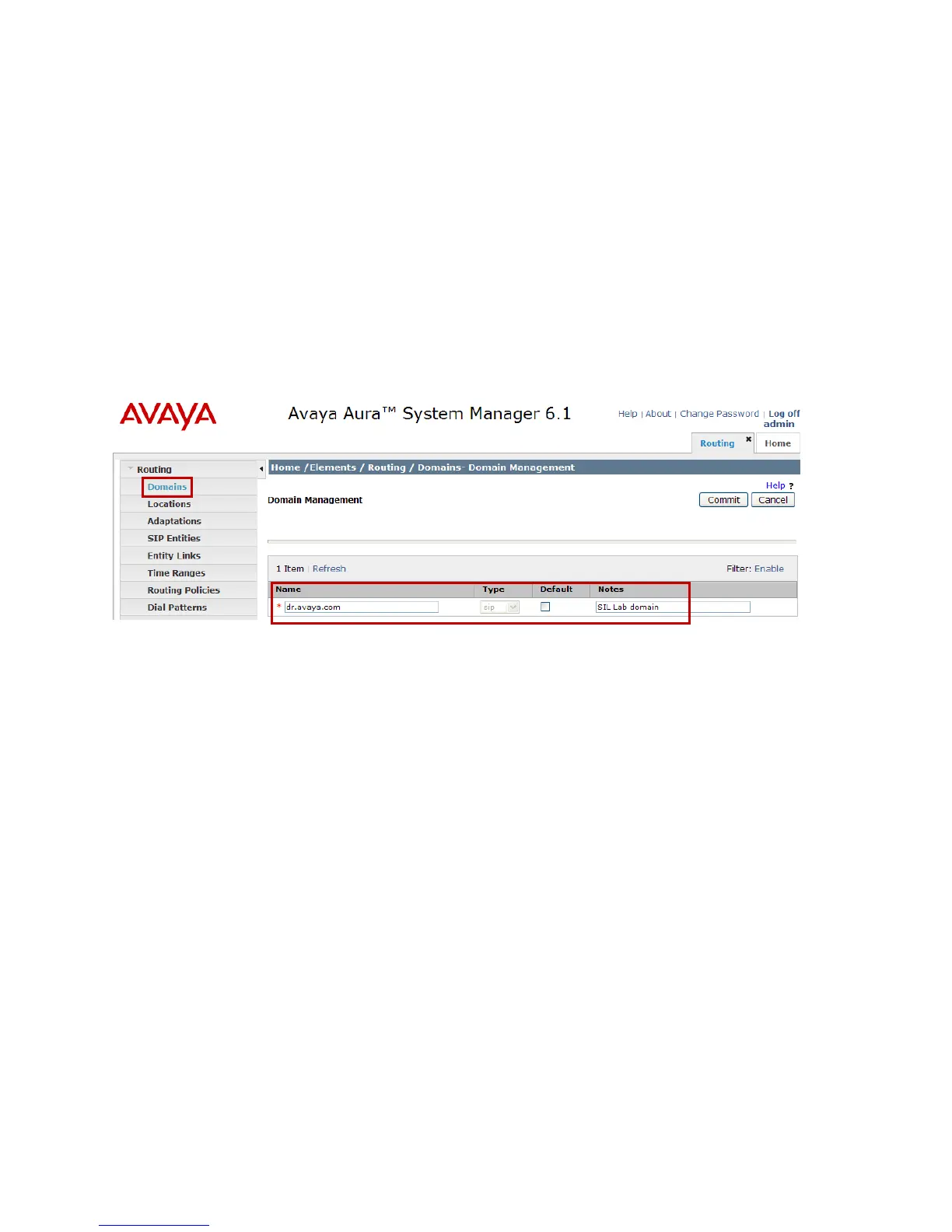

Click Commit to save. The screen below shows the SIP Domain defined for the sample
configuration.
