DS1/T1 CPE loopback jack
Issue 9.1 June 2006 427

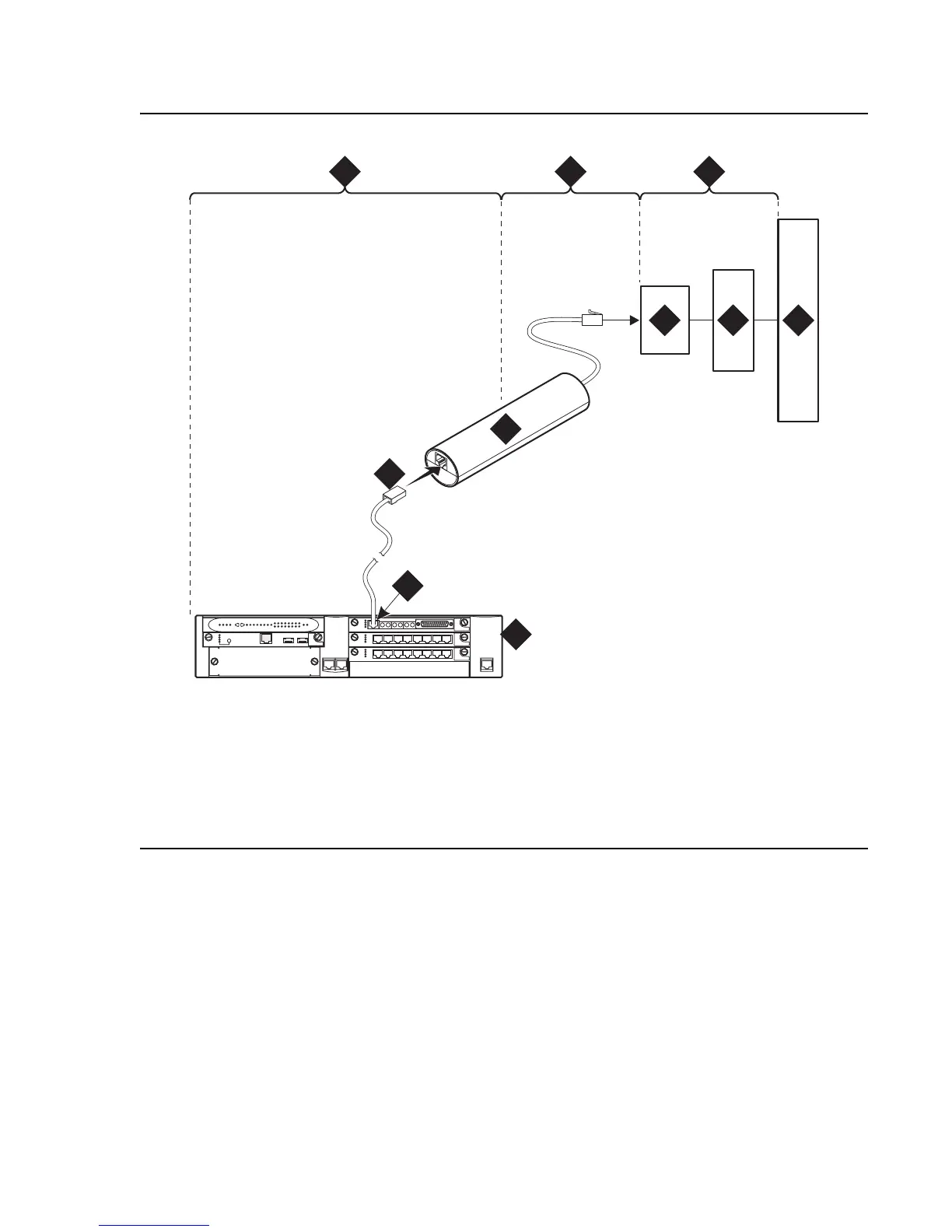

Figure 39: Network interface at smart jack for an MM710 multi-media module
Figure notes:
1. Span section 1
2. Span section 2
3. Span section 3
4. G700 or G350 Media Gateway
5. E1/T1 port on an MM710
multi-media module
6. RJ-48 to network interface (up to 1000 ft.
[305 m])
7. Loopback jack
8. Network interface smart jack
9. Interface termination or fiber multiplexer (MUX)
10. Central office
prdfcs7a KLC 080602
ALM
TST
ACT
123456 87
ALM
TST
ACT
123456 87
REMOVE
ALM
TST
ACT
OK TO
SHUT DOWN
SERVICES USB 1 USB 2
E1/T1 EIA 530A DCE
ALM
TST
ACT
SIG
EISO EMSM EOSI
1 2 3
4
5
6
7
8
9
10
