Installing a registered music source on a G700 or G350 Media
Gateway
Figure 47 show the connections for the music-on-hold feature on a G700 Media Gateway for a
registered source.
Note:
Note: The G350 Media Gateway’s physical connection with the MM711 Analog Media
Module, MM714 Analog Media Module, or fixed analog ports (LINE 1 or 2) on the
front panel is the same as the G700 Media Gateway’s connection with the
MM711 Analog Media Module.
Note:
Note: If you want multiple music sources, you must use multiple ports on the MM711
Analog Media Module.

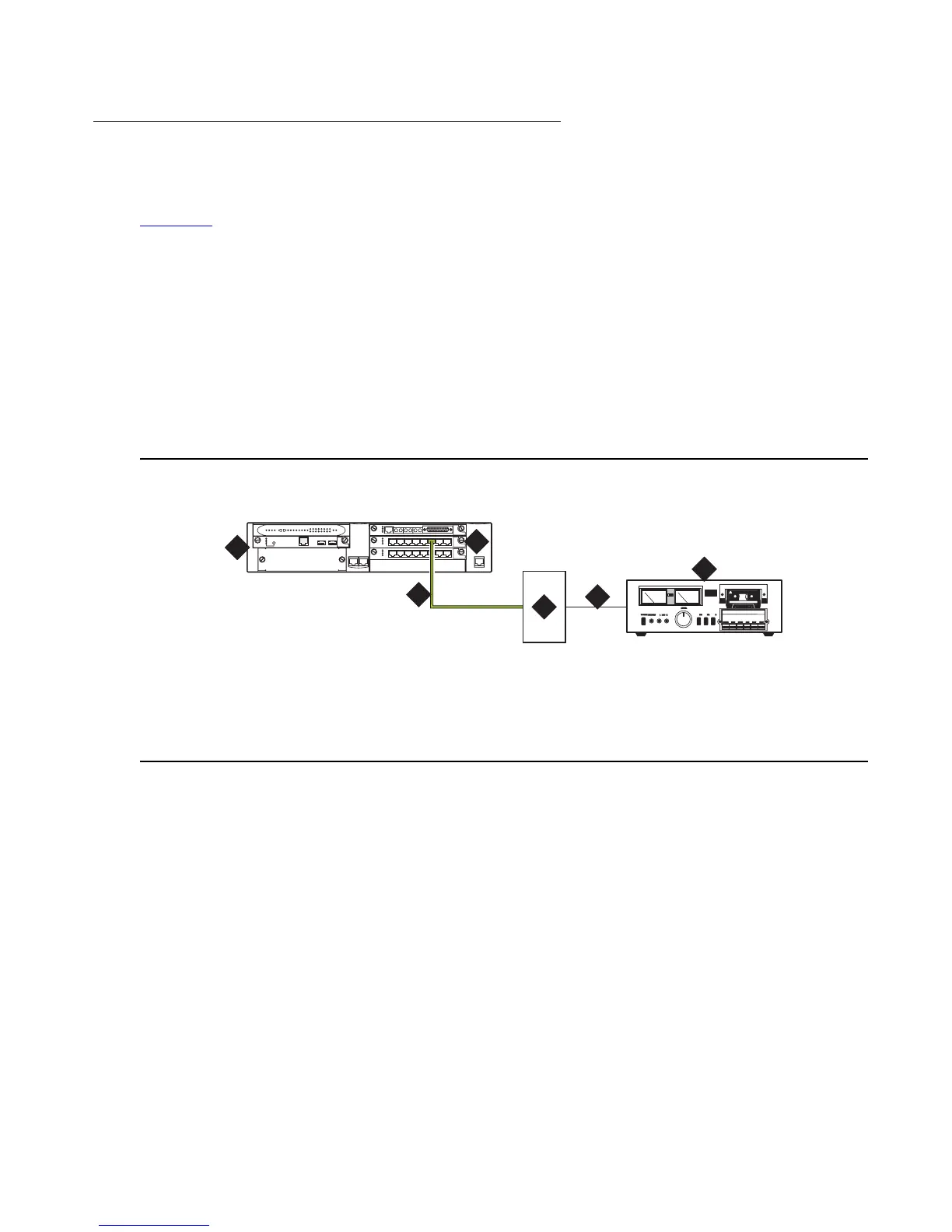

Figure 47: Registered music-on-hold equipment connecting to KS-23395-L4 for a G700
Media Gateway
To connect a registered music-on-hold source to a G700 or G350 Media Gateway
using a KS-23395-L4 coupler:
1. Connect one end of an RJ-45 cable to a port in the MM711 Analog Media Module.
For a G350 Media Gateway only, connect the RJ-45 cable to a port in an MM714 Analog
Media Module or a fixed analog (LINE 1 or 2) port on the G350 front panel.
2. Connect the KS-23395-L4 coupler to the customer-supplied music source.
Normally, you simply use a 8-pair modular cord.
3. Administer the switch for the new equipment.
Figure notes:
1. G700 Media Gateway
2. MM711 Analog Media Module
3. RJ-45 connection
4. KS-23395-L4 coupler
5. 8-pair modular cord
6. Music source
cydfhld2 KLC 021303
ALM
TST
ACT
123456 87
ALM
TST
ACT
123456 87
REMOVE
ALM
TST
ACT
OKTO
SHUTDOWN
SERVICES USB1 USB2
E1/T1 EIA 530A DCE
ALM
TST
ACT
SIG
EISO EMSM EOSI
1
2
4
6
5
3
