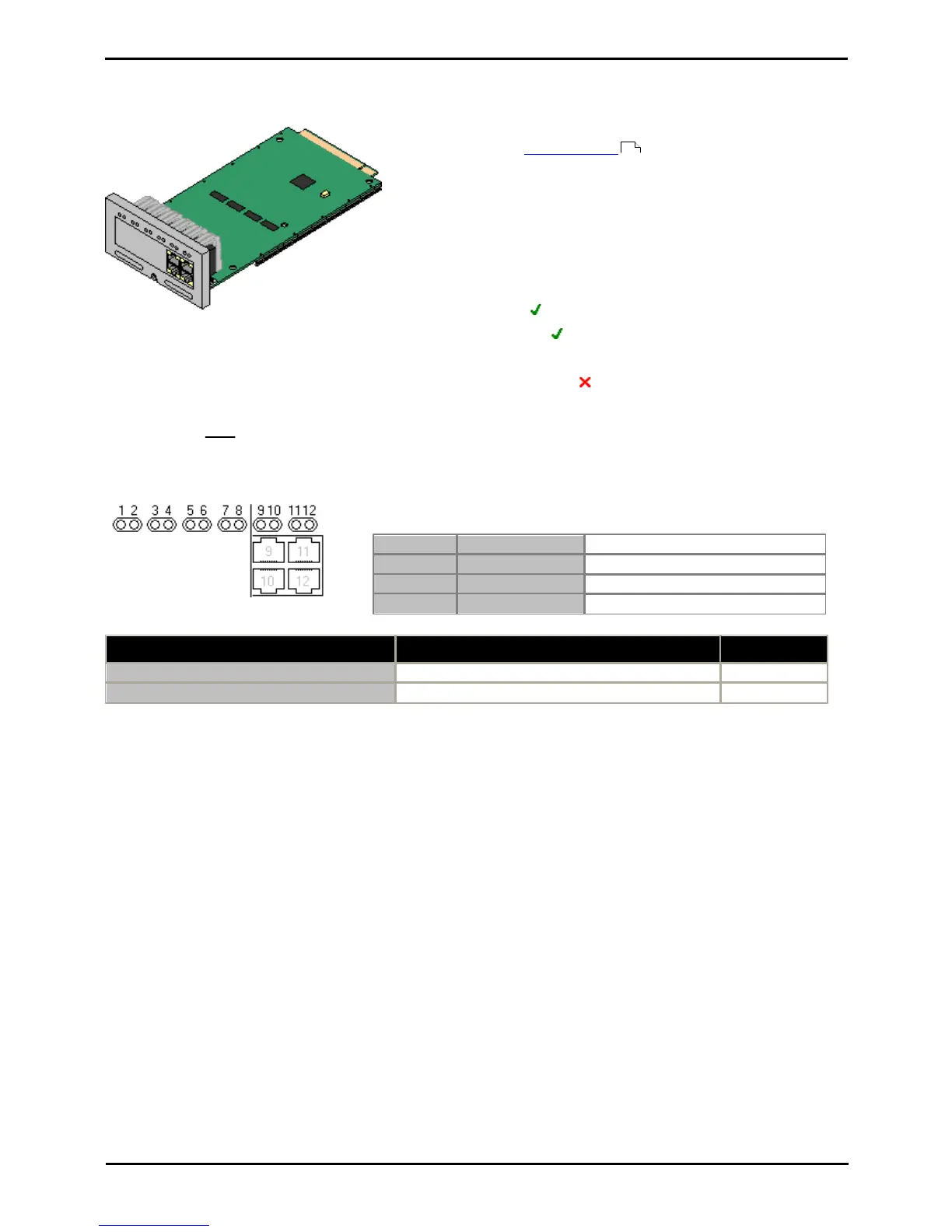

10.3.1 4-Port Expansion Card
This card is used to add 4 additional expansion ports to the IP500 and IP500 V2 control unit. This card is only supported in
slot 4.
· Supports
Provides 4 additional expansion ports for connection of external expansion
modules.
· Supported Expansion Modules: The following external expansion modules are
supported:
· IP500 Analogue Trunk Module
· IP500 BRI So Module
· IP500 Digital Station Module
· IP500 Digital Station Module A
· IP500 Digital Station Module B
· IP500 Phone Module
· IP400 Digital Station V2 Modules
· IP400 Phone V2 Modules
· IP500 Control Unit:
· IP500 V2 Control Unit:
· Maximum per Control Unit: 1 - Right hand slot 4 only.
· IP500 Trunk Card Support: .
· Each external expansion module is supplied with a blue 1 meter (3'3'') expansion interconnect cable. This
cable must be used when connecting to expansion ports on the rear of a control unit.
· When connecting to expansion ports on an IP500 4-Port Expansion card, a yellow 2 meter (6'6") expansion
interconnect cable can be used in place of the standard blue cable. 4 Yellow cables are supplied with the IP500
4-Port Expansion card.
· LEDs 1 to 8 are used for the expansion ports on the rear of the control unit.
LEDs 9 to 12 are used for the card's own expansion ports.
Green
On
Expansion module present.
Red
Flashing
Initializing.
Red
On
Error.
Orange
Regular Flash
Base card okay.
Name
Description
SAP Code
IPO IP500 EXP CARD 4PT
Includes 4 yellow 2 metre interconnect cables.
700472889
IPO EXP CABLE RJ45/RJ45 2M YELLOW
Only for use with the 4-Port Expansion card.
700472871
