10.9.4 Phone V2

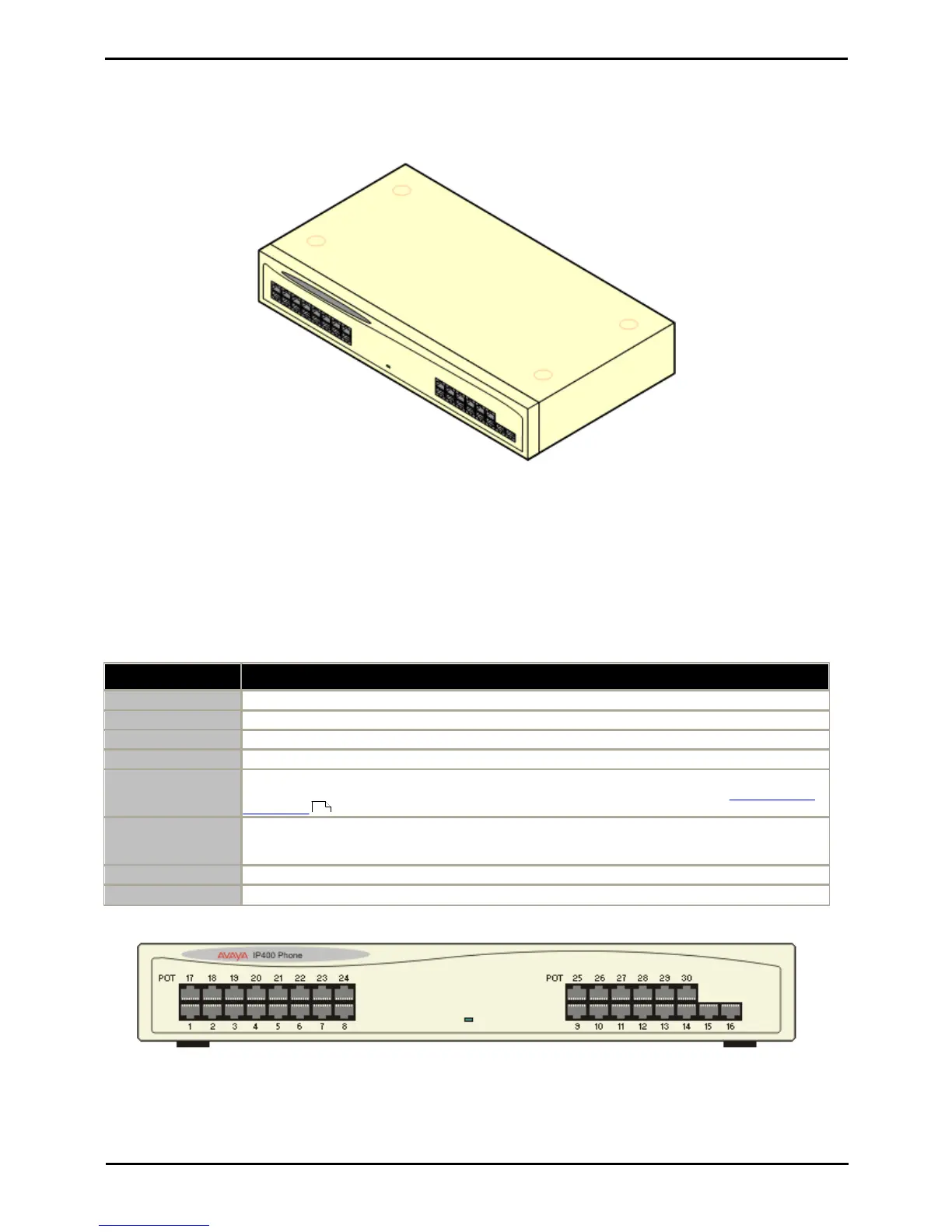

The IP400 Phone V2 module (also known as the Phone V2 module) is used to add additional PHONE ports to an IP Office
system. PHONE ports are used for analog phones.
The Phone V2 module is available in 8, 16 and 30 port variants, referred to as the Phone 8, Phone 16 and Phone 30
respectively.
The Phone V2 module supersedes the original IP400 Phone module, now referred to as the Phone V1. The module version
is indicated by labels on both the base and the rear of the module. Key changes are:
· The Phone V2 uses an earthed 3-pin 60W external power supply unit.
· With IP Office 3.1, the message waiting indication (MWI) on each port can be configured for None, On, 51V Stepped,
81V, Line Reversal A or Line Reversal B. On uses the default determined by the system locale. Ports on a Phone V2
module can additionally be configured for 101V operation.
· These ports do not include a ringing capacitor. Therefore for connection to 4-wire analog phones, where this is a
requirement (typically the United Kingdom and New Zealand), connection should be via a Master socket containing
ringing capacitors.
· The DTE serial port on the rear of the module has been changed to a 9-pin D-type socket.
The module is supplied with a Earthed 3-Pin, 60W external power supply unit. The PSU has an
integral power cord for connection to the module's DC I/P socket. A locale specific IEC60320 C13
power cord for the external PSU is required but is not supplied with the module.
