Installing IP500/IP500 V2 Page 245
15-601042 Issue 28c (19 August 2013)IP Office 9.0
System Components: IP500 External Expansion Modules

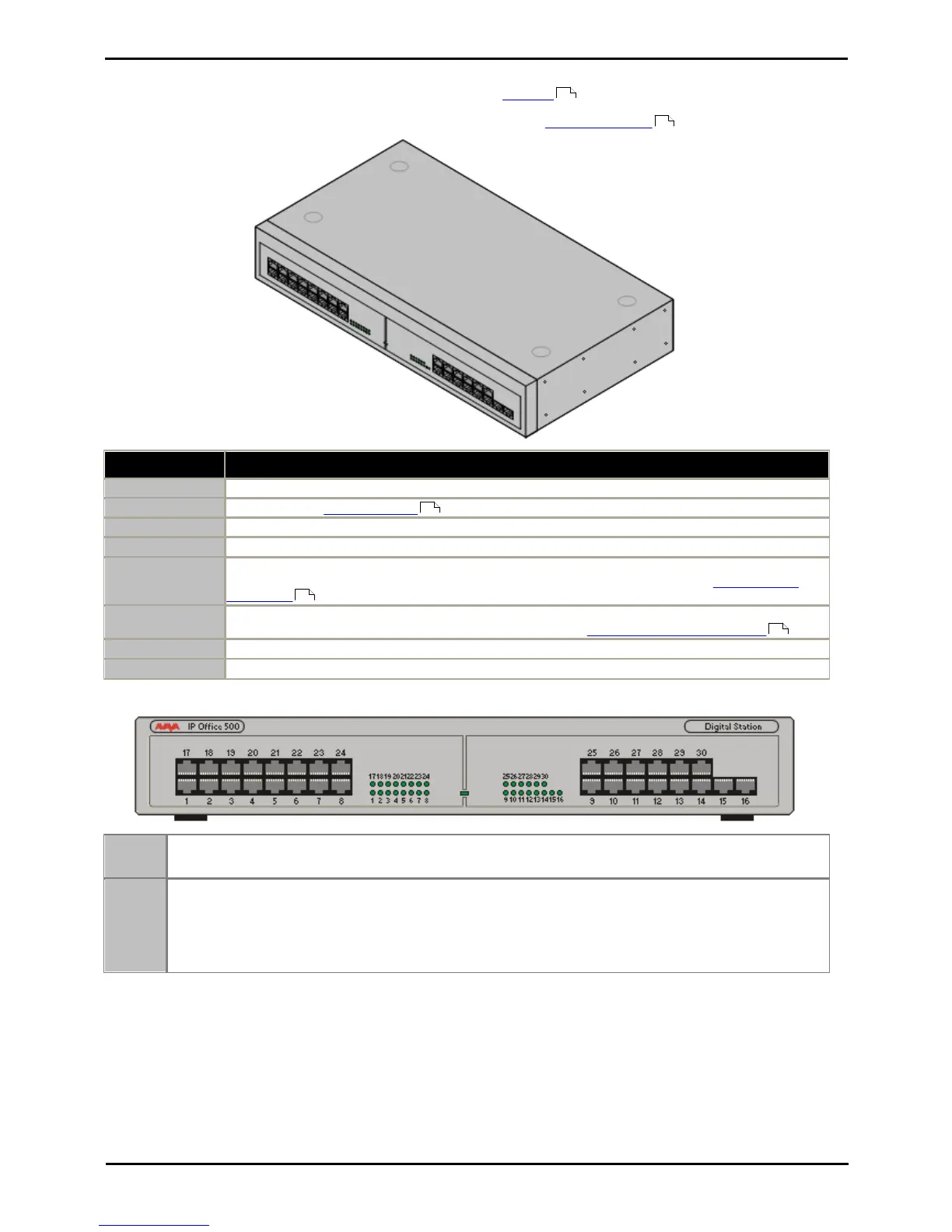

10.5.3 Digital Station 16/30
IP Office 500 Digital Station modules can be used to add additional DS ports to an IP Office system. The module is
available in 16 and 30 port variants, referred to as the IP500 DS16 and IP500 DS30 respectively. These modules are also
known as IP500 DS V2 modules. This module has been superseded by the IP500 DS16B/30B .
Supported in all IP Office locales .
IP Office core software level 2.1(31) minimum. Bin file = nadcpV2.bin.
Power supply unit (see below) and Expansion Interconnect cable.
The module is supplied with a Earthed 3-Pin, 60W external power supply module. The PSU has an
integral power cord for connection to the module's DC I/P socket. A locale specific IEC60320 C13
power cord for the external PSU is required but is not supplied with the module.
The module is designed as a free-standing module that can be stacked on or under other IP Office
modules. The module can be wall or rack mounted using the IPO IP500 RACK MNTG KIT V3 .
Width: 445mm/17.5". Depth: 245mm/9.7". Height: 71mm/2.8".
Unboxed: 3.5Kg/7.8lbs. Boxed: 4.8Kg/10.8lbs. (Based on DS30)
· Green Flashing = Phone detected.
· Green On = Phone active.
The center LED on all external expansion modules is used to indicate the overall state of the module as
follows:
· Red flashing = Module starting up/Loading firmware.
· Red on = Error.
· Green on = Module okay.
