10.15.12 LAN Port
These ports are found on IP Office control units. They are used for connection to IP LANs and IP devices.
All IP Office LAN ports are 10/100Mbps auto-sensing. Operation varies as follows:
· IP Office 500 / IP500 V2
The ports are full-duplex 10/100Mbps auto-sensing, MDI crossover ports. They form a managed layer 3 Ethernet
switch. The WAN port is not supported on systems running in IP Office Basic Edition - PARTNER® Mode, IP Office
Basic Edition - Norstar Mode or IP Office Basic Editions.
The LEDs are used as follows:
· Green: On = connected, Flashing = Activity.
· Yellow: On = 100Mbps, Off = 10Mbps.

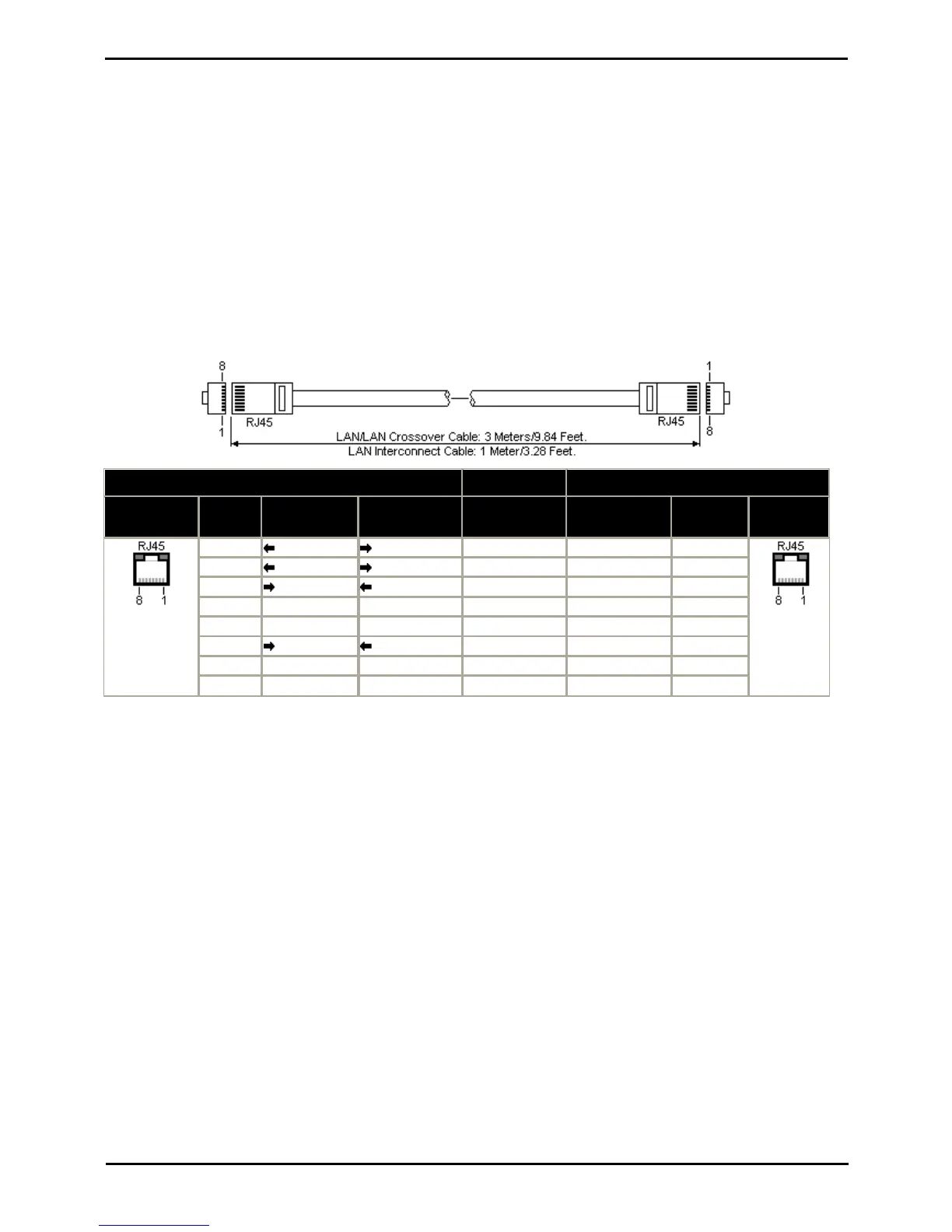

LAN Cables
These are CAT5 UTP cables for connection of various IP devices within the IP Office system.
IP Office
LAN
Pin
MDIX
(Normal)
MDI
(Crossover)
Wire
Standard/
Interconnect
Crossover
1
Rx-A.
Tx-A.
White/Orange
1
3
2
Rx-B.
Tx-B.
Orange/White
2
6
3
Tx-A.
Rx-A.
White/Green
3
1
4
Not used.
Not used.
Blue/White
4
4
5
Not used.
Not used.
White/Blue
5
5
6
Tx-B.
Rx-B.
Green/White
6
2
7
Not used.
Not used.
White/Brown
7
7
8
Not used.
Not used.
Brown/White
8
8
· SAP Code:
· LAN Cable - GREY: 700213481.
Standard straight LAN cable.
· LAN Crossover Cable - Black: 700213473.
LAN crossover cable.
