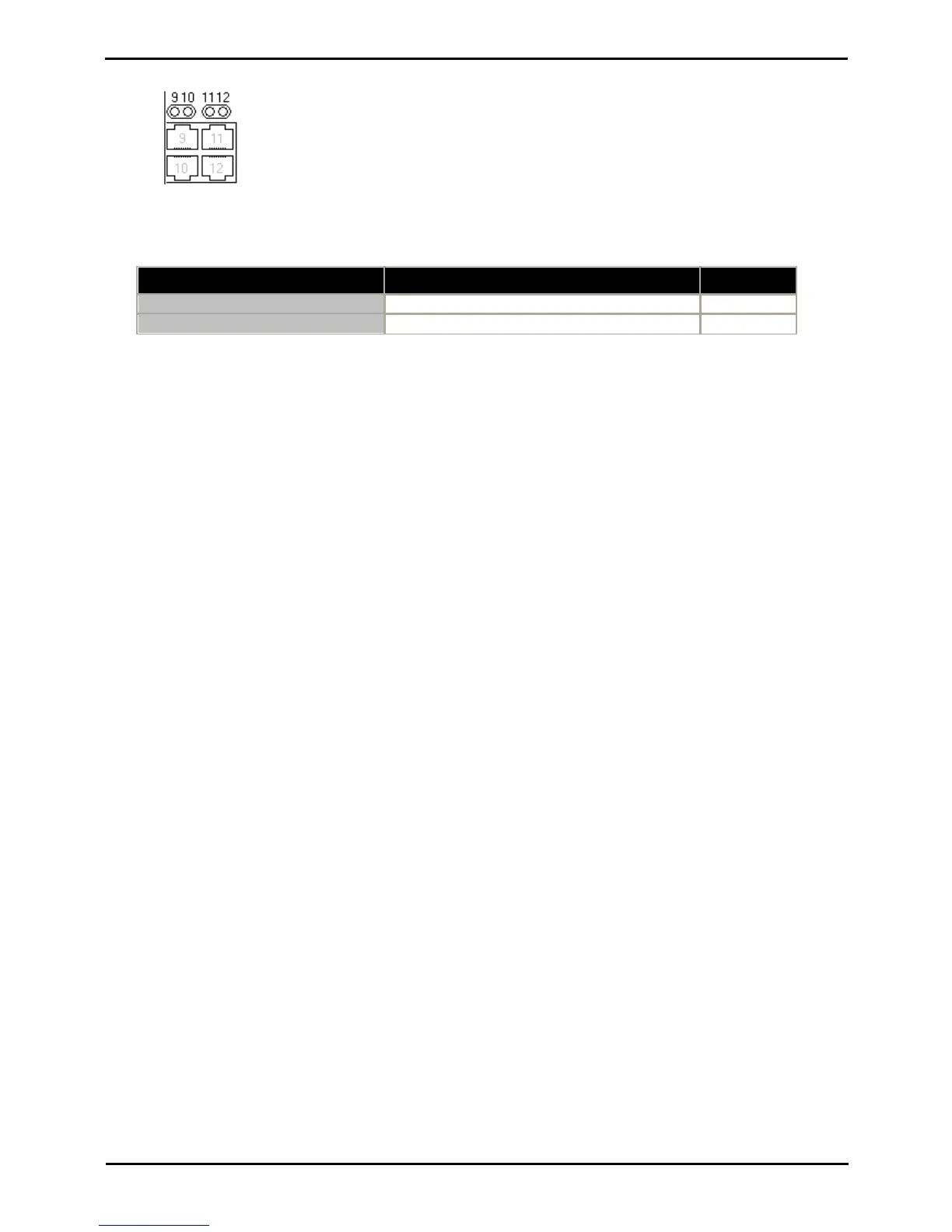

Daughter Card Ports (9-12)
The LEDs for ports 9 to 12 of the IP500 base card are used as follows:
· Green on = V1: Card installed. V2: Line connected to the port but idle.
· Green flashing = Line in use.
· LED 9 is also used for daughter card status.
· Red On = Error
· Red Slow Flash = Initializing.
· Red Flash every 5 seconds = Card
okay.
· Red Fast Flash = System shutdown.
Name
Description
SAP Code
IPO 500 Trnk Anlg 4 Uni
IP Office 500 Trunk Card Analog 4 Universal
700417405
IPO IP500 Trunk Card Anlg 4 V2
IP Office 500 Trunk Card Analog 4 Universal V2
700503164
