System Components: IP400 Expansion Modules

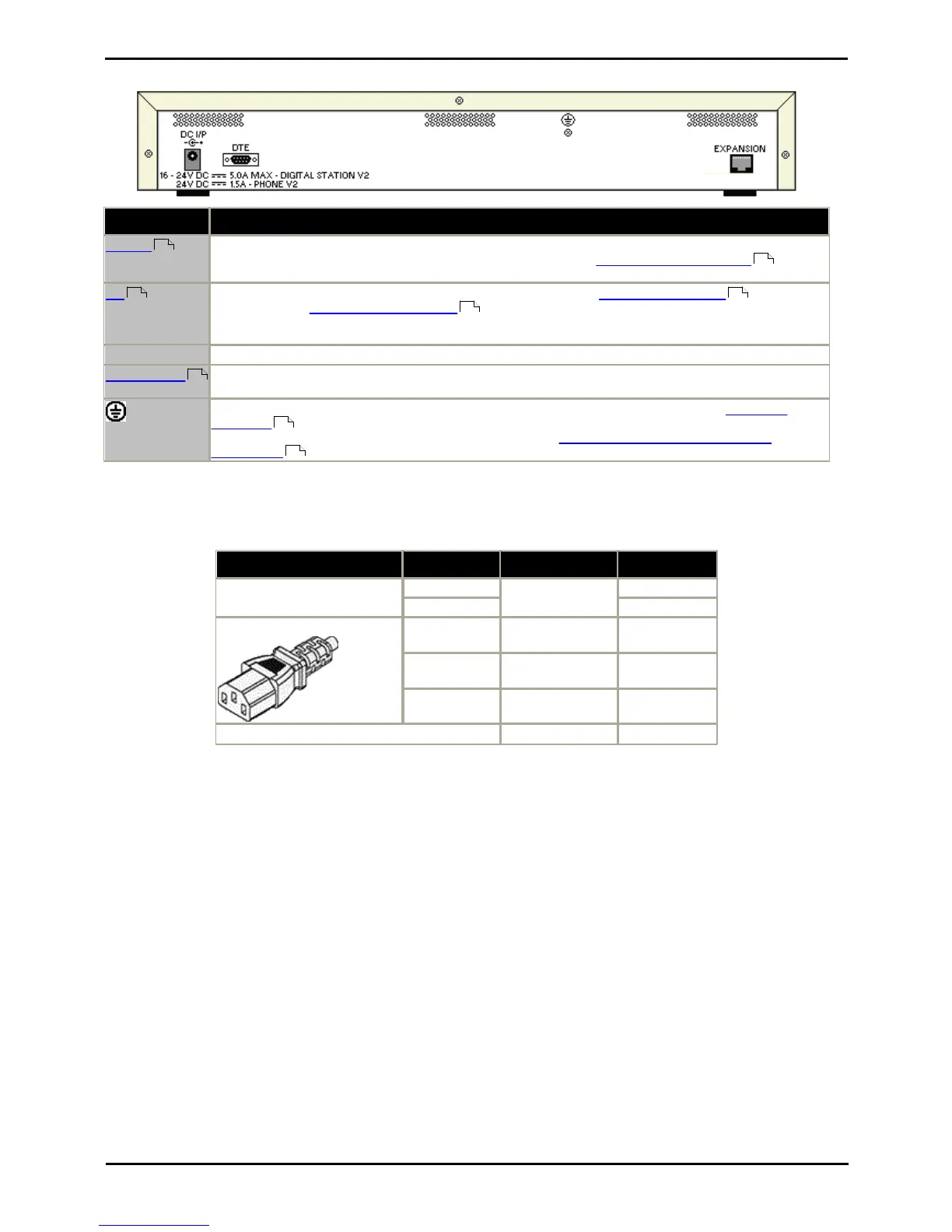

Module Rear
DC power input port. Used for connection of the power lead from an Avaya earthed 60W external power
supply unit supplied with the expansion module. A locale specific IEC60320 C13 power cord for the
external PSU is required but is not supplied with the module.
RJ45 socket. Digital Station port. Used for connection of IP Office supported DS phones . If
connected to an out-of-building extension , the connection must be made via additional IROB barrier
devices in addition to the buildings primary protection. The module must also be connected to a
protective ground.
9-Way D-Type socket. For Avaya use only.
RJ45 Socket. Used for direct connection to an Expansion port on an IP Office control unit using the
Expansion Interconnect cable supplied with the module.
Protective Ground point. Use of a protective ground is required for all installations, see Grounding
(Earthing) . Where the module is connected to analog extensions in another building, an IP Office
Phone Barrier Box V2 (101V) is required at both ends, see Lightning Protection/Out-of-Building
Connections .
Part Codes and Related Equipment
All expansion modules are supplied with a base software level and should be upgraded to match the core software of the
control unit in the IP Office system. Expansion modules include an external power supply unit (PSU) and an appropriate
interconnect cable. They do not include a locale specific power cord for the external PSU or any phone extension cables.
