Cards

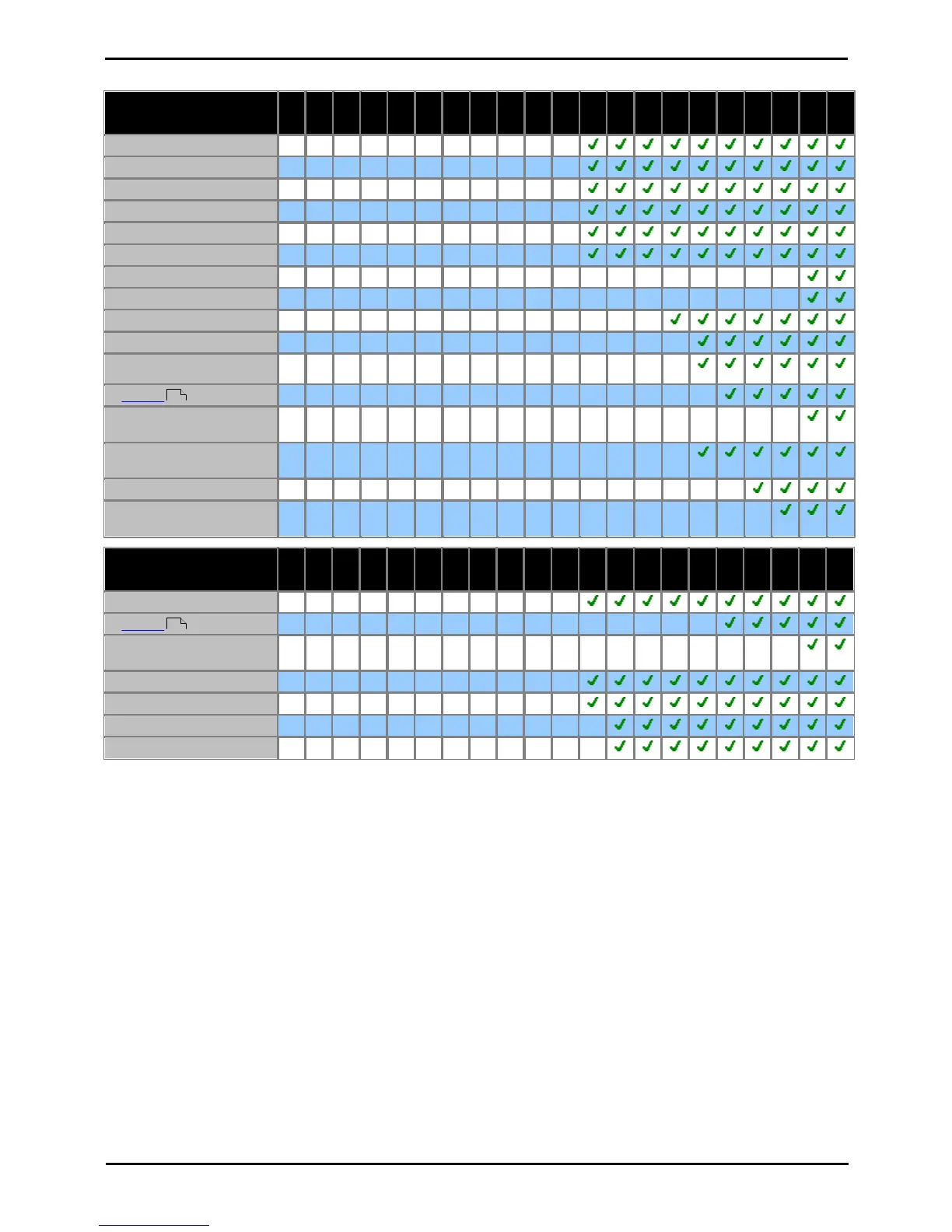

IP500 Base Cards
1.0
1.1
1.2
1.3
1.4
2.0
2.1
3.0
DT
3.0
3.1
3.2
4.0
4.1
4.2
5.0
6.0
6.1
7.0
8.0
8.1
9.0
IP500 Phone 2
–
–
–
–
–
–
–
–
–
–
–
IP500 Phone 8
–
–
–
–
–
–
–
–
–
–
–
IP500 Digital Station 8
–
–
–
–
–
–
–
–
–
–
–
IP500 Card Carrier
–
–
–
–
–
–
–
–
–
–
–
IP500 VCM 32
–
–
–
–
–
–
–
–
–
–
–
IP500 VCM 64
–
–
–
–
–
–
–
–
–
–
–
IP500 VCM 32 V2
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
IP500 VCM 64 V2
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
IP500 4-Port Expansion
–
–
–
–
–
–
–
–
–
–
–
–
–
–
IP500 ETR6
[1][2]
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
IP500 ATM4 Combo Card
[1]
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
" PCS04 and higher
[5]
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
IP500 ATM4 Combo Card
V2
[1]
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
IP500 BRI Combo Card
BRI
[1]
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
IP500 TCM 8
[1]
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
Unified Communications
Module
[1]
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
IP500 Trunk Cards
1.0
1.1
1.2
1.3
1.4
2.0
2.1
3.0
DT
3.0
3.1
3.2
4.0
4.1
4.2
5.0
6.0
6.1
7.0
8.0
8.1
9.0
IP500 Alog Trunk Card
–
–
–
–
–
–
–
–
–
–
–
" PCS10 and higher
[4]
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
IP500 Alog Trunk Card
V2
[1]
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
[3]
IP500 BRI 2 Trunk Card
–
–
–
–
–
–
–
–
–
–
–
IP500 BRI 4 Trunk Card
–
–
–
–
–
–
–
–
–
–
–
IP500 PRI-1U
–
–
–
–
–
–
–
–
–
–
–
IP500 PRI-2U
–
–
–
–
–
–
–
–
–
–
–
1.
IP500 V2 systems only.
2.
Only supported in IP Office Basic Edition - PARTNER® Mode or IP Office Basic Edition (U-Law) modes running in a
North American locale.
3.
Supported for 8.1 Feature Pack 1 and higher.
4.
These cards are support by IP Office Release 4.0 and higher. However, PCS10 and higher cards are only supported
in systems running IP Office Release 6.1(20), 7.0(12) or 8.0 and higher. Refer to IP Office Technical Tip 237.
5.
These cards are supported by IP Office Release 6.0 and higher. However, PCS04 and higher cards are only
supported in systems running IP Office Release 6.1(20), 7.0(12) or 8.0 and higher. Refer to IP Office Technical Tip
237.
