Attaching the Back Beam
Attaching the back Beam:
1 Place one of the Beams on the floor to determine how far apart the Legs need to be.
2 Attach the back beam by doing the following (see Figure 2):
• Put the first Beam across the back of the Legs. Align the pins on the underside of the Beams with the holes in the top of the
Legs. Be sure to orient the back Beam so that the pins on the top are closer to the center of the frame.
• Using four fasteners and washers (included) per mount, secure the Beam at each end. Do not tighten down fasteners all the
way until both beams and both Back Corner Brackets are in place.
3 Make sure the Beam sits flat on the top of the legs as shown in Figure 3. If necessary, move the legs in or out.
Have someone help hold the components while you position the Beams on the Legs and attach the fasteners.

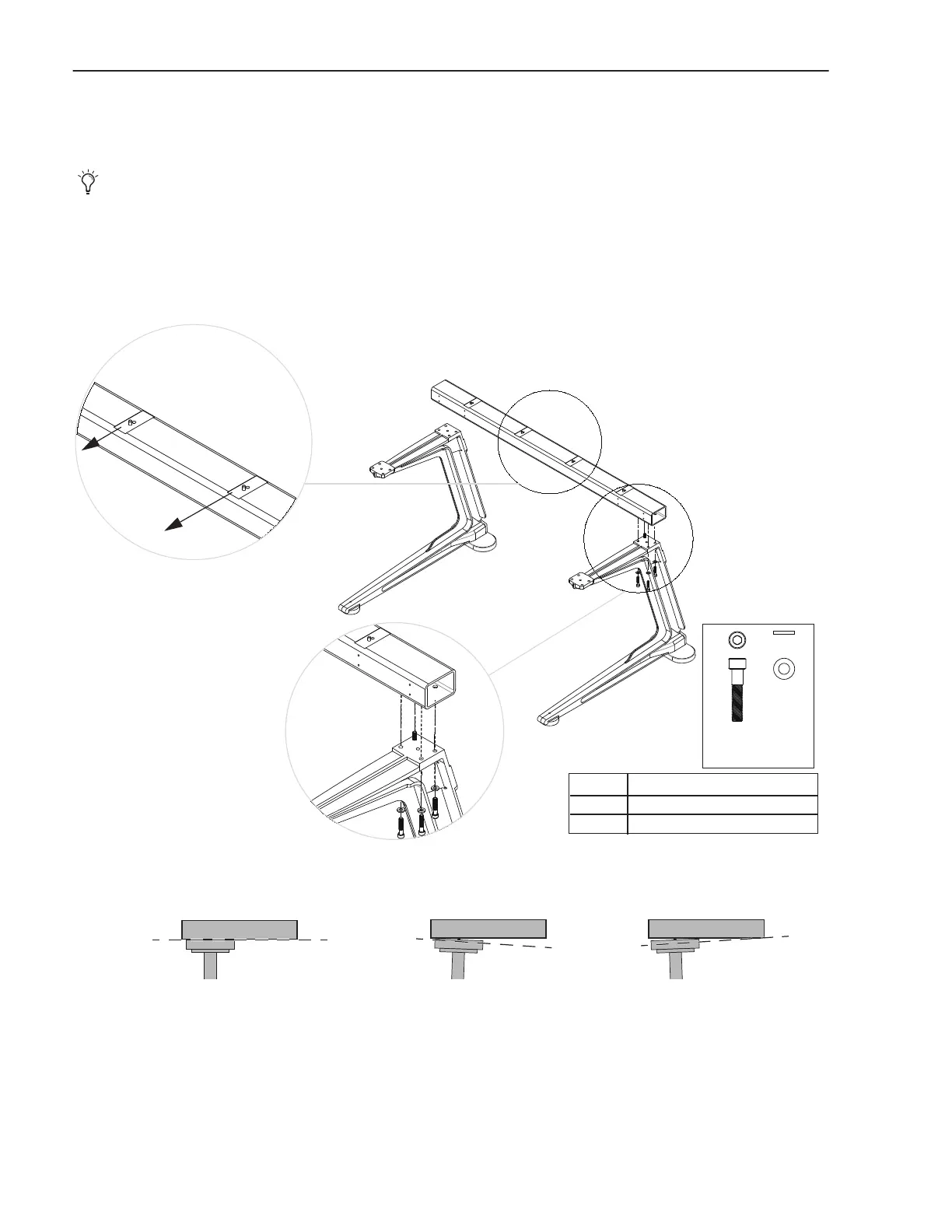

Figure 2. Attaching the back Beam to the Legs (orientation of pins shown at upper left)
Figure 3. Back view showing correct alignment of Beam on leg (at left), and incorrect alignment (middle, and right)
(Not to scale)
M8x30 (7760-30606-00)
Fastener
M8 WSHR (7760-30609-00)
Washer
6mm Hex
Tool
