Avid S6 is a modular, ergonomically designed control surface for Avid Pro Tools
®
and other EUCON
™
-compatible DAWs
(Digital Audio Workstations). S6 is flexible and scalable, letting you choose the best system for your needs. Many different con-
figurations are possible with different numbers of faders, knobs, and displays. All systems let you place the master section in any
position, left-to-right, within a frame. More fader strips, knobs-per-strip, or displays can be added later.
This guide explains how to assemble the system frame, how to install modules, and how to configure your S6 system.
Before You Begin
• Make sure your workspace is clean, dry, is well lighted, and has ample room to work.
•
Make sure you have a sturdy table or other flat surface, preferably with padding to protect the hardware. (If your system inc
ludes
Legs, you will use the Leg Frame instead of a table.)
•
Make sure you have another person available to help lift, turn, and move the system during and after assembly
.
•
Identify and organize the packages that make up your purchased system (see Figure 1) to simplify the assembly process. All re-
quired tools are in the Side Covers package (see “What’s Included” on page 2).
1– Master Module
Includes this guide and your Master Module.
2– Frame Components
Chassis kits, Side Covers, Bolster, and Rear Covers (number and type vary depending on configuration;
Leg Frames, Producers Desk, and other hardware Options not shown).
3– Power and Connectivity
Power Supply Units (PSUs), Ethernet switch(es), Power Strip, and Cable Sets.
4– Modules
Automation, Fader, Process, Knob, Display Modules or other modules (number and type vary per configuration).
Components and systems are heavy! Team lift, always. We recommend four people, one lifting each corner. Never attempt to move
systems that are five or more chassis in width. For step-by-step instructions to disassemble a system, see the Expanding an S6 Sys-
tem.pdf available for download from your Avid account. Also, never move or lift a chassis (any size) by the Side Covers, Bolster,
or Rear Covers (they can break). Move or lift while holding on to the metal chassis (frame) instead.

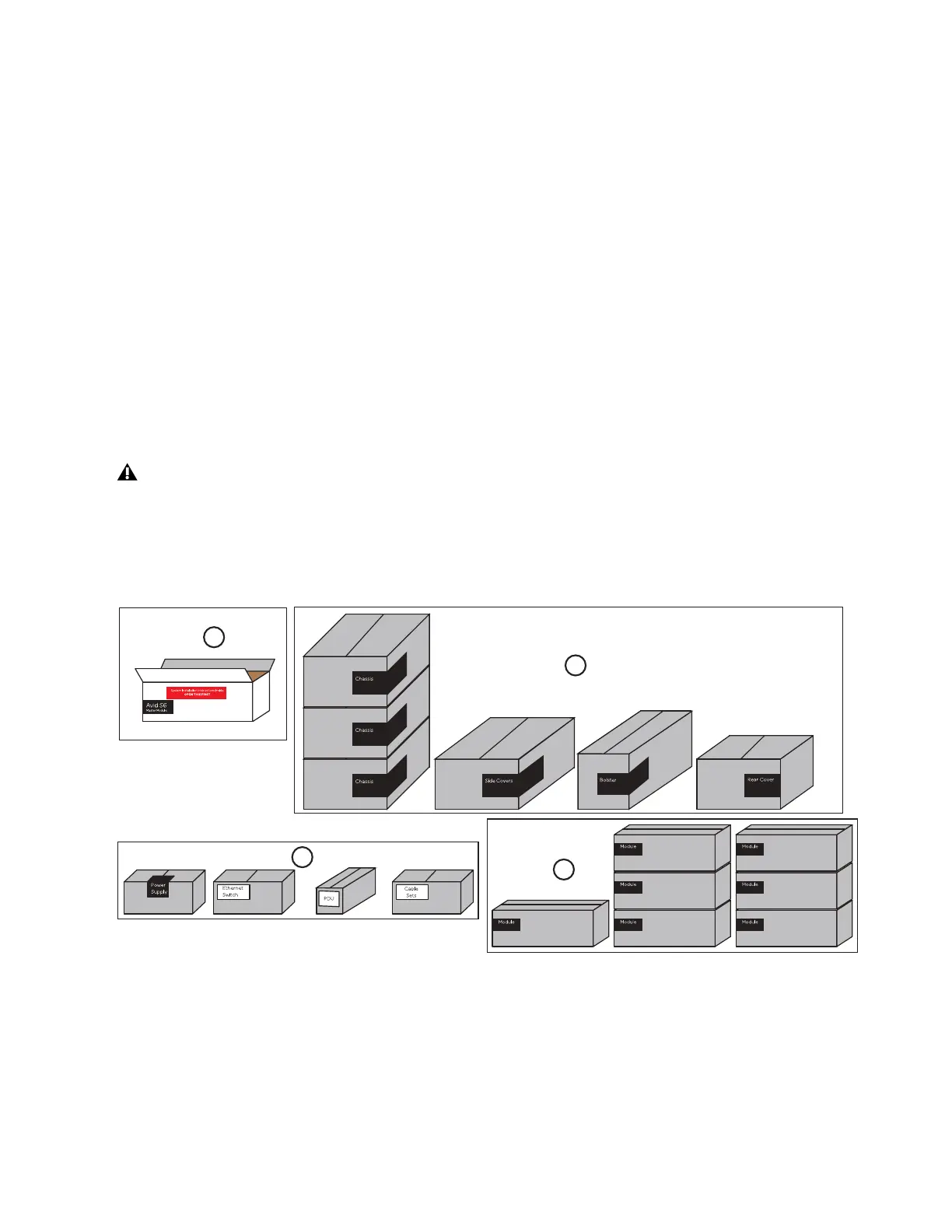

Figure 1. Packages organized before assembling an example S6 system
1
3
2
4
